FRIDGE::FridgeControl Interface Reference

import "acsexmplFridge.midl";

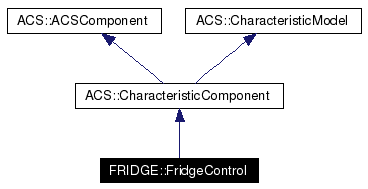

Inheritance diagram for FRIDGE::FridgeControl:

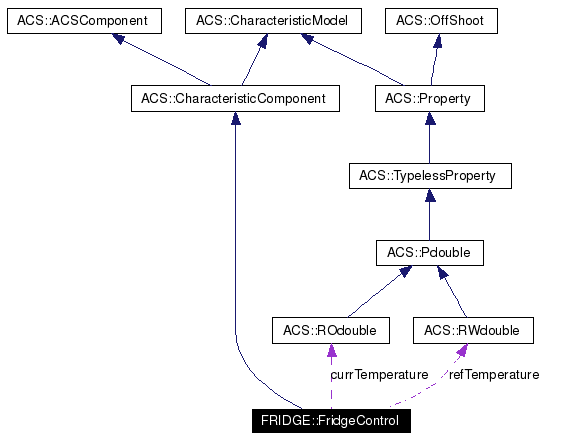

[legend]Collaboration diagram for FRIDGE::FridgeControl:

[legend]List of all members.

Public Types
typedef sequence< NestedFridgeEvent >	NestedFridgeEventSeq
Public Member Functions
void	on ()
void	off ()
oneway void	open ()
oneway void	close ()
Public Attributes
readonly attribute ACS::RWdouble	refTemperature
readonly attribute ROOnOffStates	powerStatus
readonly attribute ROOpClStates	doorStatus
readonly attribute ACS::ROdouble	currTemperature

---

Detailed Description

Interface FridgeControl is a semi-complicated interface in the fact that it utilizes enums along with double properties.

---

Member Typedef Documentation

typedef sequence<NestedFridgeEvent> FRIDGE::FridgeControl::NestedFridgeEventSeq

---

Member Function Documentation

oneway void FRIDGE::FridgeControl::close (   )

Closes the fridge's door as a pure CORBA asynchronous method. As soon as a client invokes this method, control is returned. Returns: void * *

void FRIDGE::FridgeControl::off (   )

Simply turns the fridge off. Returns: void * *

void FRIDGE::FridgeControl::on (   )

Simply turns the fridge on. Returns: void * *

oneway void FRIDGE::FridgeControl::open (   )

Opens the fridge's door as a pure CORBA asynchronous method. As soon as a client invokes this method, control is returned. Returns: void * *

---

Member Data Documentation

readonly attribute ACS::ROdouble FRIDGE::FridgeControl::currTemperature

This property is the fridge's actual temperature.

readonly attribute ROOpClStates FRIDGE::FridgeControl::doorStatus

The fridge's door is either open or closed.

readonly attribute ROOnOffStates FRIDGE::FridgeControl::powerStatus

The fridge is either on or off.

readonly attribute ACS::RWdouble FRIDGE::FridgeControl::refTemperature

This property is the temperature we want the fridge to be.

---

The documentation for this interface was generated from the following file:

• acsexmplFridge.midl

---
