ACSCOURSE_MOUNT::Mount5 Interface Reference

import "acscourseMount.idl";

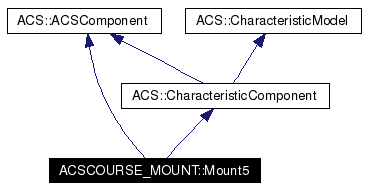

Inheritance diagram for ACSCOURSE_MOUNT::Mount5:

Inheritance graph
[legend]

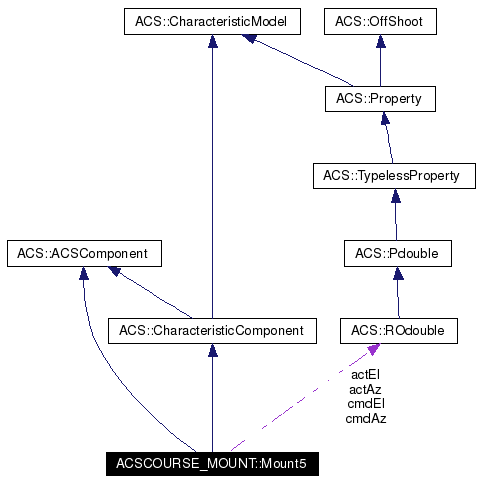

Collaboration diagram for ACSCOURSE_MOUNT::Mount5:

Collaboration graph
[legend]
List of all members.

Public Member Functions

void objfix (in double az, in double elev) raises (ACSErrTypeACSCourse::TargetOutOfRangeEx)
void objfix (in double az, in double elev)

Public Attributes

readonly attribute ACS::ROdouble cmdAz
readonly attribute ACS::ROdouble cmdEl
readonly attribute ACS::ROdouble actAz
readonly attribute ACS::ROdouble actEl

Detailed Description

Nearly identical to Mount1 except for the fact that this example publishes/consumes events from an event channel and that exception handling has been ommitted.

Member Function Documentation

void ACSCOURSE_MOUNT::Mount5::objfix (  in double  az,
in double  elev
)


(Pre)sets a new non-moving position for the antenna. The position coordinates are given in azimuth and elevation.

Parameters:
az position azimuth (degree)
elev position elevation (degree) *
*

void ACSCOURSE_MOUNT::Mount5::objfix (  in double  az,
in double  elev
)  raises (ACSErrTypeACSCourse::TargetOutOfRangeEx)


(Pre)sets a new non-moving position for the antenna. The position coordinates are given in azimuth and elevation. A callback is used to inform the caller when the antenna reaches the new position. If a new position is given before the previous one is reached then the previous callback immediately receives "aborted".

Parameters:
az position azimuth (degree)
elev position elevation (degree) *
*

Member Data Documentation

readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount5::actAz


Current actual azimuth (degree).

readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount5::actEl


Current actual elevation (degree).

readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount5::cmdAz


Current commanded azimuth (degree).

readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount5::cmdEl


Current commanded elevation (degree).

The documentation for this interface was generated from the following files:
