ACSCOURSE_MOUNT::Mount3 Interface Reference

import "acscourseMount.idl";

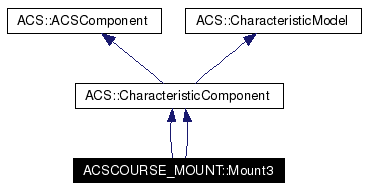

Inheritance diagram for ACSCOURSE_MOUNT::Mount3:

Inheritance graph
[legend]

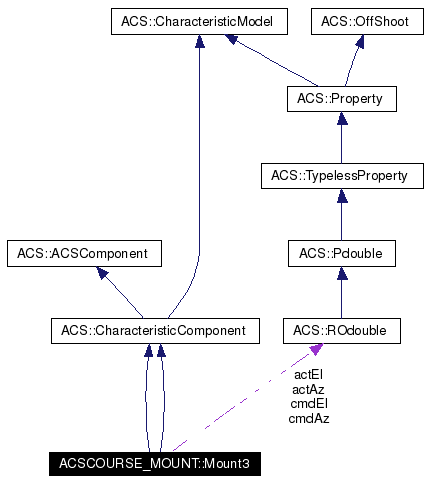

Collaboration diagram for ACSCOURSE_MOUNT::Mount3:

Collaboration graph
[legend]
List of all members.

Public Types

enum  coordType { Mean, Apparent }

Public Member Functions

void objfix (in double az, in double elev) raises (ACSErrTypeACSCourse::TargetOutOfRangeEx)
void obstar (in double ra, in double dec, in double pmRa, in double pmDec, in double radVel, in double par, in coordType type)
void objfix (in double az, in double elev)

Public Attributes

readonly attribute ACS::ROdouble cmdAz
readonly attribute ACS::ROdouble cmdEl
readonly attribute ACS::ROdouble actAz
readonly attribute ACS::ROdouble actEl

Detailed Description

Here we have a "complete" interface, including exceptions This time all properties are read only, because we set the values of azimuth and elevation via commands.

Member Enumeration Documentation

enum ACSCOURSE_MOUNT::Mount3::coordType


Enumeration values:
Mean
Apparent

Member Function Documentation

void ACSCOURSE_MOUNT::Mount3::objfix (  in double  az,
in double  elev
)


(Pre)sets a new non-moving position for the antenna. The position coordinates are given in azimuth and elevation. A callback is used to inform the caller when the antenna reaches the new position. If a new position is given before the previous one is reached then the previous callback immediately receives "aborted".

Parameters:
az position azimuth (degree)
elev position elevation (degree) *
*

void ACSCOURSE_MOUNT::Mount3::objfix (  in double  az,
in double  elev
)  raises (ACSErrTypeACSCourse::TargetOutOfRangeEx)


(Pre)sets a new non-moving position for the antenna. The position coordinates are given in azimuth and elevation. A callback is used to inform the caller when the antenna reaches the new position. If a new position is given before the previous one is reached then the previous callback immediately receives "aborted".

Parameters:
az position azimuth (degree)
elev position elevation (degree) *
*

void ACSCOURSE_MOUNT::Mount3::obstar (  in double  ra,
in double  dec,
in double  pmRa,
in double  pmDec,
in double  radVel,
in double  par,
in coordType  type
)


(Pre)sets a new equatorial source for the antenna to track. The source position is given in geocentric equatorial J2000 coordinates.

Parameters:
ra source right ascension (hour)
dec source declination (hour)
pmRa source sky proper motion in right ascension (arc-sec/year)
pmDec source sky proper motion in declination (arc-sec/year)
radVel source radial velocity (kilometer/sec)
par source parallax correction (arc-sec)
type Apparent or Mean *
*

Member Data Documentation

readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount3::actAz


Current actual azimuth (degree).

readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount3::actEl


Current actual elevation (degree).

readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount3::cmdAz


Current commanded azimuth (degree).

readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount3::cmdEl


Current commanded elevation (degree).

The documentation for this interface was generated from the following files:
