ACSCOURSE_MOUNT::Mount2 Interface Reference

import "acscourseMount.idl";

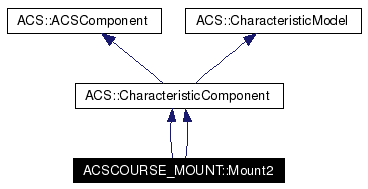

Inheritance diagram for ACSCOURSE_MOUNT::Mount2:

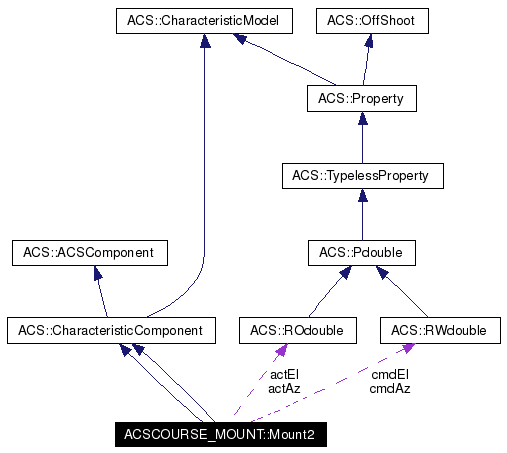

[legend]Collaboration diagram for ACSCOURSE_MOUNT::Mount2:

[legend]List of all members.

Public Member Functions
void	objfix (in double az, in double elev)
void	objfix (in double az, in double elev)
Public Attributes
readonly attribute ACS::RWdouble	cmdAz
readonly attribute ACS::RWdouble	cmdEl
readonly attribute ACS::ROdouble	actAz
readonly attribute ACS::ROdouble	actEl

---

Detailed Description

This adds properties to the Mount1 example. With properties we can now have monitors, alarms and many additional features. We need now to inherit from the more complex ACS::CharacteristicComponent interface For this example we have 2 read only and to read/write properties.

---

Member Function Documentation

void ACSCOURSE_MOUNT::Mount2::objfix (  in double  az, in double  elev )

(Pre)sets a new non-moving position for the antenna. The position coordinates are given in azimuth and elevation. Parameters: az  position azimuth (degree) elev  position elevation (degree) * *

void ACSCOURSE_MOUNT::Mount2::objfix (  in double  az, in double  elev )

(Pre)sets a new non-moving position for the antenna. The position coordinates are given in azimuth and elevation. Parameters: az  position azimuth (degree) elev  position elevation (degree) * *

---

Member Data Documentation

readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount2::actAz

Current actual azimuth (degree).

readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount2::actEl

Current actual elevation (degree).

readonly attribute ACS::RWdouble ACSCOURSE_MOUNT::Mount2::cmdAz

Current commanded azimuth (degree).

readonly attribute ACS::RWdouble ACSCOURSE_MOUNT::Mount2::cmdEl

Current commanded elevation (degree).

---

The documentation for this interface was generated from the following files:

• acscourse/ws/idl/acscourseMount.idl
• XmlIdl/idl/acscourseMount.idl

---
