import "bulkDataSender.idl";

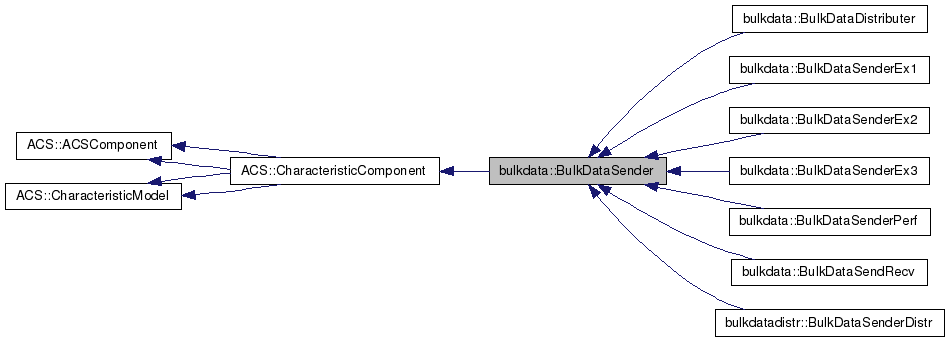

Inheritance diagram for bulkdata::BulkDataSender:

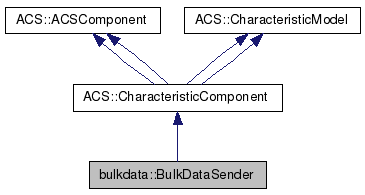

Collaboration diagram for bulkdata::BulkDataSender:
Public Member Functions | |
| void | connect (in BulkDataReceiver receiver) raises (ACSBulkDataError::AVConnectErrorEx) |
| void | disconnect () raises (ACSBulkDataError::AVDisconnectErrorEx) |
| void | startSend () raises (ACSBulkDataError::AVStartSendErrorEx) |
| void | paceData () raises (ACSBulkDataError::AVPaceDataErrorEx) |
| void | stopSend () raises (ACSBulkDataError::AVStopSendErrorEx) |
Detailed Description
Defines the interface for the Bulk Data Sender Component.
Member Function Documentation
| void bulkdata::BulkDataSender::connect | ( | in BulkDataReceiver | receiver | ) | raises (ACSBulkDataError::AVConnectErrorEx) |
Initializes the TAO A/V, and creates the Sender Stream End Point and Flow End Point. It retrieves the Receiver Stream End Point and binds the two streams.
- Parameters:
-
receiver reference of the Receiver Component.
- Returns:
- void
| void bulkdata::BulkDataSender::disconnect | ( | ) | raises (ACSBulkDataError::AVDisconnectErrorEx) |
Disconnect // TBD
- Returns:
- void
| void bulkdata::BulkDataSender::paceData | ( | ) | raises (ACSBulkDataError::AVPaceDataErrorEx) |
Sends data to the Receiver calling the receive_frame() method on the Receiver side. This method must be overriden by the user to send his own data.
- Parameters:
-
size buffer size of the sent data.
- Returns:
- void
| void bulkdata::BulkDataSender::startSend | ( | ) | raises (ACSBulkDataError::AVStartSendErrorEx) |
Calls the Receiver handle_start() method once the connection is established.
- Returns:
- void
| void bulkdata::BulkDataSender::stopSend | ( | ) | raises (ACSBulkDataError::AVStopSendErrorEx) |
Calls the Receiver handle_stop() method.
- Returns:
- void
The documentation for this interface was generated from the following file:
