ACS::Ppattern Interface Reference

import "baci.idl";

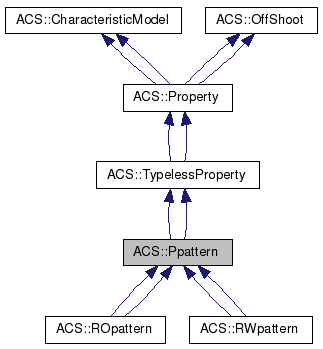

Inheritance diagram for ACS::Ppattern:

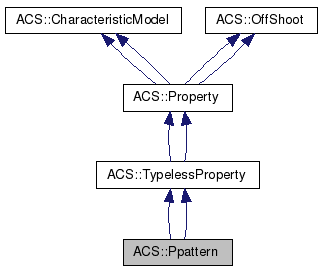

Collaboration diagram for ACS::Ppattern:

List of all members.

Public Member Functions
pattern	get_sync (out ACSErr::Completion c)
void	get_async (in CBpattern cb, in CBDescIn desc)
long	get_history (in long n_last_values, out patternSeq vs, out TimeSeq ts)
Monitorpattern	create_monitor (in CBpattern cb, in CBDescIn desc)
Monitorpattern	create_postponed_monitor (in Time start_time, in CBpattern cb, in CBDescIn desc)
pattern	get_sync (out ACSErr::Completion c)
void	get_async (in CBpattern cb, in CBDescIn desc)
long	get_history (in long n_last_values, out patternSeq vs, out TimeSeq ts)
Monitorpattern	create_monitor (in CBpattern cb, in CBDescIn desc)
Monitorpattern	create_postponed_monitor (in Time start_time, in CBpattern cb, in CBDescIn desc)
Public Attributes
readonly attribute TimeInterval	default_timer_trigger
readonly attribute TimeInterval	min_timer_trigger
readonly attribute pattern	default_value
readonly attribute stringSeq	bitDescription
readonly attribute ConditionSeq	whenSet
readonly attribute ConditionSeq	whenCleared

---

Detailed Description

The pattern Property has no monitor with value trigger, as a difference of values makes no sense. However, it has three other attributes that provide sequences that describe the meaning of each bit in the pattern: bitDescription, whenSet and whenCleared. The latter two keep one value of type condition per bit, which is an enum that describes the meaning of a bit in the status being set (to one) or cleared (to zero). The values correspond to usual colors of status LEDs.

The rest of the interface is equivalent to the Pdouble property.

---

Member Function Documentation

Monitorpattern ACS::Ppattern::create_monitor	(	in CBpattern	cb,
		in CBDescIn	desc
	)

3AC90A2700A1

Monitorpattern ACS::Ppattern::create_monitor	(	in CBpattern	cb,
		in CBDescIn	desc
	)

3AC90A2700A1

Monitorpattern ACS::Ppattern::create_postponed_monitor	(	in Time	start_time,
		in CBpattern	cb,
		in CBDescIn	desc
	)

3AC90A2700AB

Monitorpattern ACS::Ppattern::create_postponed_monitor	(	in Time	start_time,
		in CBpattern	cb,
		in CBDescIn	desc
	)

3AC90A2700AB

void ACS::Ppattern::get_async	(	in CBpattern	cb,
		in CBDescIn	desc
	)

3AC90A270084

void ACS::Ppattern::get_async	(	in CBpattern	cb,
		in CBDescIn	desc
	)

3AC90A270084

long ACS::Ppattern::get_history	(	in long	n_last_values,
		out patternSeq	vs,
		out TimeSeq	ts
	)

3AC90A270096

long ACS::Ppattern::get_history	(	in long	n_last_values,
		out patternSeq	vs,
		out TimeSeq	ts
	)

3AC90A270096

pattern ACS::Ppattern::get_sync

(

out ACSErr::Completion

c

)

3AC90A270082

pattern ACS::Ppattern::get_sync

(

out ACSErr::Completion

c

)

3AC90A270082

---

Member Data Documentation

readonly attribute stringSeq ACS::Ppattern::bitDescription

one description for each bit

readonly attribute TimeInterval ACS::Ppattern::default_timer_trigger

readonly attribute pattern ACS::Ppattern::default_value

readonly attribute TimeInterval ACS::Ppattern::min_timer_trigger

readonly attribute ConditionSeq ACS::Ppattern::whenCleared

for each bit, defines the colour of LED when bit is cleared

readonly attribute ConditionSeq ACS::Ppattern::whenSet

for each bit, defines the colour of LED when bit is set

---

The documentation for this interface was generated from the following files:

• lcu/idl/baci.idl
• ws/idl/baci.idl
