import "acssamp.idl";

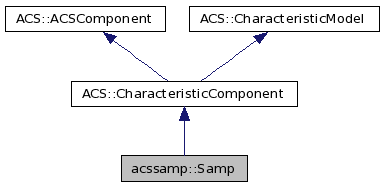

Inheritance diagram for acssamp::Samp:
Collaboration diagram for acssamp::Samp:
Public Member Functions | |
| SampObj | initSampObj (in string name, in string property, in ACS::TimeInterval frequency, in ACS::TimeInterval reportRate) raises (ACSErrTypeCommon::OutOfBoundsEx, ACSErrTypeCommon::MemoryFaultEx, ACSErrTypeCommon::CORBAProblemEx, ACSErrTypeCommon::TypeNotSupportedEx, ACSErrTypeCommon::CouldntAccessPropertyEx, ACSErrTypeCommon::CouldntAccessComponentEx, ACSErrTypeCommon::CouldntCreateObjectEx) |
Detailed Description
Defines the interface for sampling COBs.
Member Function Documentation
| SampObj acssamp::Samp::initSampObj | ( | in string | name, | |
| in string | property, | |||
| in ACS::TimeInterval | frequency, | |||
| in ACS::TimeInterval | reportRate | |||
| ) | raises (ACSErrTypeCommon::OutOfBoundsEx, ACSErrTypeCommon::MemoryFaultEx, ACSErrTypeCommon::CORBAProblemEx, ACSErrTypeCommon::TypeNotSupportedEx, ACSErrTypeCommon::CouldntAccessPropertyEx, ACSErrTypeCommon::CouldntAccessComponentEx, ACSErrTypeCommon::CouldntCreateObjectEx) |
Activate a new CORBA object; it allows to sample a specific property with a user-defined frequency. Collected data are then sent to the Notification channel (ready to be consumed).
- Parameters:
-
name component to be sampled (e.g. LAMP1) property property to be sampled (e.g brightness) frequency sampling frequency: period between two consecutive sampling (units are 100ns; e.g. 1000000 means 0.1 sec i.e. 10 sample per second) reportRate number of second the process should buffer before actually sending (notifying) data (units are 100ns; e.g. 10000000 means collect data for 1 second)
- Returns:
- SampObj_ptr returns a pointer to the activated sampling object. This pointer must be used for subsequent start/stop/destroy of the actual sampling.
The documentation for this interface was generated from the following file:
