import "acsexmplMount.idl";

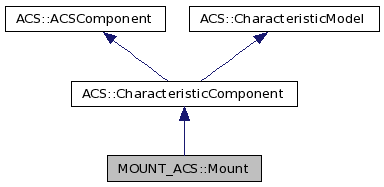

Inheritance diagram for MOUNT_ACS::Mount:

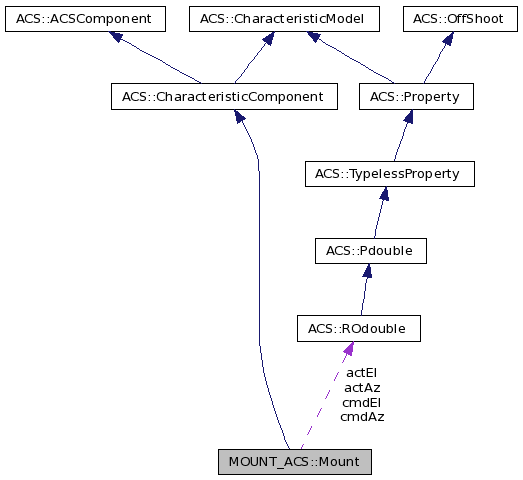

Collaboration diagram for MOUNT_ACS::Mount:

Public Types
enum	coordType { Mean, Apparent }
Public Member Functions
void	obstar (in double ra, in double dec, in double pmRa, in double pmDec, in double radVel, in double par, in coordType type, in ACS::CBvoid callBack, in ACS::CBDescIn desc)
void	objfix (in double az, in double elev, in ACS::CBvoid callBack, in ACS::CBDescIn desc)
Public Attributes
readonly attribute ACS::ROdouble	cmdAz
readonly attribute ACS::ROdouble	cmdEl
readonly attribute ACS::ROdouble	actAz
readonly attribute ACS::ROdouble	actEl

Detailed Description

Defines the interface for controlling and monitoring a single antenna's position.

Member Enumeration Documentation

enum MOUNT_ACS::Mount::coordType

The antenna can be controlled in one of those two modes.

Enumerator:

Mean
Apparent

Member Function Documentation

void MOUNT_ACS::Mount::objfix	(	in double	az,
		in double	elev,
		in ACS::CBvoid	callBack,
		in ACS::CBDescIn	desc
	)

(Pre)sets a new non-moving position for the antenna. The position coordinates are given in azimuth and elevation. A callback is used to inform the caller when the antenna reaches the new position. If a new position is given before the previous one is reached then the previous callback immediately receives "aborted".

Parameters:

	az	position azimuth (degree)
	elev	position elevation (degree)
	callBack	callback when position is reached
	desc	is used to negotiate timeouts between client and sever See the BACI specifications for more details.

void MOUNT_ACS::Mount::obstar	(	in double	ra,
		in double	dec,
		in double	pmRa,
		in double	pmDec,
		in double	radVel,
		in double	par,
		in coordType	type,
		in ACS::CBvoid	callBack,
		in ACS::CBDescIn	desc
	)

(Pre)sets a new equatorial source for the antenna to track. The source position is given in geocentric equatorial J2000 coordinates. A callback is used to inform the caller when the antenna reaches the new position. If a new position is given before the previous one is reached then the previous callback immediately receives "aborted".

Parameters:

	ra	source right ascension (hour)
	dec	source declination (hour)
	pmRa	source sky proper motion in right ascension (arc-sec/year)
	pmDec	source sky proper motion in declination (arc-sec/year)
	radVel	source radial velocity (kilometer/sec)
	par	source parallax correction (arc-sec)
	type	Apparent or Mean
	callBack	callback when position is reached
	desc	is used to negotiate timeouts between client and sever See the BACI specifications for more details.
