import "acscourseMount.idl";

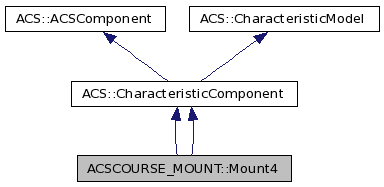

Inheritance diagram for ACSCOURSE_MOUNT::Mount4:

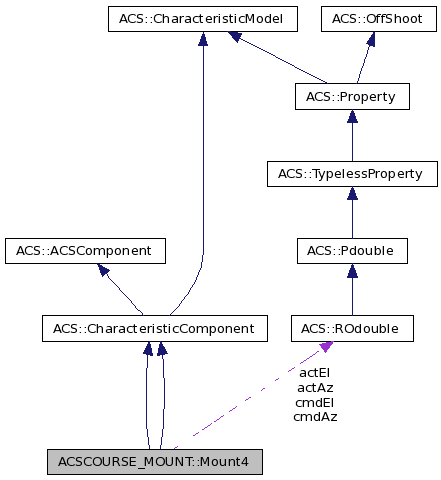

Collaboration diagram for ACSCOURSE_MOUNT::Mount4:

Public Types
enum	coordType { Mean, Apparent }
Public Member Functions
void	objfix (in double az, in double elev)
void	objfix_async (in double az, in double elev, in ACS::CBvoid callBack, in ACS::CBDescIn desc)
void	obstar (in double ra, in double dec, in double pmRa, in double pmDec, in double radVel, in double par, in coordType type)
void	obstar_async (in double ra, in double dec, in double pmRa, in double pmDec, in double radVel, in double par, in coordType type, in ACS::CBvoid callBack, in ACS::CBDescIn desc)
void	objfix (in double az, in double elev)
void	objfix_async (in double az, in double elev, in ACS::CBvoid callBack, in ACS::CBDescIn desc)
Public Attributes
readonly attribute ACS::ROdouble	cmdAz
readonly attribute ACS::ROdouble	cmdEl
readonly attribute ACS::ROdouble	actAz
readonly attribute ACS::ROdouble	actEl

Detailed Description

Defines the interface for controlling and monitoring the antenna position. This interface also includes aynchronous methods.

Member Enumeration Documentation

enum ACSCOURSE_MOUNT::Mount4::coordType

Enumerator:

Mean
Apparent

Member Function Documentation

void ACSCOURSE_MOUNT::Mount4::objfix	(	in double	az,
		in double	elev
	)

(Pre)sets a new non-moving position for the antenna. The position coordinates are given in azimuth and elevation. Synchronous interface

Parameters:

	az	position azimuth (degree)
	elev	position elevation (degree)

void ACSCOURSE_MOUNT::Mount4::objfix	(	in double	az,
		in double	elev
	)

(Pre)sets a new non-moving position for the antenna. The position coordinates are given in azimuth and elevation. Synchronous interface

Parameters:

	az	position azimuth (degree)
	elev	position elevation (degree)

void ACSCOURSE_MOUNT::Mount4::objfix_async	(	in double	az,
		in double	elev,
		in ACS::CBvoid	callBack,
		in ACS::CBDescIn	desc
	)

(Pre)sets a new non-moving position for the antenna. The position coordinates are given in azimuth and elevation. Asynchonous interface. A callback is used to inform the caller when the antenna reaches the new position. If a new position is given before the previous one is reached then the previous callback immediately receives "aborted".

Parameters:

	az	position azimuth (degree)
	elev	position elevation (degree)
	callBack	callback when position is reached
	desc	is used to negotiate timeouts between client and sever

void ACSCOURSE_MOUNT::Mount4::objfix_async	(	in double	az,
		in double	elev,
		in ACS::CBvoid	callBack,
		in ACS::CBDescIn	desc
	)

(Pre)sets a new non-moving position for the antenna. The position coordinates are given in azimuth and elevation. Asynchonous interface. A callback is used to inform the caller when the antenna reaches the new position. If a new position is given before the previous one is reached then the previous callback immediately receives "aborted".

Parameters:

	az	position azimuth (degree)
	elev	position elevation (degree)
	callBack	callback when position is reached
	desc	is used to negotiate timeouts between client and sever

void ACSCOURSE_MOUNT::Mount4::obstar	(	in double	ra,
		in double	dec,
		in double	pmRa,
		in double	pmDec,
		in double	radVel,
		in double	par,
		in coordType	type
	)

(Pre)sets a new equatorial source for the antenna to track. The source position is given in geocentric equatorial J2000 coordinates. Synchronous interface

Parameters:

	ra	source right ascension (hour)
	dec	source declination (hour)
	pmRa	source sky proper motion in right ascension (arc-sec/year)
	pmDec	source sky proper motion in declination (arc-sec/year)
	radVel	source radial velocity (kilometer/sec)
	par	source parallax correction (arc-sec)
	type	Apparent or Mean

void ACSCOURSE_MOUNT::Mount4::obstar_async	(	in double	ra,
		in double	dec,
		in double	pmRa,
		in double	pmDec,
		in double	radVel,
		in double	par,
		in coordType	type,
		in ACS::CBvoid	callBack,
		in ACS::CBDescIn	desc
	)

(Pre)sets a new equatorial source for the antenna to track. The source position is given in geocentric equatorial J2000 coordinates. Asynchronous interface A callback is used to inform the caller when the antenna reaches the new position. If a new position is given before the previous one is reached then the previous callback immediately receives "aborted".

Parameters:

	ra	source right ascension (hour)
	dec	source declination (hour)
	pmRa	source sky proper motion in right ascension (arc-sec/year)
	pmDec	source sky proper motion in declination (arc-sec/year)
	radVel	source radial velocity (kilometer/sec)
	par	source parallax correction (arc-sec)
	type	Apparent or Mean
	callBack	callback when position is reached
	desc	is used to negotiate timeouts between client and sever

Member Data Documentation

readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount4::actAz

Current actual azimuth (degree).

readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount4::actEl

Current actual elevation (degree).

readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount4::cmdAz

Current commanded azimuth (degree).

readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount4::cmdEl

Current commanded elevation (degree).
