ACSCOURSE_MOUNT::Mount3 Interface Reference

import "acscourseMount.idl";

Inheritance diagram for ACSCOURSE_MOUNT::Mount3:

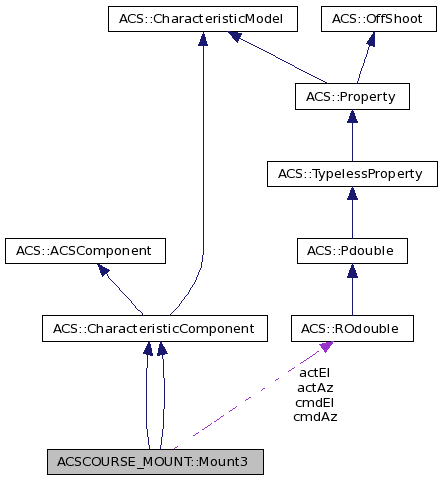

Collaboration diagram for ACSCOURSE_MOUNT::Mount3:

List of all members.

Public Types
enum	coordType { Mean, Apparent }
Public Member Functions
void	objfix (in double az, in double elev) raises (ACSErrTypeACSCourse::TargetOutOfRangeEx)
void	obstar (in double ra, in double dec, in double pmRa, in double pmDec, in double radVel, in double par, in coordType type)
void	objfix (in double az, in double elev)
Public Attributes
readonly attribute ACS::ROdouble	cmdAz
readonly attribute ACS::ROdouble	cmdEl
readonly attribute ACS::ROdouble	actAz
readonly attribute ACS::ROdouble	actEl

---

Detailed Description

Here we have a "complete" interface, including exceptions This time all properties are read only, because we set the values of azimuth and elevation via commands.

---

Member Enumeration Documentation

enum ACSCOURSE_MOUNT::Mount3::coordType

Enumerator:

Mean
Apparent

---

Member Function Documentation

void ACSCOURSE_MOUNT::Mount3::objfix	(	in double	az,
		in double	elev
	)			raises (ACSErrTypeACSCourse::TargetOutOfRangeEx)

(Pre)sets a new non-moving position for the antenna. The position coordinates are given in azimuth and elevation. A callback is used to inform the caller when the antenna reaches the new position. If a new position is given before the previous one is reached then the previous callback immediately receives "aborted".

Parameters:

	az	position azimuth (degree)
	elev	position elevation (degree)

void ACSCOURSE_MOUNT::Mount3::objfix	(	in double	az,
		in double	elev
	)

(Pre)sets a new non-moving position for the antenna. The position coordinates are given in azimuth and elevation. A callback is used to inform the caller when the antenna reaches the new position. If a new position is given before the previous one is reached then the previous callback immediately receives "aborted".

Parameters:

	az	position azimuth (degree)
	elev	position elevation (degree)

void ACSCOURSE_MOUNT::Mount3::obstar	(	in double	ra,
		in double	dec,
		in double	pmRa,
		in double	pmDec,
		in double	radVel,
		in double	par,
		in coordType	type
	)

(Pre)sets a new equatorial source for the antenna to track. The source position is given in geocentric equatorial J2000 coordinates.

Parameters:

	ra	source right ascension (hour)
	dec	source declination (hour)
	pmRa	source sky proper motion in right ascension (arc-sec/year)
	pmDec	source sky proper motion in declination (arc-sec/year)
	radVel	source radial velocity (kilometer/sec)
	par	source parallax correction (arc-sec)
	type	Apparent or Mean

---

Member Data Documentation

readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount3::actAz

Current actual azimuth (degree).

readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount3::actEl

Current actual elevation (degree).

readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount3::cmdAz

Current commanded azimuth (degree).

readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount3::cmdEl

Current commanded elevation (degree).

---

The documentation for this interface was generated from the following files:

• acscourse/ws/idl/acscourseMount.idl
• XmlIdl/idl/acscourseMount.idl
