import "acscourseMount.idl";

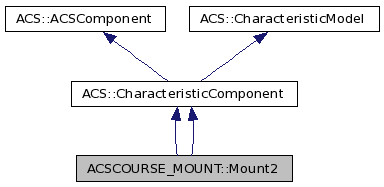

Inheritance diagram for ACSCOURSE_MOUNT::Mount2:

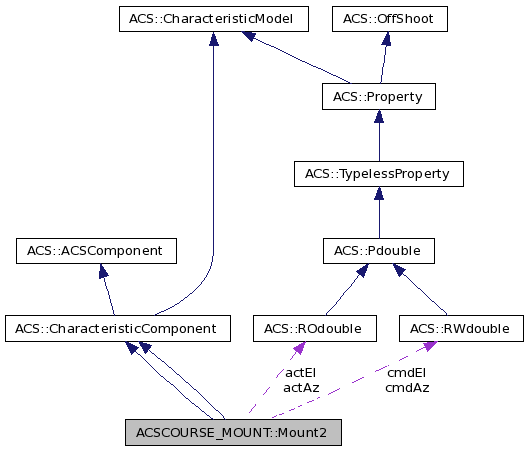

Collaboration diagram for ACSCOURSE_MOUNT::Mount2:
Public Member Functions | |
| void | objfix (in double az, in double elev) |
| void | objfix (in double az, in double elev) |
Public Attributes | |
| readonly attribute ACS::RWdouble | cmdAz |
| readonly attribute ACS::RWdouble | cmdEl |
| readonly attribute ACS::ROdouble | actAz |
| readonly attribute ACS::ROdouble | actEl |
Detailed Description
This adds properties to the Mount1 example. With properties we can now have monitors, alarms and many additional features. We need now to inherit from the more complex ACS::CharacteristicComponent interface For this example we have 2 read only and to read/write properties.
Member Function Documentation
| void ACSCOURSE_MOUNT::Mount2::objfix | ( | in double | az, | |
| in double | elev | |||
| ) |
(Pre)sets a new non-moving position for the antenna. The position coordinates are given in azimuth and elevation.
- Parameters:
-
az position azimuth (degree) elev position elevation (degree)
| void ACSCOURSE_MOUNT::Mount2::objfix | ( | in double | az, | |
| in double | elev | |||
| ) |
(Pre)sets a new non-moving position for the antenna. The position coordinates are given in azimuth and elevation.
- Parameters:
-
az position azimuth (degree) elev position elevation (degree)
Member Data Documentation
| readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount2::actAz |
Current actual azimuth (degree).
| readonly attribute ACS::ROdouble ACSCOURSE_MOUNT::Mount2::actEl |
Current actual elevation (degree).
| readonly attribute ACS::RWdouble ACSCOURSE_MOUNT::Mount2::cmdAz |
Current commanded azimuth (degree).
| readonly attribute ACS::RWdouble ACSCOURSE_MOUNT::Mount2::cmdEl |
Current commanded elevation (degree).
The documentation for this interface was generated from the following files:
