FORS2 trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-11-21T17:04:58 (UT)
  | now: 2024-11-21T17:17:31 (UT) muc01 QC pipeline: fors-5.6.10 (installed 2024-04-19)
same group: FFB12 FFB34 FFR34   Ar12 HeHgCd Ne12
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
FORS2 news:
Report news:
DATE*: [?] 2024-11-14
report | NLT 		2024-11-15
report | NLT 		2024-11-16
report | NLT 		2024-11-17
report | NLT 		2024-11-18
report | NLT 		2024-11-19
report | NLT 		2024-11-20
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...               [?] 		*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB MEDIAN 12.1 ADU VAL7,21 46 flux this | last_yr | all normalized flux of FlatBlue+1 lamp for chip 1
2 •QC1DB MEDIAN 10.7 ADU VAL6,18 46 flux this | last_yr | all normalized flux of FlatBlue+1 lamp for chip 2
3 •QC1DB MEDIAN 16.9 ADU VAL16,28 39 flux this | last_yr | all normalized flux of FlatBlue+2 lamp for chip 1
4 •QC1DB MEDIAN 13.6 ADU VAL12,19 39 flux this | last_yr | all normalized flux of FlatBlue+2 lamp for chip 2
*Data sources: QC1DB: QC1 database; LOCAL: local data source

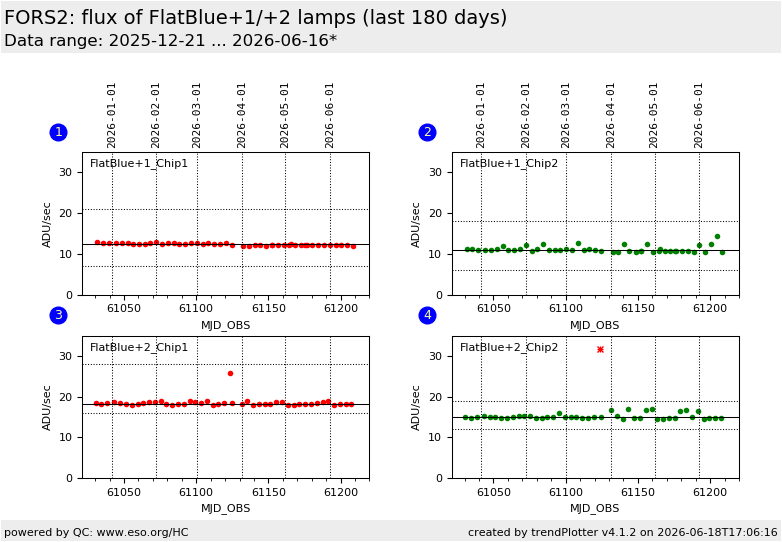

Plot 1
scores: 4|
data source:fors2_lamp_chk
(QC1 database)
dataset:flux•
median:12.1ADU
fixed thresholds:7...21ADU
N_data plotted:46
[click plot for closeup]
Plot 2
scores: 4|
data source:fors2_lamp_chk
(QC1 database)
dataset:flux•
median:10.7ADU
fixed thresholds:6...18ADU
N_data plotted:46
[click plot for closeup]
Plot 3
scores: 2|
data source:fors2_lamp_chk
(QC1 database)
dataset:flux•
median:16.9ADU
fixed thresholds:16...28ADU
N_data plotted:39
[click plot for closeup]
Plot 4
scores: 2|
data source:fors2_lamp_chk
(QC1 database)
dataset:flux•
median:13.6ADU
fixed thresholds:12...19ADU
N_data plotted:39
[click plot for closeup]
This plot

This parameter is determined from an overscan-subtracted calibration lamp exposure in LSS mode (taken with the template FORS2_lss_tec_flatLampcheck). The total signal is integrated and normalized by the exposure time and the total number of original CCD pixels (keeping into account possible binning). More information can be found in the plot tutorial. The setup of the lamp check is G300V, GG435 and 1arcsec slit.

  • FFB12 Monitoring the lamp flux of the two blue low brightness halogen lamps FlatBlue+1 and FlatBlue+2. These lamps are used to generate imaging screen flats.
  • FFB34 Monitoring the lamp flux of the two high brightness blue halogen lamps FlatBlue+3 and FlatBlue+4. These lamps are used to generate spectroscopic flats in blue (G300V, G600B) spectroscopic setups.
  • FFR34 Monitoring the lamp flux of the two red halogen lamps FlatRed+3 and FlatRed+4. These lamps are used to generate spectroscopic flats in red spectroscopic setups.

DB Name: fors2_lamp_chk
TPL.ID: FORS2_lss_tec_flatLampcheck
QC1 DB parameter: flux


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
