Objective

To establish a common set of classes used by instrument control SW as a platform for building new systems.
Conceived by ISAAC ICS and EMMI upgrade project.
"NO-COST" spin-off
The classes should be viewed as "Guidelines" not as "the Rule"
Open classes - input from other instruments wanted (and necessary)

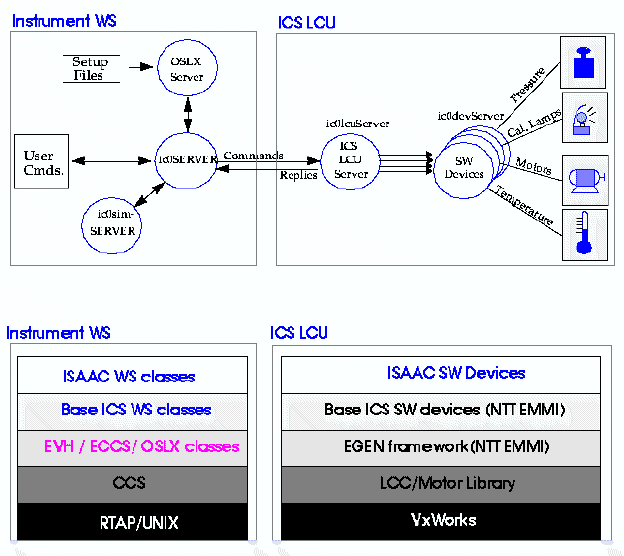

ICS Architecture

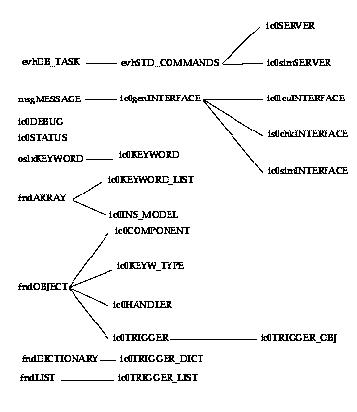

IC0 WS Class Overview

IC0 WS classes derived from: evh, fnd and oslx

ic0SERVER - base for ICS WS Server process
ic0simSERVER - base for ICS Simulator process
ic0genINTERFACE - generic interface to other processes

WS Application Framework

Why Framework ?

Basic set of commands supported
Commands can easily be added

- via sub-classing of ic0SERVER

Command behaviour can be modified

- handling functions can be overloaded - "dummy" functions inserted

Supported ICS standard commands:

State commands:

- OFF (PDOWN), STANDBY, ONLINE (OPERATING)

Control commands:

- SETUP, STATUS, INIT, STOP, DISABLE, ENABLE, LOCK, UNLOCK, SETMODE.

Q: Why not more commands ?

- A: INS Common SW Spec !

ICS STATES

CheckSubstate() - function to determine level of parallelism

- Normal commands prevented - Emergency commands allowed - Alarms and DbEvents handled

ResetSubState() - resumes IDLE substate.
Sub-class overload adapts the behavior !
Transition functions supported e.g. Loaded2Standby()

Using cmd to parse parameters

CCS/cmd provides functions to parse command body parameters.
Supported by: cmdParamXXX functions
CDT information used for command parsing.
cmdParamList - parse parameters into cmdPARAM_LIST structure.

- each parameter is tagged by type and if multiple parameters the number and array of values is attached.

cmdParamGetBy[Name|Index] retrieves values from parameter list converted to the type.

- Note: Memory allocated and re-used internally

cmdParamSetBy[Name|Index] changes values from type to parameter list values.

Using cmd to parse parameters (cont'd)

cmdParamDefault build up param. list from CDT with default parameters.

- Useful for systems sending commands.

cmdParamDelete delete a parameter from param. list.

- Useful for forwarding commands.

cmdParamToMsg build up message body from param.

Command Example

Adding CONFIG command to IC0



#include "ic0SERVER.h"

// Example of a simple sub-class of ic0SERVER

// A evh callback for the command CONFIG is added.

class testSERVER : public ic0SERVER

{

public:

    testSERVER(const dbSYMADDRESS dbRef,

                    ccsPROCNAME  chkServerName, ccsPROCNAME  simServerName,

                    vltINT32     lcuNum, ic0lcuSERVER *lcuServers,

                    char         *dictionary, char         *alias);



    evhCB_COMPL_STAT ConfigCB(msgMESSAGE &msg, void *udata);

    evhCB_COMPL_STAT ConfigReplyCB(msgMESSAGE &msg, void *udata);

};
testSERVER::testSERVER(const dbSYMADDRESS dbRef,

                     ccsPROCNAME  chkServerName, ccsPROCNAME  simServerName,

                     vltINT32     lcuNum, ic0lcuSERVER *lcuServers,

                     char         *dictionary, char         *alias) :

    ic0SERVER(dbRef, chkServerName, simServerName,

              lcuNum, lcuServers, dictionary, alias)

{

    evhMSG_TYPE_KEY key(msgTYPE_COMMAND);

    evhOBJ_CALLBACK cb(this);


    // isiServer commands

    evhHandler->AddCallback(key.Command("CONFIG"),

                            cb.Proc((evhCB_METHOD)ConfigCB));

}

Command Example (cont'd)

evhCB_COMPL_STAT testSERVER::ConfigCB(msgMESSAGE &msg, void *)

{

    int              pNo;    // number of parameters

    char             **sPtr; // pointer to string paramter array

    ic0KEYWORD_LIST  *keywordList;  // list of keywords handled by command


    // Check valid system state.

    // This command is only accepted when system is not in ONLINE

    if (State() == ic0STATE_ONLINE) {

        ErrAdd(ic0MOD,ic0ERR_INVALID_STATE, __FILE_LINE__,

               ic0STATE_LOADED_OR_STANDBY_STR, StateName());

        return ErrorReply(msg,ccsFALSE);

        }


    // Check the substate of the system.

    // Here we determine if the systems sub-state allows to handle this

    // command.

    if (CheckSubState(msg.Command()) != SUCCESS)

        return ErrorReply(msg,ccsFALSE);



    // Parse command parameters into a parameter list structure.

    // When command parameters are not OK return with failure

    if (cmdParamList(msg.Command(), msg.Buffer(),strlen(msg.Buffer()),

                     &paramList, &ErrStack()) == FAILURE) {

    ErrAdd(ic0MOD,ic0ERR_PARSE_PARAMETERS,
         __FILE_LINE__,msg.Command());

        return ErrorReply(msg);

        }


  // Handle "load" parameter and extract configuration filename

    cmdParamGetStringByName(&paramList, "load",

    &pNo,(char **)&sPtr, &ErrStack());

  if (pNo == 1) {

        // Processes configuration file sPtr[0]

        return OkReply(msg);

        }

    // Handle individual function configuration

    cmdParamGetStringByName(&paramList, "function", &pNo,(char **)&sPtr,

                            &ErrStack());



    if (pNo != 0)

        {

        chkServer->ClearBuffer(ic0chkCHECK_OSLXBUF);

        // check the keywords

        if (CheckFunctions("CONFIG", pNo, sPtr, &keywordList,

                           ic0chkCHECK_OSLXBUF) == FAILURE) {

            // The function must be invalid - reply with the error

            return ErrorReply(msg);

            }

        // Save the original received message in forward object

        ic0genFORWARD *forwardObj = new ic0genFORWARD(msg);


        //  Install callbacks for: reply, errorReply and callback

        ccsCOMPL_STAT stat;

        stat = lcuCmd->Forward("CONFIG", &paramList, keywordList,

                               forwardObj, (evhCB_METHOD)ConfigReplyCB,

                               (evhCB_METHOD)ErrorCB,       // use default

                               (evhCB_METHOD)TimeoutCB);    // use default

    // done with the keywordList

        delete keywordList;

        if (stat != SUCCESS)

            return ErrorReply(msg);



        // The reply is first sent when the sub-system replies back

        return evhCB_NO_DELETE;

        }



    // If parameters where not catched yet return with error

    ErrAdd(ic0MOD,ic0ERR_PARSE_PARAMETERS, __FILE_LINE__,"no specified");

    return ErrorReply(msg);

}

ICS Instrument Model

Describing the physical instrument functions as software components.

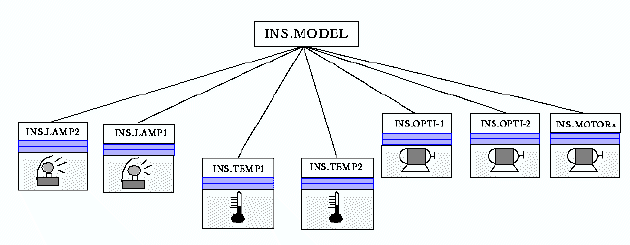

Inserting the components into a model - a set of components.
Short FITS "Keyword's" are used to adress the components in the model.

Advantages

Organizing of database and it's access
Dynamical check of Keywords
Handling instrument modes
Modifying function keywords i.e. automatic modes

An Instrument Component

Basically a C++ describing the component:

An active device - e.g. motor

Passive component - filter wheel.
Must have a unique Keyword.
Holds database reference of device

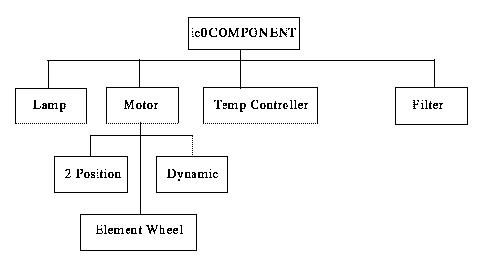

Class derived from ic0COMPONENT

- Functional inheritance provided via C++

Keyword Representation

ic0KEYWORD is the class representing a short FITS keyword.
sub-class of oslxKEYWORD but add's

- fndOBJECT capabities - LCU destination (used for handling systems with multiple LCU's)

ic0KEYWORD_LIST dynamical array of ic0KEYWORD's.

- array features (fndARRAY) - new data can be placed anywhere

when data is passed between ic0 object's it's either ic0KEYWORD's or ic0KEYWORD_LIST's

Keyword Triggers

Callback function called when a certain keyword is requested e.g. SETUP cmd.
Mechanism similar to evh command handling.
Keyword Triggers are registered into a dictionary in ic0HANDLER.
Keyword list's (ic0KEYWORD_LIST) are dispatched by ic0HANDLER
A ic0HANDLER is member object of the instrument model ic0INS_MODEL
Keyword Triggers can be assigned to any command or a specific command

Model Example

class testMOTOR: public ic0COMPONENT

{

  public:

    testMOTOR(ic0HANDLER *handler, char *keyw, char *cmd = "");

    ccsCOMPL_STAT MotorCB(const ic0KEYWORD &keyword, void*);

    ccsCOMPL_STAT GetKeywords(vltINT32 *no, ic0KEYWORD **keywPtr,
      msgCMD cmd);

  protected:

    ic0KEYWORD motorKeyw;

}; /* end class testMOTOR */



class testINS_MODEL: public ic0INS_MODEL

{

  public:

    testINS_MODEL();

    ccsCOMPL_STAT InsModeCB(const ic0KEYWORD &keyword, void*);

    ccsCOMPL_STAT NewKeywordList(ic0KEYWORD_LIST *list, msgCMD cmd);

    ccsCOMPL_STAT GetKeywords(vltINT32 *no, ic0KEYWORD **keywPtr,
      msgCMD cmd);

private:

    ic0DEBUG   debug;

    ic0KEYWORD modeKeyw;

};

testINS_MODEL::testINS_MODEL() :

    modeKeyw("INS.MODE   UNKNOWN")

{

    ic0KEYW_KEY key("");

    ic0TRIGGER_OBJ   trigger(this);



    // Add a INS.MODE keyword trigger

    handler->AddTrigger(key.Keyword("INS.MODE"),

                        trigger.Proc((ic0TRIGGER_PROC)InsModeCB));

    // Add some motor components to the instrument model

    Add(*(new testMOTOR(handler,"INS.OPTI-1")));

    Add(*(new testMOTOR(handler,"INS.OPTI-2")));

    Add(*(new testMOTOR(handler,"INS.OPTI-3")));
}


testMOTOR::testMOTOR(ic0HANDLER *handler, char *keyw, char *cmd)
{

    char newKeyword[32];

    Id(keyw); // Store the keyword in the device - used as reference

    strcpy(deviceType,"MOTOR"); // store the device type

    ic0KEYW_KEY key("");

    ic0TRIGGER_OBJ   trigger(this);



    handler->AddTrigger(key.Keyword(keyw).Command(cmd),// Add INS.OPTI-i

                        trigger.Proc((ic0TRIGGER_PROC)MotorCB));

  sprintf(newKeyword,"%s.NO", keyw);// reg. INS.OPTI-i.NO keyword trigger

    handler->AddTrigger(key.Keyword(newKeyword).Command(cmd),

                        trigger.Proc((ic0TRIGGER_PROC)MotorCB));



    sprintf(newKeyword,"%s.ID", keyw);// reg. INS.OPTI-i.ID keyword trigger

    handler->AddTrigger(key.Keyword(newKeyword).Command(cmd),

                        trigger.Proc((ic0TRIGGER_PROC)MotorCB));

}


ccsCOMPL_STAT testMOTOR::MotorCB(const ic0KEYWORD &keyword, void*)

{

    Valid(ccsTRUE);// Device function is valid - flag to indicate for the model



    motorKeyw = keyword;// assign the keyword to the device keyword

    return SUCCESS;

}

ICS Classes on LCU

Classes witout C++ - how ?

Egen - code generation framework

- developed by Ricardo Schmutzer

Language describing services i.e commands in a uniform .gen file
Code generation utility

- Produces: .c, .h, .cdt, .cit, .dbl, .boot

inherit construct provides simple inheritance

- table driven inheritance (virtual pointers)

auto and lcctoo support modules

Egen - example

Library myIcs {

    Module myDev

}

Module myDev {

    Description {

        Simple device build with egen

    }

    Environment myENV    // environments in this module

    Process myPROC       // processes in this module

    Class myMANAGER      // my device manager

    Class mySW_DEVICES   //

    Class myDEVICE       // software device

}



Environment myENV {
Process myPROC myServer
}
Process myPROC {

Class myMANAGER     myManager

}

Class myMANAGER {

    Id 201

  Interface {

        inherit ic0devMANAGER

        Exception Dummy {

            Type Severe

            Format "Dummy error"

        }

    }

    Implementation {

        CodeType CI



        Attribute mySW_DEVICES  swDevices         // all SW devices

    }

}

Class mySW_DEVICES {

    Id 203

  Implementation {

        inherit ic0devCONTAINER

        CodeType C

    Attribute myDEV         dev1

        Attribute myDEV         dev2

        Attribute myDEV         dev3

    }

}

Class myDEVICE {

    Id 310

  Interface {

        inherit ic0devSOFT



        Exception ReadOldb {

            Type Severe

            Format "Device %s: Unable to read %s from OLDB."

        }

    }

    Configuration { // Database decription of device

        Attribute string<16>    Id

        Attribute int32         myNum

        Attribute Table         myTable[1] {

            string<256> myName

            string<32>  mydevice

            uint32      value

        }

    }

    Implementation {

        CodeType C

        // Overloaded LCC Software Device user functions

        Service UsrInit                 Inherit

        Service UsrSelfTest             Inherit

        Service UsrTest                 Inherit

        Service Setup                   Inherit

    }

} // _o0o_

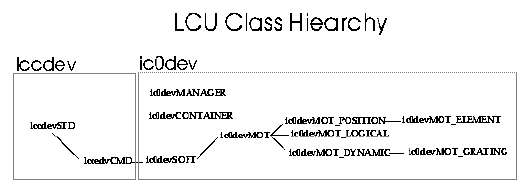

LCU classes

ic0devMANAGER

- implements device manager - SW devices registered as objects - SW device commands called as tasks

lccdev

- implements standard commands - basic SW device database e.g. state placeholders for user functions

ic0devSOFT

- implements INS commands - command parameter parsing, descrip-tion in local DB

ic0devMOT class

motor specific commands and handling of MCM
database definition with all information for the motor
motor device = single or pair of motors
action table - allowing a sequence of actions

- motMove parameters changeable via action table

position table - usefull for driving element wheels e.g. filterwheels.
SETUP parameters parsed via ic0devSOFT

Conclusion

Application Framework for ICS develop-ment
ICS Model support - assist in organizing data and handling keywords.
ICS Classes on LCU possible

IMPROVEMENTS

Needs to be applied for other instruments.
Use of standard C++ libraries
Performance (handling of setup files internally)
Support for special LCU environment ??
C++ for LCU should be considered.

Table of Contents

OOWG Tutorial

Design of base ICS classes

Contents
