#include <acsexmplRampedPowerSupplyImpl.h>

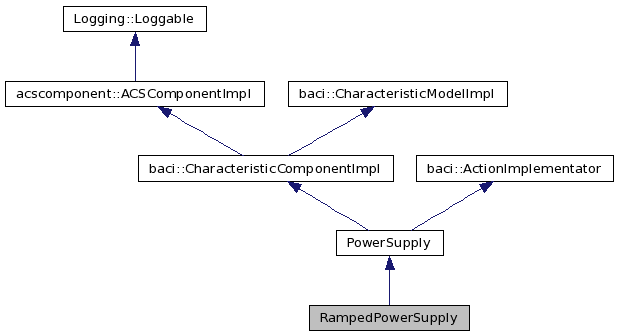

Inheritance diagram for RampedPowerSupply:

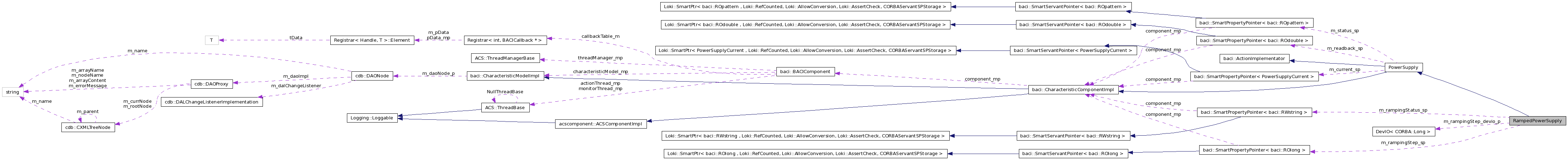

Collaboration diagram for RampedPowerSupply:
Public Member Functions | |
| RampedPowerSupply (const ACE_CString &name, maci::ContainerServices *containerServices) | |
| ~RampedPowerSupply () | |
| virtual baci::ActionRequest | invokeAction (int function, baci::BACIComponent *component_p, const int &callbackID, const CBDescIn &descIn, baci::BACIValue *value_p, Completion &completion, CBDescOut &descOut) |
| virtual baci::ActionRequest | startRampingAction (baci::BACIComponent *component_p, const int &callbackID, const CBDescIn &descIn, baci::BACIValue *value_p, Completion &completion, CBDescOut &descOut) |
| virtual baci::ActionRequest | stopRampingAction (baci::BACIComponent *component_p, const int &callbackID, const CBDescIn &descIn, baci::BACIValue *value_p, Completion &completion, CBDescOut &descOut) |
| virtual void | startRamping (CORBA::Long rampingSteps, ACS::CBvoid_ptr cb, const ACS::CBDescIn &desc) |
| virtual void | stopRamping (ACS::CBvoid_ptr cb, const ACS::CBDescIn &desc) |
| virtual ACS::RWstring_ptr | rampingStatus () |
| virtual ACS::ROlong_ptr | rampingStep () |
Static Public Attributes | |
| static const int | START_RAMPING = 3 |
| static const int | STOP_RAMPING = 4 |
Private Member Functions | |
| void | operator= (const RampedPowerSupply &) |
Private Attributes | |
| baci::SmartPropertyPointer < baci::ROlong > | m_rampingStep_sp |
| DevIO< CORBA::Long > * | m_rampingStep_devio_p |
| baci::SmartPropertyPointer < baci::RWstring > | m_rampingStatus_sp |
Detailed Description
Simulates the behavior of a ramped power supply by inheriting from Power Supply's IDL interface and C++ implementation. The class RampedPowerSupply simulates the behaviour of a ramped power supply and is derived from the PowerSupply IDL interface. This class shows how to utilize inheritance in both the C++ and IDL class/interface.
Asynchronous calls are implemented using the ...... pattern and the ..... support classes. For each xxx action defined in the IDL interface two methods are provided:
- xxx() just registers the action and installs the callback
- xxxAction() performs (asyncronously) the action and invokes the callback when finished. The RampedPowerSupply::invokeAction method is called by the asynchronous dispatcher whenever there is an xxx pending action and it calls the xxxAction corresponding method.
Class RampedPowerSupply also provides the properties rampingStatus and rampingSteps in addition to anything inherited from PowerSupply.
- Version:
- "@(#) $Id: acsexmplRampedPowerSupplyImpl.h,v 1.101 2008/10/01 04:30:47 cparedes Exp $"
Constructor & Destructor Documentation
| RampedPowerSupply::RampedPowerSupply | ( | const ACE_CString & | name, | |
| maci::ContainerServices * | containerServices | |||
| ) |
Constructor
- Parameters:
-
poa poa which will activate this and also all other components name component name
The documentation for this class was generated from the following file:
