FridgeControl Class Reference [ACS Components Examples]

#include <acsexmplFridgeImpl.h>

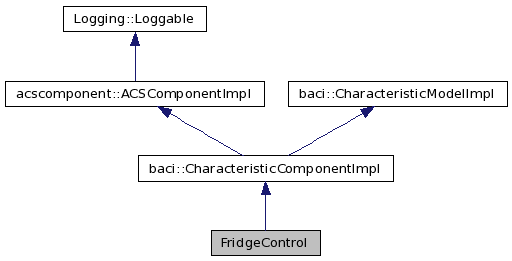

Inheritance diagram for FridgeControl:

Collaboration diagram for FridgeControl:

List of all members.

Public Member Functions
	FridgeControl (const ACE_CString &name, maci::ContainerServices *containerServices)
virtual	~FridgeControl ()
virtual void	cleanUp ()
void	updateTemperature ()
virtual void	on ()
virtual void	off ()
virtual void	open ()
virtual void	close ()
virtual ACS::RWdouble_ptr	refTemperature ()
virtual FRIDGE::ROOnOffStates_ptr	powerStatus ()
virtual FRIDGE::ROOpClStates_ptr	doorStatus ()
virtual ACS::ROdouble_ptr	currTemperature ()
Private Member Functions
virtual void	loadData ()
void	operator= (const FridgeControl &)
Private Attributes
baci::SmartPropertyPointer < baci::RWdouble >	m_refTemperature_sp
baci::SmartPropertyPointer < ROEnumImpl< ACS_ENUM_T(FRIDGE::OnOffStates), POA_FRIDGE::ROOnOffStates > >	m_powerStatus_sp
baci::SmartPropertyPointer < ROEnumImpl< ACS_ENUM_T(FRIDGE::OpClStates), POA_FRIDGE::ROOpClStates > >	m_doorStatus_sp
baci::SmartPropertyPointer < baci::ROdouble >	m_currTemperature_sp
FridgeThread *	m_controlLoop_p
nc::SimpleSupplier *	m_FridgeSupplier_p

---

Detailed Description

FridgeControl shows BACI threads as well as a notification channel supplier. The class FridgeControl simulates the behaviour of a fridge. It provides four synchronous methods: on, off, open, and close. It also provides the properties: refTemperature, powerStatus, doorStatus, and currTemperature. powerStatus and doorStatus are both enums. Finally, FridgeControl is also a Supplier for the "fridge" notification channel.

Author:

Matej Sekoranja, Jozef Stefan Institute, Slovenia

Version:

"@(#) $Id: acsexmplFridgeImpl.h,v 1.115 2008/10/01 04:30:47 cparedes Exp $"

---

Constructor & Destructor Documentation

FridgeControl::FridgeControl	(	const ACE_CString &	name,
		maci::ContainerServices *	containerServices
	)

Constructor

Parameters:

	poa	Poa which will activate this and also all other components.
	name	component's name. This is also the name that will be used to find the configuration data for the component in the Configuration Database.

---

The documentation for this class was generated from the following file:

• acsexmplFridgeImpl.h
