SPHERE trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-11-21T10:09:41 (UT)
  | now: 2024-11-22T00:03:45 (UT) muc03 QC pipeline: spher-0.56.0 (installed 2024-09-26)
same group: AXIS-X AXIS-Y   AXIS-XY
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
SPHERE news: Note that the current Health Check monitor runs with an incomplete pipeline and an incomplete set of QC1 parameters. QCG can currently not guarantee completeness and significance at the usual level.
Report news:
DATE*: [?] 2024-11-14
report | NLT 		2024-11-15
report | NLT 		2024-11-16
report | NLT 		2024-11-17
report | NLT 		2024-11-18
report | NLT 		2024-11-19
report | NLT 		2024-11-20
report | NLT 		2024-11-21
no data | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw no CAL raw files
P...
CAL product quality:
products products products products products products products no CAL products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...               [?] 		*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB none   pixel VAL500,528 16 qc_optaxis_y this | last_yr | all H-band, left beam, no apodizer, scored
2 •QC1DB none   pixel VAL486,514 16 qc_optaxis_y this | last_yr | all H-band, right beam, no apodizer, not scored
3 •QC1DB none   pixel none  16 qc_optaxis_y this | last_yr | all H-band, left beam, no apodizer, not scored, copy of plot 1
3 •QC1DB none   pixel none  15 qc_optaxis_y this | last_yr | all H-band, left beam, with apodizer, not scored
4 •QC1DB none   pixel none  16 qc_optaxis_y this | last_yr | all H-band, right beam, no apodizer, not scored, copy of plot 2
4 •QC1DB none   pixel none  15 qc_optaxis_y this | last_yr | all H-band, right beam, with apodizer, not scored
5 •QC1DB none   pixel VAL500,528 16 qc_optaxis_y this | last_yr | all K-band, left beam, no apodizer, scored
6 •QC1DB none   pixel VAL486,514 16 qc_optaxis_y this | last_yr | all K-band, right beam, no apodizer, not scored
7 •QC1DB none   pixel none  16 qc_optaxis_y this | last_yr | all K-band, left beam, no apodizer, not scored, copy of plot 4
7 •QC1DB none   pixel none  15 qc_optaxis_y this | last_yr | all K-band, left beam, with apodizer, not scored
8 •QC1DB none   pixel none  16 qc_optaxis_y this | last_yr | all K-band, right beam, no apodizer, not scored, copy of plot 5
8 •QC1DB none   pixel none  15 qc_optaxis_y this | last_yr | all K-band, right beam, with apodizer, not scored
*Data sources: QC1DB: QC1 database; LOCAL: local data source

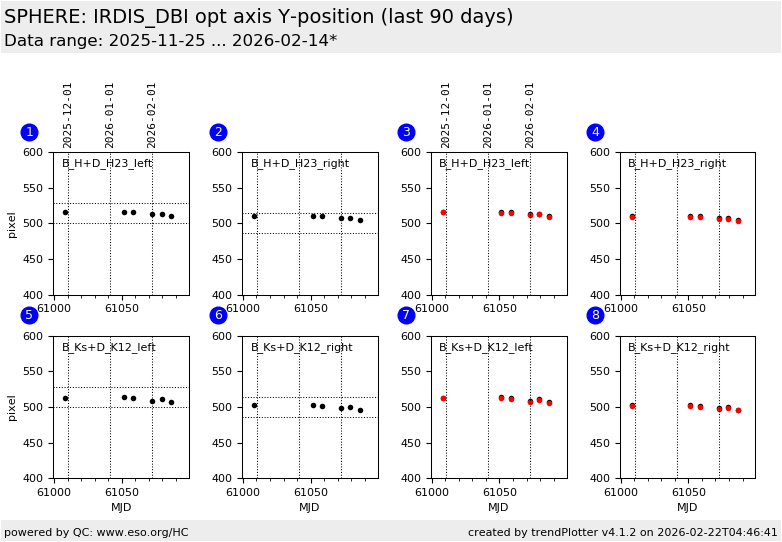

Plot 1
scores: 2|
data source:sphere_irdis_distmap
(QC1 database)
dataset:qc_optaxis_y•
average:none
fixed thresholds:500...528pixel
N_data plotted:16
[click plot for closeup]
Plot 2
scores: 2|
data source:sphere_irdis_distmap
(QC1 database)
dataset:qc_optaxis_y•
average:none
fixed thresholds:486...514pixel
N_data plotted:16
[click plot for closeup]
Plot 3
scores: not implemented
data source:sphere_irdis_distmap
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_optaxis_y•
average:none
thresholds:none
N_data plotted:16
[click plot for closeup]
Plot 4
scores: not implemented
data source:sphere_irdis_distmap
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_optaxis_y•
average:none
thresholds:none
N_data plotted:16
[click plot for closeup]
Plot 5
scores: 2|
data source:sphere_irdis_distmap
(QC1 database)
dataset:qc_optaxis_y•
average:none
fixed thresholds:500...528pixel
N_data plotted:16
[click plot for closeup]
Plot 6
scores: 2|
data source:sphere_irdis_distmap
(QC1 database)
dataset:qc_optaxis_y•
average:none
fixed thresholds:486...514pixel
N_data plotted:16
[click plot for closeup]
Plot 7
scores: not implemented
data source:sphere_irdis_distmap
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_optaxis_y•
average:none
thresholds:none
N_data plotted:16
[click plot for closeup]
Plot 8
scores: not implemented
data source:sphere_irdis_distmap
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_optaxis_y•
average:none
thresholds:none
N_data plotted:16
[click plot for closeup]
General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
