SPHERE trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-12-22T11:09:34 (UT)
  | now: 2024-12-23T02:14:53 (UT) muc03 QC pipeline: spher-0.56.0 (installed 2024-09-26)
same group: med_master ron NumHotPix persistence persist/temp   Background NormPersist
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
SPHERE news: Note that the current Health Check monitor runs with an incomplete pipeline and an incomplete set of QC1 parameters. QCG can currently not guarantee completeness and significance at the usual level.
Report news:
DATE*: [?] 2024-12-16
report | NLT
2024-12-17
report | NLT
2024-12-18
report | NLT
2024-12-19
report | NLT
2024-12-20
report | NLT
2024-12-21
report | NLT
2024-12-22
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw no CAL raw files
P...
CAL product quality:
products products products products products products no CAL products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 24109.5 ADU VAL15000,28000 22 qc_num_hotpix this | last_yr | all DIT=2, NDIT=40, Nondest
2 QC1DB MEDIAN 36567.5 ADU VAL25000,45000 22 qc_num_hotpix this | last_yr | all DIT=8, NDIT=25, Nondest
3 QC1DB MEDIAN 54710.5 ADU VAL40000,60000 22 qc_num_hotpix this | last_yr | all DIT=30, NDIT=15, Nondest
4 QC1DB none   degree none  445 qc_num_hotpix this | last_yr | all IFS detector temperature, INS2.TEMP201.VAL
*Data sources: QC1DB: QC1 database; LOCAL: local data source

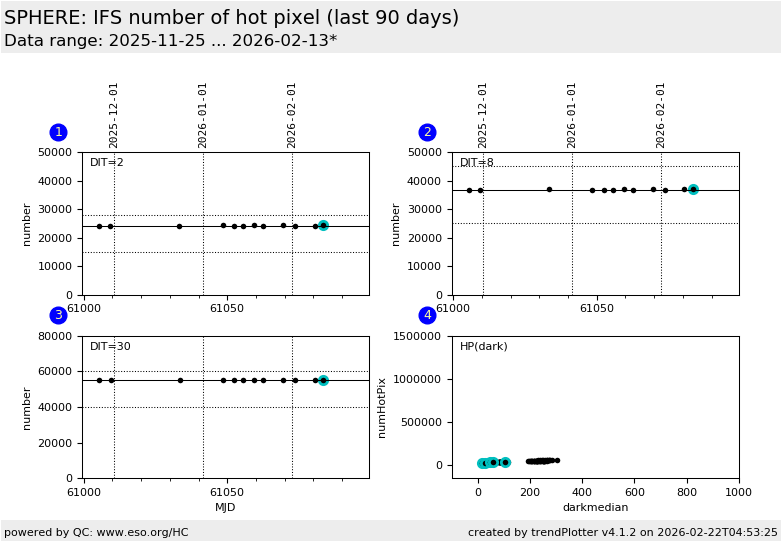

Plot 1
scores: 3|
data source:sphere_ifs_dark
(QC1 database)
dataset:qc_num_hotpix
median:24109.5ADU
fixed thresholds:15000...28000ADU
N_data plotted:22
[click plot for closeup]
Plot 2
scores: 3|
data source:sphere_ifs_dark
(QC1 database)
dataset:qc_num_hotpix
median:36567.5ADU
fixed thresholds:25000...45000ADU
N_data plotted:22
[click plot for closeup]
Plot 3
scores: 3|
data source:sphere_ifs_dark
(QC1 database)
dataset:qc_num_hotpix
median:54710.5ADU
fixed thresholds:40000...60000ADU
N_data plotted:22
[click plot for closeup]
Plot 4
scores: not implemented
data source:sphere_ifs_dark
(QC1 database)
dataset:qc_num_hotpix
average:none
thresholds:none
N_data plotted:445
[click plot for closeup]
This plot

This plot monitors QC parameter NumberOfHotPixel of the IFS-arm for a selected range of DIT derived from SPHERE_irdifs_cal_dark template and processed by the sph_isf_dark recipe.

Lower right plot: Number of bad pixel as a function of dark level.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
