HAWKI trending system: HISTORY plot
Last update: 2010-05-18T01:59:07 (UT)
same group: Median_Dark Mean_RON Reset_Anomaly RON_vs_DIT
close window history: 2007 2008 2009   2010   2011   2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025   HEALTH FULL
  ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
  • bi-modal distribution in chip 1.
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
5 •QC1DB MEDIAN 6.1 ADU 3SIG± 1.84783 126 qc_dark_med this | last_yr | all median dark level, chip 1, DIT=2.0
6 •QC1DB MEDIAN -0.25 ADU 3SIG± 0.2641 126 qc_dark_med this | last_yr | all median dark level, chip 2, DIT=2.0
2 •QC1DB MEDIAN -0.53 ADU 3SIG± 0.41952 126 qc_dark_med this | last_yr | all median dark level, chip 3, DIT=2.0
1 •QC1DB MEDIAN 0.0 ADU 3SIG± 0.1956 126 qc_dark_med this | last_yr | all median dark level, chip 4, DIT=2.0
7 •QC1DB MEDIAN 78.35274 ADU 3SIG± 40.87836 98 qc_dark_med this | last_yr | all median dark level, chip 1, DIT=300
8 •QC1DB MEDIAN 59.58681 ADU 3SIG± 29.4752 98 qc_dark_med this | last_yr | all median dark level, chip 2, DIT=300
4 •QC1DB MEDIAN 85.43318 ADU 3SIG± 44.52737 98 qc_dark_med this | last_yr | all median dark level, chip 3, DIT=300
3 •QC1DB MEDIAN 55.89044 ADU 3SIG± 28.82368 98 qc_dark_med this | last_yr | all median dark level, chip 4, DIT=300
*Data sources: QC1DB: QC1 database; LOCAL: local text file
This plot

Trending report for median value across master dark.
QC parameter is derived for each detector of the raw dark frames.

On 2016-11-19 (blue vertical line) new CASU pipeline was adopted.

Name:
Fits header: QC.RAW.MEDIAN.MEAN,
QC1 DB: qc_dark_med

Description:
The mean of the raw dark medians. Setup:
DET.DIT=2.0
DET.DIT=300.0

These plots describe:

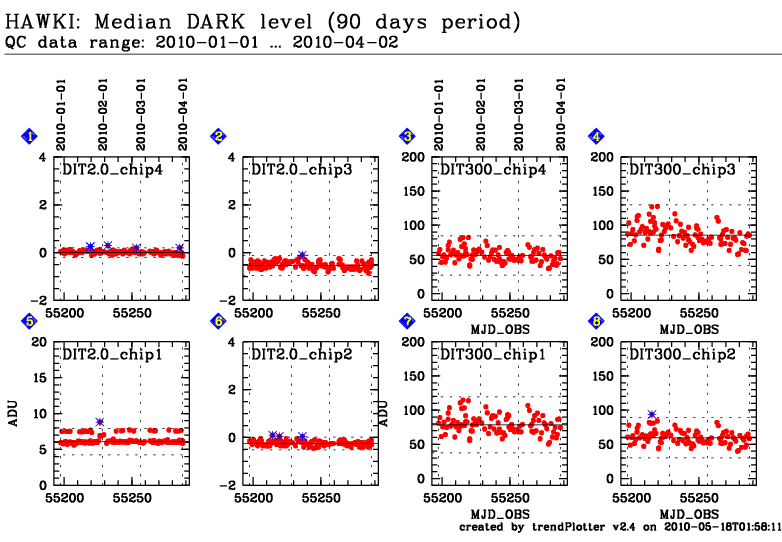

Fig. 1. chip4: The QC parameter for DIT=2.0 for chip #4.
Fig. 2. chip3: The QC parameter for DIT=2.0 for chip #3.
Fig. 3. chip4: The QC parameter for DIT=300.0 for chip #4.
Fig. 4. chip3: The QC parameter for DIT=300.0 for chip #3.
Fig. 5. chip1: The QC parameter for DIT=2.0 for chip #1.
Fig. 6. chip2: The QC parameter for DIT=2.0 for chip #2.
Fig. 7. chip1: The QC parameter for DIT=300.0 for chip #1.
Fig. 8. chip2: The QC parameter for DIT=300.0 for chip #2.

Find more information on the HAWKI DARK calibration tutorial page.



General information

Click on any of the plots to see a close-up version. The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
