Plot
? |
Symb
? |
Source
* |
Average ? |
Thresholds ? |
N_
data |
QC1
parameter |
Data
downloads |
Remarks |
| method |
value |
unit |
method |
value |
| 1 |
• | QC1DB |
MEDIAN |
5.02 |
NONE |
VAL | 0,6 |
186 |
fiba_disp_avg |
this |
last_yr |
all
|
RMS of dispersion solution, average of all orders, fibre A |
| 2 |
• | QC1DB |
MEDIAN |
1.81 |
NONE |
VAL | 1,3.5 |
186 |
fiba_disp_rms |
this |
last_yr |
all
|
RMS of dispersion solution, RMS across all orders, fibre A |
| 3 |
• | QC1DB |
MEDIAN |
5.04 |
NONE |
VAL | 0,6 |
184 |
fibb_disp_avg |
this |
last_yr |
all
|
RMS of dispersion solution, average of all orders, fibre B |
| 4 |
• | QC1DB |
MEDIAN |
1.8 |
NONE |
VAL | 1,3.5 |
184 |
fibb_disp_rms |
this |
last_yr |
all
|
RMS of dispersion solution, RMS across all orders, fibre B |
| |
|
*Data sources: QC1DB: QC1 database; LOCAL: local data source
|
Plot 1
scores:  15|
| | data source: | espresso_wave_thar_a
(QC1 database) |
| dataset: | fiba_disp_avg | • |
| median: | 5.02 | NONE |
| fixed thresholds: | 0...6 | NONE |
| N_data plotted: | 186 |
| [click plot for closeup] |
Plot 2
scores: 15|
| | data source: | espresso_wave_thar_a
(QC1 database) |
| dataset: | fiba_disp_rms | • |
| median: | 1.81 | NONE |
| fixed thresholds: | 1...3.5 | NONE |
| N_data plotted: | 186 |
| [click plot for closeup] |
Plot 3
scores: 15|
| | data source: | espresso_wave_thar_b
(QC1 database) |
| dataset: | fibb_disp_avg | • |
| median: | 5.04 | NONE |
| fixed thresholds: | 0...6 | NONE |
| N_data plotted: | 184 |
| [click plot for closeup] |
Plot 4
scores: 15|
| | data source: | espresso_wave_thar_b
(QC1 database) |
| dataset: | fibb_disp_rms | • |
| median: | 1.8 | NONE |
| fixed thresholds: | 1...3.5 | NONE |
| N_data plotted: | 184 |
| [click plot for closeup] |

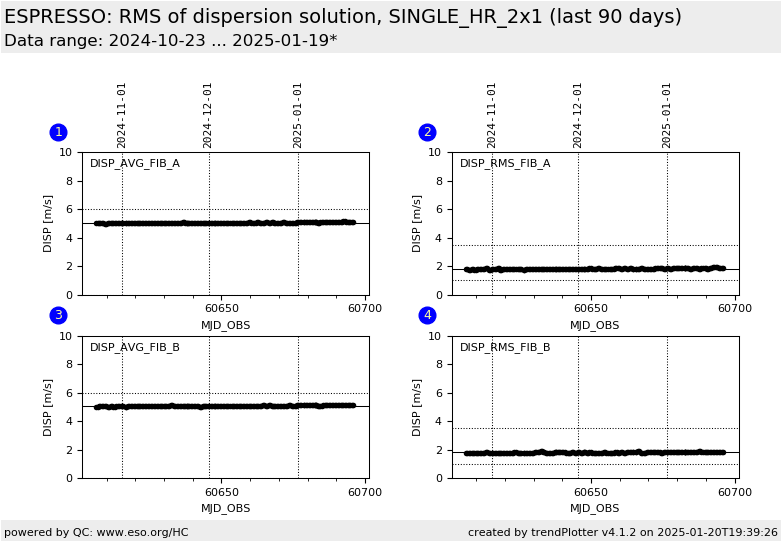

Trending plot for the RMS of the dispersion solution. The wavelength solution
is achieved by calibrating the Fabry-Perot (FP) lines with Th-Ar arc lines.
The dispersion RMS is calculated per order. The trending plots show the
average dispersion RMS of all orders and the RMS of the individual values.
General information
Click on any of the plots to see a close-up version.
The latest date is indicated on top of the plot.
If configured,
- data points belonging to the latest date are specially marked
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
