ERIS trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-11-13T18:19:31 (UT)
  | now: 2024-11-13T22:33:24 (UT) muc04 QC pipeline: eris-1.6.3 (installed 2024-08-30)
same group: NIX_Persistence SP_Persistence
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
ERIS news:
Report news:
DATE*: [?] 2024-11-06
report | NLT
2024-11-07
report | NLT
2024-11-08
report | NLT
2024-11-09
report | NLT
2024-11-10
report | NLT
2024-11-11
report | NLT
2024-11-12
report | NLT
2024-11-13
no data | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw no CAL raw files
P...
CAL product quality:
products products products products products products products no CAL products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 2.97e-07 number VAL0,.005 1110 qc_persis_nsat_frac this | last_yr | all SPIFFIER: ratio of saturated pixels (in%)
2 QC1DB MEDIAN 0 number VAL0,3145728 1110 qc_persis_nsat_max this | last_yr | all SPIFFIER: maximum number of saturated pixels
3 QC1DB MEDIAN 0 number VAL0,.005 1110 qc_persis_nthresh_frac this | last_yr | all SPIFFIER: ratio of pixels above 60000*.75(in%)
4 QC1DB MEDIAN 0 number VAL0,3145728 1110 qc_persis_nthresh_max this | last_yr | all SPIFFIER: maximum number of pixels above 60000*.75
*Data sources: QC1DB: QC1 database; LOCAL: local data source

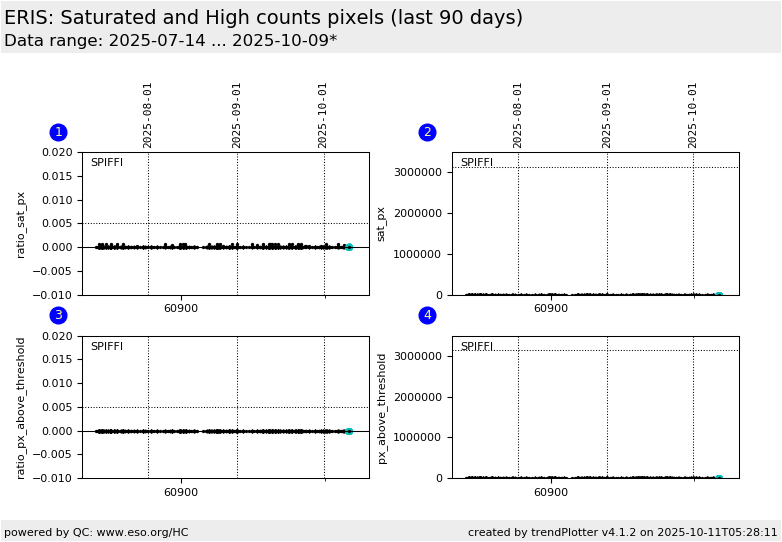

Plot 1
scores: not implemented
data source:eris_ifu_persistence
(QC1 database)
dataset:qc_persis_nsat_frac
median:2.97e-07number
fixed thresholds:0...0.005number
N_data plotted:1110
[click plot for closeup]
Plot 2
scores: 81|
data source:eris_ifu_persistence
(QC1 database)
dataset:qc_persis_nsat_max
median:0number
fixed thresholds:0...3145728number
N_data plotted:1110
[click plot for closeup]
Plot 3
scores: not implemented
data source:eris_ifu_persistence
(QC1 database)
dataset:qc_persis_nthresh_frac
median:0number
fixed thresholds:0...0.005number
N_data plotted:1110
[click plot for closeup]
Plot 4
scores: 81|
data source:eris_ifu_persistence
(QC1 database)
dataset:qc_persis_nthresh_max
median:0number
fixed thresholds:0...3145728number
N_data plotted:1110
[click plot for closeup]
This plot

Saturation and number of counts higher than the define threshold. The saturation level and the threshold are given to the pipeline as input parameters
The value of the thresholds are the following

IFU:

  • Saturation level: 60000
  • high counts threshold: 45000

NIX:

  • SLOW readout:
    -- Saturation level: 15000 -- threshold: 12000
  • FAST readout:
    -- Saturation level: 49000 -- threshold: 37000
    General information

    Click on any of the plots to see a close-up version.

    The latest date is indicated on top of the plot.

    If configured,

    • data points belonging to the latest date are specially marked
    • statistical averages are indicated by a solid line, and thresholds by broken lines
    • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
    • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
    • you can download the data for each parameter set if the 'Data downloads' link shows up
