| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| bottom plots | contact | ||||||||||||||||||||||||||||
| NAME | visir_dark.py | |||||||||||||||||||||||||||
| VERSION |
1.0 -- April 2015 | |||||||||||||||||||||||||||
| SYNTAX | PYTHON | |||||||||||||||||||||||||||
| CALL |
processQC from $DFS_PRODUCT/DARK_IMG/$DATE or $DFS_PRODUCT/DARK_SPEC/$DATE /home/vimos/python/vimos_dark.py -i -a $AB | |||||||||||||||||||||||||||
| INSTRUMENT | VISIR | |||||||||||||||||||||||||||
| RAWTYPE | DARK_IMG and DARK_SPEC | |||||||||||||||||||||||||||
| PURPOSE | QC check on raw and master dark frames | |||||||||||||||||||||||||||
| PROCINPUT | raw dark frames and IMG_DARK_AVG/SPEC_DARK_AVG product | |||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: visir_dark_img | visir_dark_spc | |||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_RON_HC.html | trend_report_DARK_HC.html | trend_report_TEMP_HC.html | |||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: dark_qc1.html | |||||||||||||||||||||||||||
| QC1PLOTS top |

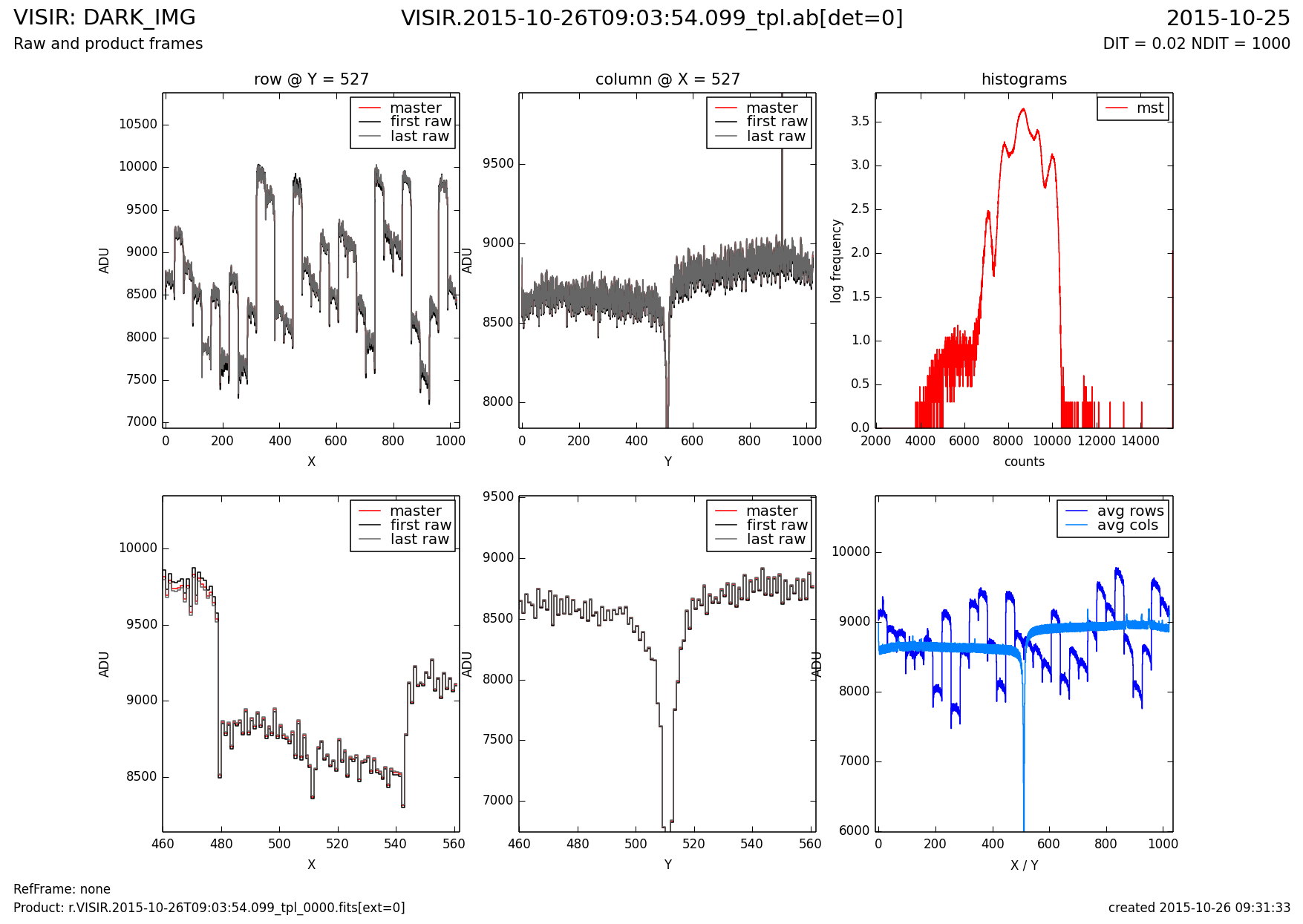

dark_img.png Example plot for imaging detector upper left panel: cuts through first raw frame, last raw frame, and master dark in X direction upper middle panel: cuts through first raw frame, last raw frame, and master dark in Y direction upper right panel: histrogram of master central left panel: cuts through first raw frame, last raw frame, and master dark in X direction, central area central middle panel: cuts through first raw frame, last raw frame, and master dark in Y direction, central area central right panel: row and column averages of master dark_spc.png same, for spectroscopic detector | |||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written in QC1 database: QC1 DB names: ron1 | ron2 | darkmed | nbcolpix | nbhotpix | nbdevpix All parameters are calculated by the pipeline recipe. | |||||||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: ron1: read-out noise from raw2-raw1. It is the median of the standard deviations measured from 100 4x4 windows on the difference frame, multiplied by sqrt(NDIT/2). ron2: same as ron1 but from raw3-raw2 darkmed: medium dark level nbcolpix: number of cold pixels nbhotpix: number of hot pixels nbdevpix: number of deviant pixels | |||||||||||||||||||||||||||
| CERTIF |
Only used for Health Check monitoring, not for data reduction. | |||||||||||||||||||||||||||
| COMMENTS | NONE | |||||||||||||||||||||||||||
