| NAME | qc_LIMGFLAT.sh | ||||||||||||||||||||||||||||
| VERSION |
1.0 -- copied from ISAAC for NACO (2002-03-12) 1.1 -- incorporated from old NACO; new name qc_LIMGFLAT.sh (2005-08-23) 1.2 -- 2017-08-30 docu reviewed | ||||||||||||||||||||||||||||
| SYNTAX | SHELL | ||||||||||||||||||||||||||||
| CALL |
processQC from $DFS_PRODUCT/LIMGFLAT/$DATE: qc_LIMGFLAT $date $primfile " | ||||||||||||||||||||||||||||
| INSTRUMENT | NACO | ||||||||||||||||||||||||||||
| RAWTYPE | LIMGFLAT | ||||||||||||||||||||||||||||
| PURPOSE | compares raw and product internal lamp flat files for NACO QC assessment; the created plot is later reviewed within certifyProducts; it is stored in $DFO_PLT_DIR; it also extracts QC parameters and records them in the local qclog table; the procedure calls qc_LIMGFLAT.sh | ||||||||||||||||||||||||||||
| PROCINPUT |
NACO MASTER_LAMP_FLAT product; | ||||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: naco_lampflat | ||||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_LAMPFLUX_S13_HC.html | trend_report_LAMPONFLUX_S13_HC.html | trend_report_GRAD_S13_HC.html | ||||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: lampflat_qc1.html | ||||||||||||||||||||||||||||
| QC1PLOTS top |

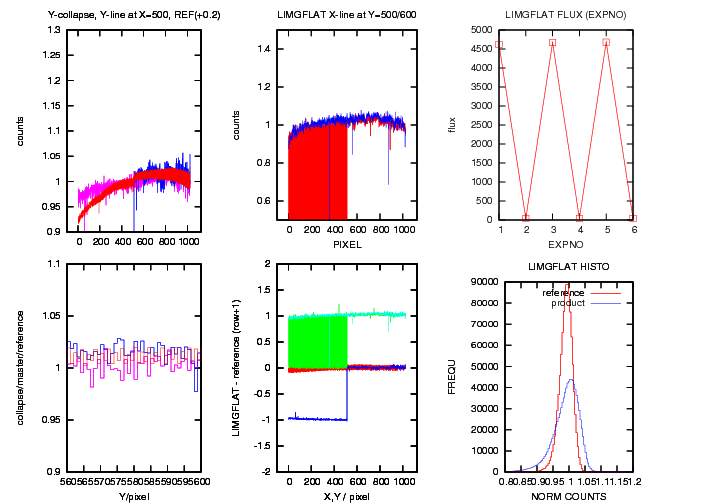

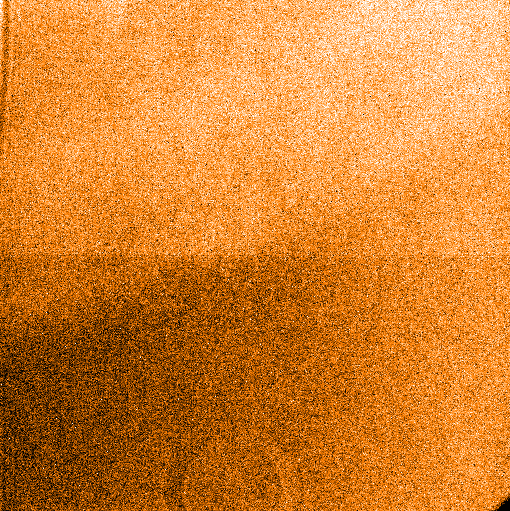

qc_LIMGFLAT.png upper left: median collapsed column (red), single column (blue), and column from reference. (of normalized master flat) upper center: median collapsed row (red), single row (blue), and row from reference. (of normalized master flat) upper right: alternating sequence of raw frame counts lower left: zoom of upper left box. lower center: cyan: row from reference, green row from current product (with bad column region), red: column from reference minus 1, blue: current colum minus 1 lower right: histogram of the reference (red) and the current (blue) master qc_LIMGFLAT_diff.png full display of difference of the master with corresponding reference frame | ||||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written into QC1 table: QC1db names: fpn | gain | lamp_flux | dark_std | flat_med_min | flat_med_max flat_min | flat_max | flat_median | flat_std | flat_tot The essential parameters are the flat raw frame counts, the lamp flux (ADU/sec) and the X-, and Y-gradient of the masterflat. FITS key names: DET.DIT | DET.NDIT | DET.NCORRS.NAME | DET.MODE.NAME | INS.FILTER | INS.CAMERA QC1 params created by pipeline: gain, fpn, lamp flux QC1 params created by this procedure:statistics in four quadrants and analysis of the odd-even column effect | ||||||||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: For description of algorithms used by the recipe see the NACO Pipeline User Manual; odd-even column/row analysis; - Flux values for each raw frame per quadrant and per odd and even columns are derived; - (odd minus even) / (odd + even) is estimated for each quadrant; - mean values for all the frames in the stack are derived; - stdev per quadrant from all the raw frame stack is derived | ||||||||||||||||||||||||||||
| CERTIF |
Known problems: - occasional image of the defocused dust particle; tolerated if flux reduction less than 1% - vignetting, especially in case of flats taken with camera S54 Reasons for rejection: - unusual structures or patterns (unless representative of the current state of detector); - unusual illumination or reflections - DATANCOM lower than usual (4-6) Also full display of the local difference, i.e. of the master with closest in time conterpart is monitored. | ||||||||||||||||||||||||||||
| COMMENTS | NONE | ||||||||||||||||||||||||||||
