daq::CommonDaqController Class Reference

Implements common behaviour of OcmDaqController and DpmDaqController. More...

#include <daqController.hpp>

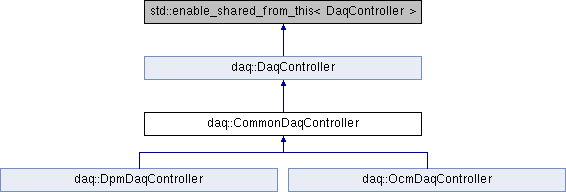

Inheritance diagram for daq::CommonDaqController:

Public Member Functions
	CommonDaqController (boost::asio::io_context &io_context, DaqContext context, std::shared_ptr< ObservableStatus > status, std::shared_ptr< ObservableEventLog > event_log)
std::shared_ptr< ObservableStatus >	GetStatus () DAQ_NOEXCEPT override
std::shared_ptr< ObservableStatus const >	GetStatus () const DAQ_NOEXCEPT override
std::shared_ptr< ObservableEventLog >	GetEventLog () DAQ_NOEXCEPT override
std::string const &	GetId () const DAQ_NOEXCEPT override
bool	GetErrorFlag () const DAQ_NOEXCEPT override
DaqContext const &	GetContext () const DAQ_NOEXCEPT override
boost::signals2::connection	ConnectContext (ContextSignal::slot_type const &slot) override
	Connect observer that is invoked when context is modified. More...
Public Member Functions inherited from daq::DaqController
	DaqController ()=default
virtual	~DaqController ()=default
virtual boost::future< State >	StartAsync ()=0
	Starts the data acquisition. More...
virtual boost::future< Status >	StopAsync (ErrorPolicy policy)=0
	Stops the data acquisition. More...
virtual boost::future< Status >	AbortAsync (ErrorPolicy policy)=0
	Aborts the data acquisition. More...
virtual boost::future< State >	ScheduleMergeAsync ()=0
	Schedules DAQ for merging by sending request to DPM. More...
virtual void	UpdateKeywords (fits::KeywordVector const &keywords)=0
	Updates (replace or add) list of keywords. More...
virtual boost::future< State >	AwaitAsync (std::vector< std::string > sources, std::chrono::milliseconds timeout)=0
	Awaits that data acquisition stops or aborts. More...
virtual State	GetState () const DAQ_NOEXCEPT=0

Protected Member Functions
template<class T , class... Args>
void	AddEvent (Args &&... args)
boost::asio::io_context &	GetIoCtx () noexcept
rad::IoExecutor &	GetIoExecutor () noexcept
DaqContext &	GetContextMut () noexcept
ObservableEventLog &	GetEventLogRef () noexcept
ObservableStatus &	GetStatusRef () noexcept
ObservableStatus const &	GetStatusRef () const noexcept
void	EmitContextSignal ()

Additional Inherited Members
Public Types inherited from daq::DaqController
using	ContextSignal = boost::signals2::signal< void(DaqContext const &)>

Detailed Description

Implements common behaviour of OcmDaqController and DpmDaqController.

Definition at line 332 of file daqController.hpp.

Constructor & Destructor Documentation

CommonDaqController()

daq::CommonDaqController::CommonDaqController	(	boost::asio::io_context &	io_context,
		DaqContext	context,
		std::shared_ptr< ObservableStatus >	status,
		std::shared_ptr< ObservableEventLog >	event_log
	)

Definition at line 114 of file daqController.cpp.

Member Function Documentation

AddEvent()

template<class T , class... Args>

void daq::CommonDaqController::AddEvent ( Args &&...  args )

inlineprotected

Definition at line 349 of file daqController.hpp.

ConnectContext()

boost::signals2::connection daq::CommonDaqController::ConnectContext ( ContextSignal::slot_type const &  slot )

overridevirtual

Connect observer that is invoked when context is modified.

Parameters

o	Observer callable invoked on context changes.

Returns

signal connection object that can be used to disconnect observer:

Implements daq::DaqController.

Definition at line 152 of file daqController.cpp.

EmitContextSignal()

void daq::CommonDaqController::EmitContextSignal ( )

inlineprotected

Definition at line 370 of file daqController.hpp.

GetContext()

DaqContext const & daq::CommonDaqController::GetContext ( ) const

overridevirtual

Implements daq::DaqController.

Definition at line 147 of file daqController.cpp.

GetContextMut()

DaqContext& daq::CommonDaqController::GetContextMut ( )

inlineprotectednoexcept

Definition at line 358 of file daqController.hpp.

GetErrorFlag()

bool daq::CommonDaqController::GetErrorFlag ( ) const

overridevirtual

Returns

Error flag.

Implements daq::DaqController.

Definition at line 143 of file daqController.cpp.

GetEventLog()

std::shared_ptr< ObservableEventLog > daq::CommonDaqController::GetEventLog ( )

overridevirtual

Returns

event log associated with this daq.

Implements daq::DaqController.

Definition at line 135 of file daqController.cpp.

GetEventLogRef()

ObservableEventLog& daq::CommonDaqController::GetEventLogRef ( )

inlineprotectednoexcept

Definition at line 361 of file daqController.hpp.

GetId()

std::string const & daq::CommonDaqController::GetId ( ) const

overridevirtual

Returns

data acquisition identifier.

Implements daq::DaqController.

Definition at line 139 of file daqController.cpp.

GetIoCtx()

boost::asio::io_context& daq::CommonDaqController::GetIoCtx ( )

inlineprotectednoexcept

Definition at line 352 of file daqController.hpp.

GetIoExecutor()

rad::IoExecutor& daq::CommonDaqController::GetIoExecutor ( )

inlineprotectednoexcept

Definition at line 355 of file daqController.hpp.

GetStatus() [1/2]

std::shared_ptr< ObservableStatus const > daq::CommonDaqController::GetStatus ( ) const

overridevirtual

Implements daq::DaqController.

Definition at line 131 of file daqController.cpp.

GetStatus() [2/2]

std::shared_ptr< ObservableStatus > daq::CommonDaqController::GetStatus ( )

overridevirtual

Returns

status object associated with this daq.

Implements daq::DaqController.

Definition at line 127 of file daqController.cpp.

GetStatusRef() [1/2]

ObservableStatus const& daq::CommonDaqController::GetStatusRef ( ) const

inlineprotectednoexcept

Definition at line 367 of file daqController.hpp.

GetStatusRef() [2/2]

ObservableStatus& daq::CommonDaqController::GetStatusRef ( )

inlineprotectednoexcept

Definition at line 364 of file daqController.hpp.

---

The documentation for this class was generated from the following files:

• common/libdaq/src/include/daq/daqController.hpp
• common/libdaq/src/daqController.cpp
