Workflow information system for QC
Last update: 2024-11-21T14:50:23 (UT)
  | now: 2024-11-22T06:06:13 (UT)
same group: dataflow_DAY dataflow_MONTH
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
Report news: 2008-07: VIRCAM@VISTA included as plot #3
2009-07: XSHOOTER included
2010-05: bandwidth expanded to 10 Mb/s
2011-03/04: VISTA intervention
2011-05-01: OMEGACAM@VST included as plot #4
2014-02: MUSE Comm. I
2014-05: MUSE Comm. II, SPHERE included
2017-07-17: 694,000 MB, all-time high for VLT(I), VISIR BURST mode
2020-03...09: big gap due to pandemy

scores&comments | history ... | plot tutorial: n/a | contact | HC_docu... | quality events...                 daily     [?] 		*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
See also the bandwidth monitor.
All WISQ plots are updated once per day. The links 'Data downloads' might offer more recent data than plotted, since the database is fed by other processes than the plot process.
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB MEAN 1.33e+05 MB none  89 dataflow_ALL this | last_yr | all 1. daily data volume (all VLT+VLTI, no survey cameras, compressed MBytes)
a) all data
1 oQC1DB none   MB none  89 dataflow_CAL this | last_yr | all b) CAL only (UT 0.40...0.99)
1 oQC1DB none   MB none  89 dataflow_SCI this | last_yr | all c) SCI only (UT 0.00...0.39)
2 •QC1DB MEAN 1.33e+05 MB none  89 dataflow_ALL this | last_yr | all 2. Instruments with burst modes (SCI plus CAL, compressed MBytes)
a) all data
2 oQC1DB none   MB none  89 dataflow_ALL this | last_yr | all b) MUSE only
2 oQC1DB none   MB none  89 dataflow_ALL this | last_yr | all c) ESPRESSO only
2 oQC1DB none   MB none  89 dataflow_ALL this | last_yr | all d) VISIR only
2 oQC1DB none   MB none  89 dataflow_ALL this | last_yr | all e) HAWKI only
2 oQC1DB none   MB none  89 dataflow_ALL this | last_yr | all f) VLTI only (AMBER/GRAVITY/PIONIER/MATISSE)
3 •QC1DB MEAN 0 MB none  89 dataflow_ALL this | last_yr | all 3. VIRCAM@VISTA (compressed MBytes)
a) all VIRCAM data
3 •QC1DB none   MB none  89 dataflow_CAL this | last_yr | all b) CAL only (UT 0.40...0.99)
3 •QC1DB none   MB none  89 dataflow_SCI this | last_yr | all c) SCI only (UT 0.00...0.39)
4 •QC1DB MEAN 3.68e+04 MB none  89 dataflow_ALL this | last_yr | all 4. OMEGACAM@VST (compressed MBytes)
a) all OMEGACAM data
4 •QC1DB none   MB none  89 dataflow_CAL this | last_yr | all b) CAL only (UT 0.40...0.99)
4 •QC1DB none   MB none  89 dataflow_SCI this | last_yr | all c) SCI only (UT 0.00...0.39)
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
data source:dataflow_stat
(QC1 database)
dataset:
(numbers below apply to this dataset)		dataflow_ALL•
mean:1.33e+05MB
thresholds:none
N_data plotted:89
[click plot for closeup]
Plot 2
data source:dataflow_stat
(QC1 database)
dataset:
(numbers below apply to this dataset)		dataflow_ALL•
mean:1.33e+05MB
thresholds:none
N_data plotted:89
[click plot for closeup]
Plot 3
data source:dataflow_stat
(QC1 database)
dataset:
(numbers below apply to this dataset)		dataflow_ALL•
mean:0MB
thresholds:none
N_data plotted:89
[click plot for closeup]
Plot 4
data source:dataflow_stat
(QC1 database)
dataset:
(numbers below apply to this dataset)		dataflow_ALL•
mean:3.68e+04MB
thresholds:none
N_data plotted:89
[click plot for closeup]

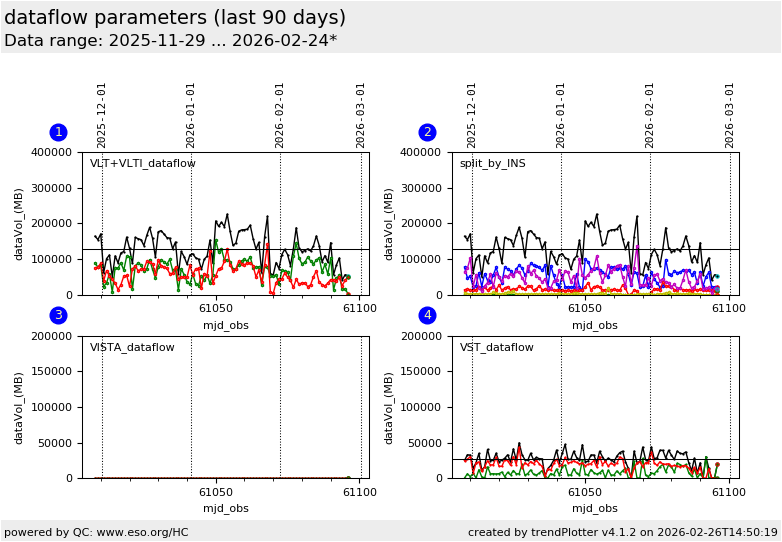

This plot

This plot visualizes the daily data volume, in compressed MBytes, created by VLT and VLTI (plots 1 and 2), by VISTA (plot 3) and by the VST (plot 4). The data volume is read from the ngas_files database table. It refers to compressed files and represents the data volume relevant for transfer. Since July 2008, VLT/VLTI data are transfered via the internet, before they were sent on disks. Since March 2012, the EVALSO fibre link serves all Paranal data (including VIRCAM and OMEGACAM) over the internet.

Plot 1: The data stream is divided into "ALL" data; "SCIENCE" (all data acquired between mjd.00 ... mjd.40), and "CALIBRATION" (all other data).

Plot 2: The data stream for instruments with burst modes. Peaks almost always refer to burst mode observations of a single instruments. That instrument can be identified in this plot.

Plots 3,4: As plot 1, the VIRCAM and OMEGACAM data streams are divided into ALL, SCIENCE and CALIBRATION.

Until 2011, the thin broken line in the history plots marks the data volume equivalent to a 10.0 Mbit/s continuous transfer (before EVALSO, this was the bandwidth for data transfer of the connection Paranal - Antofagasta).

General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
