UVES sky emission atlas: 8140-8380A |
|||||
|
![]() |

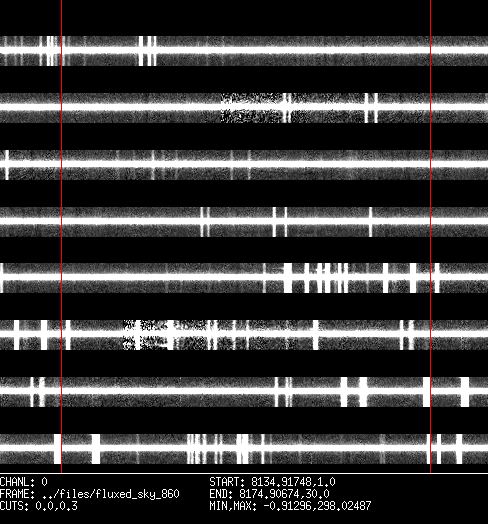

![]() The ordinate scale is physical flux in 1E-16 erg/[s A cm**2 arcs**2] and includes the continuum sky emission. The spectrum is plotted in 30 A panels, with begin and end wavelength denoted at the borders. The vertical blue bars mark those lines which have been measured. The red line marks the sky spectrum divided by 10. Red dots mark the line identifications from the Keck atlas (Osterbrock et al. 1996 PASP 108, 277). Crosses mark the
positions of
identified OH lines
(Lidman et al. 2000).
These positions have been transformed from vacuum to
air using the Edlen formula.
|
|||
![]() |
