IFS distortion frame contains the IFU spectra of a pinhole mask
![IFS_DIST_RAW1](../img/IFS_DIST_RAW1.png) |
![IFS_DISR_RAW2](../img/IFS_DIST_RAW2.png) |

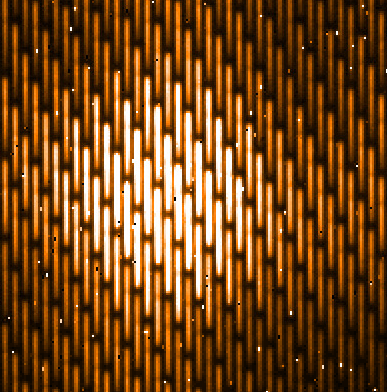

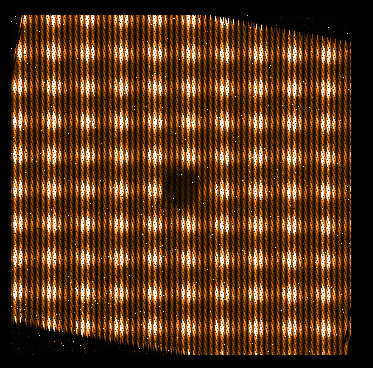

Left: IFS of the pinhole mask. Right: zoom of the left image. |
![IFS_DIST_PRO2](../img/IFS_DIST_PRO2.png) |
![IFS_DIST_PRO2](../img/IFS_DIST_PRO1.png) |

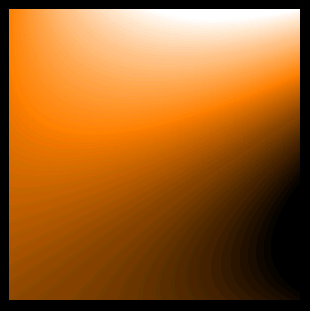

Left: cube reconstructed and collapsed image of the pinhole mask. Right: optical distortion polynomial function extracted from the comparison between the left image and the POINT_PATTERN static calibration containing the pinhole nominal positions. |
2015-09: The distortion recipe is not fully commissioned, no QC parameters as supported. QC1 parameters
parameter |
QC1 database: table, name
|
procedure |
tbd |
sphere_ifs_dist, qc_tbd |
number of spectra found |
Trending
The format offset is trended.
|
