SINFONI trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2019-06-28T05:03:52 (UT)
  | now: 2024-11-22T15:24:18 (UT) muc04 QC pipeline: sinfo-3.2.5 (installed 2019-05-09)
same group: std_flux std_peak_AO std_strehl_AO std_persistence std_peak_all std_strehl_all
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
SINFONI news: 2019-06-26: SINFONI taken out of operations
Report news:
DATE*: [?] 2019-06-24
report | NLT 		2019-06-25
report | NLT 		2019-06-26
no data | NLT 		2019-06-27
no data | NLT 		2019-06-28
no data | NLT 		2019-06-29
no data | NLT 		2019-06-30
no data | NLT
r...
Raw CAL displays:
raw raw no CAL raw files no CAL raw files no CAL raw files no CAL raw files no CAL raw files
P...
CAL product quality:
products products no CAL products no CAL products no CAL products no CAL products no CAL products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu...                 daily/often; important to check     [?] 		*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
telluric standard star monitoring has been implemented beginning 2009-05-01. The intent is to monitor the MINIMUM flux of the STD to insure that it has an adequate S/N. Flux on the peak should be around 500 counts (threshold for the 25mas scale (plot 5)).
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB none   ADU VAL300.0,5000 0 qc_peak_flux this | last_yr | all flux on the detected peak: J-band/250 mas scale
1 •QC1DB none   ADU none  2 qc_peak_flux this | last_yr | all flux on the detected peak: J-band/100 mas scale
1 •QC1DB none   ADU none  4 qc_peak_flux this | last_yr | all flux on the detected peak: J-band/25 mas scale
2 •QC1DB none   ADU VAL300.0,5000 0 qc_peak_flux this | last_yr | all flux on the detected peak: H-band/250 mas scale
2 •QC1DB none   ADU none  4 qc_peak_flux this | last_yr | all flux on the detected peak: H-band/100 mas scale
2 •QC1DB none   ADU none  0 qc_peak_flux this | last_yr | all flux on the detected peak: H-band/25 mas scale
3 •QC1DB none   ADU VAL300.0,5000 6 qc_peak_flux this | last_yr | all flux on the detected peak: K-band/250 mas scale
3 •QC1DB none   ADU none  14 qc_peak_flux this | last_yr | all flux on the detected peak: K-band/100 mas scale
3 •QC1DB none   ADU none  11 qc_peak_flux this | last_yr | all flux on the detected peak: K-band/25 mas scale
4 •QC1DB none   ADU VAL300.0,5000 0 qc_peak_flux this | last_yr | all flux on the detected peak: H+K-band/250 mas scale
4 •QC1DB none   ADU none  7 qc_peak_flux this | last_yr | all flux on the detected peak: H+K-band/100 mas scale
4 •QC1DB none   ADU none  33 qc_peak_flux this | last_yr | all flux on the detected peak: H+K-band/25 mas scale
5 •QC1DB none   ADU VAL300.0,5000 4 qc_peak_flux this | last_yr | all flux on the detected peak: J-band/25 mas scale
5 •QC1DB none   ADU none  0 qc_peak_flux this | last_yr | all flux on the detected peak: H-band/25 mas scale
5 •QC1DB none   ADU none  11 qc_peak_flux this | last_yr | all flux on the detected peak: K-band/25 mas scale
5 •QC1DB none   ADU none  33 qc_peak_flux this | last_yr | all flux on the detected peak: H+K-band/25 mas scale
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:sinfoni_std
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_peak_flux•
average:none
fixed thresholds:300.0...5000ADU
N_data plotted:0
[click plot for closeup]
Plot 2
scores: not implemented
data source:sinfoni_std
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_peak_flux•
average:none
fixed thresholds:300.0...5000ADU
N_data plotted:0
[click plot for closeup]
Plot 3
scores: not implemented
data source:sinfoni_std
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_peak_flux•
average:none
fixed thresholds:300.0...5000ADU
N_data plotted:6
[click plot for closeup]
Plot 4
scores: not implemented
data source:sinfoni_std
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_peak_flux•
average:none
fixed thresholds:300.0...5000ADU
N_data plotted:0
[click plot for closeup]
Plot 5
scores: not implemented
data source:sinfoni_std
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_peak_flux•
average:none
fixed thresholds:300.0...5000ADU
N_data plotted:4
[click plot for closeup]

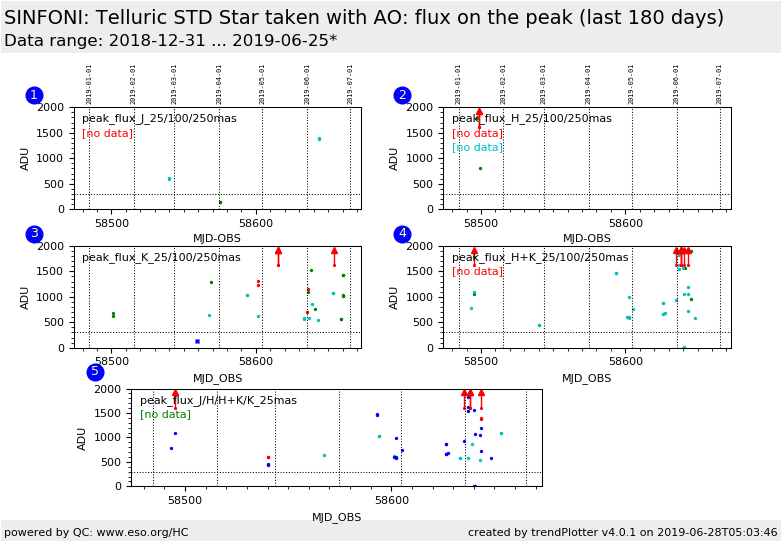

This plot

These are the trending plots for the SINFONI QC parameters derived from the telluric STD stars.

Telluric standard star monitoring has been implemented beginning 2009-05-01.

The intent is to monitor the MINIMUM flux of the STD star to insure that it has an adequate S/N.

Flux levels should be above 5 ADU/pixel within a 3 sigma aperture.

Find more information about SINFONI STD calibration data here.

Other QC parameters are also trended here.

General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
