NACO trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2019-10-07T09:34:25 (UT)
  | now: 2024-12-22T03:53:37 (UT) muc04 QC pipeline: naco-4.4.8 (installed 2019-03-26)
same group: TWIL_2LAMP TWIL_BPM TWIL_ERRMAP
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
NACO news: 2019-10-01: NACO taken out of operations
Report news:
DATE*: [?] 2019-09-30
report | NLT 		2019-10-01
report | NLT 		2019-10-02
no data | NLT 		2019-10-03
no data | NLT 		2019-10-04
no data | NLT 		2019-10-05
no data | NLT 		2019-10-06
no data | NLT
r...
Raw CAL displays:
raw raw no CAL raw files no CAL raw files no CAL raw files no CAL raw files no CAL raw files
P...
CAL product quality:
products products no CAL products no CAL products no CAL products no CAL products no CAL products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu...               [?] 		*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB none     none  45 num_BP_UL this | last_yr | all S13, J,H,Ks
1 •QC1DB none     none  10 num_BP_UL this | last_yr | all S27, J,H,Ks
1 •QC1DB none     none  5 num_BP_UL this | last_yr | all S54, J,H,Ks
2 •QC1DB none     none  46 num_BP_UR this | last_yr | all S13, J,H,Ks
2 •QC1DB none     none  9 num_BP_UR this | last_yr | all S27, J,H,Ks
2 •QC1DB none     none  5 num_BP_UR this | last_yr | all S54, J,H,Ks
3 •QC1DB none     none  45 num_BP_LL this | last_yr | all S13, J,H,Ks
3 •QC1DB none     none  11 num_BP_LL this | last_yr | all S27, J,H,Ks
3 •QC1DB none     none  5 num_BP_LL this | last_yr | all S54, J,H,Ks
4 •QC1DB none     none  49 num_BP_LR this | last_yr | all S13, J,H,Ks
4 •QC1DB none     none  11 num_BP_LR this | last_yr | all S27, J,H,Ks
4 •QC1DB none     none  5 num_BP_LR this | last_yr | all S54, J,H,Ks
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:naco_twflat
(QC1 database)
dataset:
(numbers below apply to this dataset)		num_BP_UL•
average:none
thresholds:none
N_data plotted:45
[click plot for closeup]
Plot 2
scores: not implemented
data source:naco_twflat
(QC1 database)
dataset:
(numbers below apply to this dataset)		num_BP_UR•
average:none
thresholds:none
N_data plotted:46
[click plot for closeup]
Plot 3
scores: not implemented
data source:naco_twflat
(QC1 database)
dataset:
(numbers below apply to this dataset)		num_BP_LL•
average:none
thresholds:none
N_data plotted:45
[click plot for closeup]
Plot 4
scores: not implemented
data source:naco_twflat
(QC1 database)
dataset:
(numbers below apply to this dataset)		num_BP_LR•
average:none
thresholds:none
N_data plotted:49
[click plot for closeup]

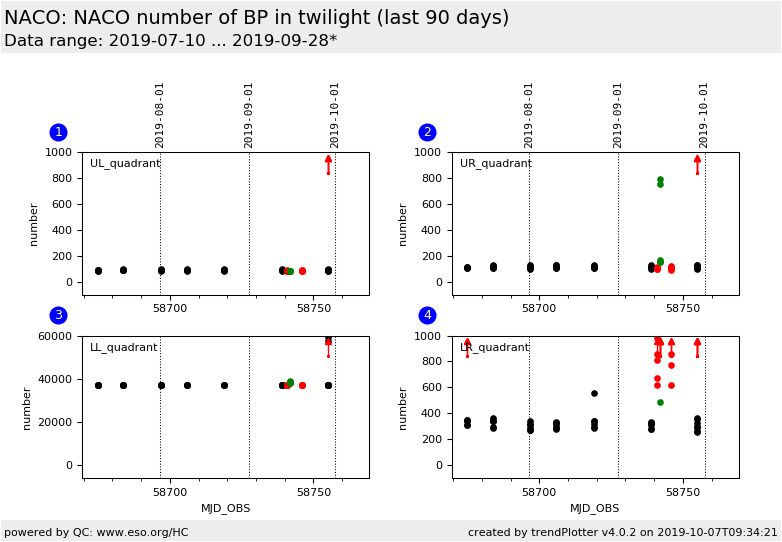

This plot

This plot shows the number of bad pixel in the twilight flat product in dedicated areas. The areas are the four detector quadrants (512x512 pixel) but with about 100 pixel stripped off at all four edges resulting in an analysis region of 312x312 pixel. The high number of bad pixel in the LL quadrant since 2016 arises from the dead columns of the detector. In the third quarter of 2015, the UR detector quadrant was subject of dead columns. This parameter is sensitive to erratic light contaminations.

General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
