MATISSE trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-12-21T16:21:36 (UT)
  | now: 2024-12-21T17:09:59 (UT) muc12 QC pipeline: matisse-2.0.0 (installed 2023-11-20)
same group: MAX_OPD OPD_LM OPD_N
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
MATISSE news:
Report news:
DATE*: [?] 2024-12-14
report | NLT 		2024-12-15
report | NLT 		2024-12-16
report | NLT 		2024-12-17
report | NLT 		2024-12-18
report | NLT 		2024-12-19
report | NLT 		2024-12-20
report | NLT
r...
Raw CAL displays:
n/a n/a n/a n/a n/a n/a n/a
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial: n/a | contact | HC_docu... | quality events...                 daily/often; important to check     [?] 		*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB MEDIAN 0.479 microns VAL0,28 94 max_opd this | last_yr | all Maximum OPD (6 baselines) - AQUARIUS (MATISSE-LM) - LOW OUT-OUT
2 •QC1DB MEDIAN 0.99 microns VAL0,28 94 max_opd this | last_yr | all Maximum OPD (6 baselines) - AQUARIUS (MATISSE-LM) - LOW IN-IN
3 •QC1DB none   microns none  94 max_opd1 this | last_yr | all Maximum OPD bas1 LM OUT-OUT
3 •QC1DB none   microns none  94 max_opd2 this | last_yr | all Maximum OPD bas2 LM OUT-OUT
3 •QC1DB none   microns none  94 max_opd3 this | last_yr | all Maximum OPD bas3 LM OUT-OUT
3 •QC1DB none   microns none  94 max_opd4 this | last_yr | all Maximum OPD bas4 LM OUT-OUT
3 •QC1DB none   microns none  94 max_opd5 this | last_yr | all Maximum OPD bas5 LM OUT-OUT
3 •QC1DB none   microns none  94 max_opd6 this | last_yr | all Maximum OPD bas6 LM OUT-OUT
4 •QC1DB none   microns none  94 max_opd1 this | last_yr | all Maximum OPD bas1 LM IN-IN
4 •QC1DB none   microns none  94 max_opd2 this | last_yr | all Maximum OPD bas2 LM IN-IN
4 •QC1DB none   microns none  94 max_opd3 this | last_yr | all Maximum OPD bas3 LM IN-IN
4 •QC1DB none   microns none  94 max_opd4 this | last_yr | all Maximum OPD bas4 LM IN-IN
4 •QC1DB none   microns none  94 max_opd5 this | last_yr | all Maximum OPD bas5 LM IN-IN
4 •QC1DB none   microns none  94 max_opd6 this | last_yr | all Maximum OPD bas6 LM IN-IN
*Data sources: QC1DB: QC1 database; LOCAL: local data source

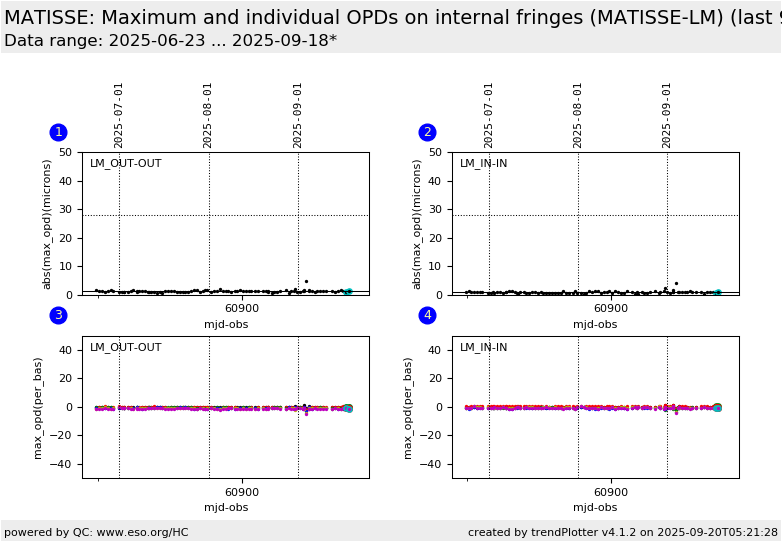

Plot 1
scores: not implemented
data source:matisse_internal_vis
(QC1 database)
dataset:max_opd•
median:0.479microns
fixed thresholds:0...28microns
N_data plotted:94
[click plot for closeup]
Plot 2
scores: not implemented
data source:matisse_internal_vis_in_in
(QC1 database)
dataset:max_opd•
median:0.99microns
fixed thresholds:0...28microns
N_data plotted:94
[click plot for closeup]
Plot 3
scores: not implemented
data source:matisse_internal_vis
(QC1 database)
dataset:
(numbers below apply to this dataset)		max_opd1•
average:none
thresholds:none
N_data plotted:94
[click plot for closeup]
Plot 4
scores: not implemented
data source:matisse_internal_vis_in_in
(QC1 database)
dataset:
(numbers below apply to this dataset)		max_opd1•
average:none
thresholds:none
N_data plotted:94
[click plot for closeup]
This plot

The averaged OPD is calculated per baseline for the different input raw files.
The maximum of the averaged OPD for the 6 baselines is plotted here.
Specifications are 100 microns/8h for MATISSE-LM and 300 for MATISSE-N.
The OPD must be stable to 20 microns to achieve less than 1% contrast loss during the night.
The max OPD for each baseline is plotted under OPD_LM and OPD_N (both for OUT-OUT and IN-IN configurations of the BCD)

General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
