Plot
? |
Symb
? |
Source
* |
Average ? |
Thresholds ? |
N_
data |
QC1
parameter |
Data
downloads |
Remarks |
| method |
value |
unit |
method |
value |
| 1 |
• | QC1DB |
MEDIAN |
9.15 |
ADU |
OFF | ± 0.5 |
2913 |
qc_ron_mean |
all (full time range)
| Mean DARK ReadOut Noise, chip 4, DIT=2.0 |
| 2 |
• | QC1DB |
MEDIAN |
8.49 |
ADU |
OFF | ± 0.5 |
2917 |
qc_ron_mean |
all (full time range)
| Mean DARK ReadOut Noise, chip 3, DIT=2.0 |
| 3 |
• | QC1DB |
MEDIAN |
5.52 |
ADU |
OFF | ± 2.0 |
2560 |
qc_ron_mean |
all (full time range)
| Mean DARK ReadOut Noise, chip 4, DIT=300 |
| 4 |
• | QC1DB |
MEDIAN |
6.5 |
ADU |
OFF | ± 2.0 |
2560 |
qc_ron_mean |
all (full time range)
| Mean DARK ReadOut Noise, chip 3, DIT=300 |
| 5 |
• | QC1DB |
MEDIAN |
10.4 |
ADU |
OFF | ± 0.5 |
2922 |
qc_ron_mean |
all (full time range)
| Mean DARK ReadOut Noise, chip 1, DIT=2.0 |
| 6 |
• | QC1DB |
MEDIAN |
9.15 |
ADU |
OFF | ± 0.5 |
2909 |
qc_ron_mean |
all (full time range)
| Mean DARK ReadOut Noise, chip 2, DIT=2.0 |
| 7 |
• | QC1DB |
MEDIAN |
6.96 |
ADU |
OFF | ± 2.0 |
2561 |
qc_ron_mean |
all (full time range)
| Mean DARK ReadOut Noise, chip 1, DIT=300 |
| 8 |
• | QC1DB |
MEDIAN |
5.86 |
ADU |
OFF | ± 2.0 |
2560 |
qc_ron_mean |
all (full time range)
| Mean DARK ReadOut Noise, chip 2, DIT=300 |
| |
|
*Data sources: QC1DB: QC1 database; LOCAL: local data source
|
Plot 5
scores: not implemented
| | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 10.4 | ADU |
| rel. thresholds: | 9.874803...10.874803 | ADU |
| N_data plotted: | 2922 |
| [click plot for closeup] |
Plot 6
scores: not implemented
| | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 9.15 | ADU |
| rel. thresholds: | 8.6529685...9.6529685 | ADU |
| N_data plotted: | 2909 |
| [click plot for closeup] |
Plot 2
scores: not implemented
| | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 8.49 | ADU |
| rel. thresholds: | 7.9924385...8.9924385 | ADU |
| N_data plotted: | 2917 |
| [click plot for closeup] |
Plot 1
scores: not implemented
| | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 9.15 | ADU |
| rel. thresholds: | 8.64821...9.64821 | ADU |
| N_data plotted: | 2913 |
| [click plot for closeup] |
Plot 7
scores: not implemented
| | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 6.96 | ADU |
| rel. thresholds: | 4.958084...8.958084 | ADU |
| N_data plotted: | 2561 |
| [click plot for closeup] |
Plot 8
scores: not implemented
| | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 5.86 | ADU |
| rel. thresholds: | 3.8576025...7.8576025 | ADU |
| N_data plotted: | 2560 |
| [click plot for closeup] |
Plot 4
scores: not implemented
| | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 6.5 | ADU |
| rel. thresholds: | 4.501877...8.501877 | ADU |
| N_data plotted: | 2560 |
| [click plot for closeup] |
Plot 3
scores: not implemented
| | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 5.52 | ADU |
| rel. thresholds: | 3.520171...7.520171 | ADU |
| N_data plotted: | 2560 |
| [click plot for closeup] |
Trending report for ReadOut Noise [RON] of the master dark.
QC parameter is derived for each detector of the raw dark frames.
On 2016-11-19 new CASU pipeline was adopted (blue vertical line).
Name:
Fits header: QC.RON.MEAN,
QC1 DB: qc_ron_mean
Description:
The mean of the raw dark ReadOut Noise estimates.
Setup:
DET.DIT=2.0
DET.DIT=300.0

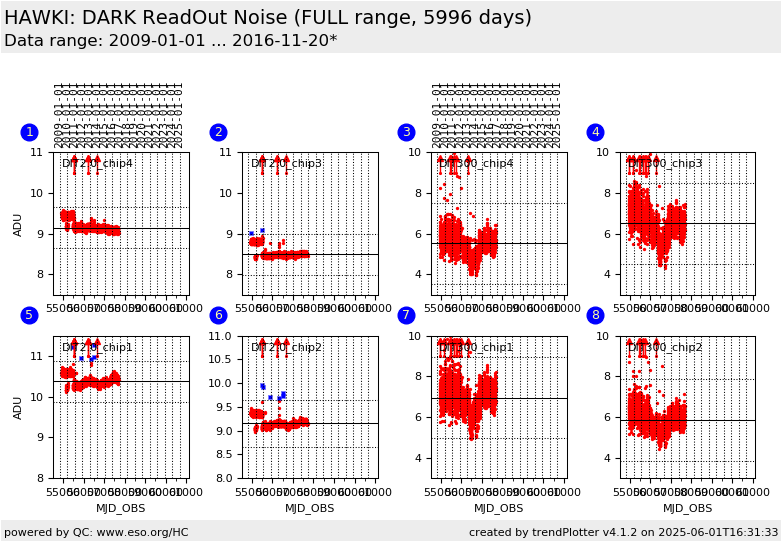

These plots describe:
Fig. 1. chip4: The QC parameter for DIT=2.0 for chip #4.
Fig. 2. chip3: The QC parameter for DIT=2.0 for chip #3.
Fig. 3. chip4: The QC parameter for DIT=300.0 for chip #4.
Fig. 4. chip3: The QC parameter for DIT=300.0 for chip #3.
Fig. 5. chip1: The QC parameter for DIT=2.0 for chip #1.
Fig. 6. chip2: The QC parameter for DIT=2.0 for chip #2.
Fig. 7. chip1: The QC parameter for DIT=300.0 for chip #1.
Fig. 8. chip2: The QC parameter for DIT=300.0 for chip #2.
Find more information on the HAWKI DARK calibration tutorial page.
General information
Click on any of the plots to see a close-up version.
The latest date is indicated on top of the plot.
If configured,
- data points belonging to the latest date are specially marked
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
