Plot
? |
Symb
? |
Source
* |
Average ? |
Thresholds ? |
N_
data |
QC1
parameter |
Data
downloads |
Remarks |
| method |
value |
unit |
method |
value |
| 1 |
• | QC1DB |
MEDIAN |
8.11 |
ADU |
VAL | 8.0,9.5 |
99 |
qc_ron23 |
this |
last_yr |
all
|
Mean DARK ReadOut Noise, chip 4, DIT=2.0 |
| 2 |
• | QC1DB |
MEDIAN |
8.11 |
ADU |
OFF | ± 0.5 |
99 |
qc_ron23 |
this |
last_yr |
all
|
Mean DARK ReadOut Noise, chip 3, DIT=2.0 |
| 3 |
• | QC1DB |
MEDIAN |
5.09 |
ADU |
OFF | ± 2.0 |
97 |
qc_ron23 |
this |
last_yr |
all
|
Mean DARK ReadOut Noise, chip 4, DIT=300 |
| 4 |
• | QC1DB |
MEDIAN |
6.01 |
ADU |
OFF | ± 2.0 |
97 |
qc_ron23 |
this |
last_yr |
all
|
Mean DARK ReadOut Noise, chip 3, DIT=300 |
| 5 |
• | QC1DB |
MEDIAN |
9.81 |
ADU |
VAL | 9.0,11.0 |
99 |
qc_ron23 |
this |
last_yr |
all
|
Mean DARK ReadOut Noise, chip 1, DIT=2.0 |
| 6 |
• | QC1DB |
MEDIAN |
8.76 |
ADU |
OFF | ± 0.5 |
99 |
qc_ron23 |
this |
last_yr |
all
|
Mean DARK ReadOut Noise, chip 2, DIT=2.0 |
| 7 |
• | QC1DB |
MEDIAN |
6.4 |
ADU |
OFF | ± 2.0 |
97 |
qc_ron23 |
this |
last_yr |
all
|
Mean DARK ReadOut Noise, chip 1, DIT=300 |
| 8 |
• | QC1DB |
MEDIAN |
5.75 |
ADU |
OFF | ± 2.0 |
97 |
qc_ron23 |
this |
last_yr |
all
|
Mean DARK ReadOut Noise, chip 2, DIT=300 |
| |
|
*Data sources: QC1DB: QC1 database; LOCAL: local data source
|
| Plot 5 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron23 | • |
| median: | 9.81 | ADU |
| fixed thresholds: | 9.0...11.0 | ADU |
| N_data plotted: | 99 |
| [click plot for closeup] |
| Plot 6 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron23 | • |
| median: | 8.76 | ADU |
| rel. thresholds: | 8.264589...9.264589 | ADU |
| N_data plotted: | 99 |
| [click plot for closeup] |
| Plot 2 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron23 | • |
| median: | 8.11 | ADU |
| rel. thresholds: | 7.610516...8.610516 | ADU |
| N_data plotted: | 99 |
| [click plot for closeup] |
| Plot 1 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron23 | • |
| median: | 8.11 | ADU |
| fixed thresholds: | 8.0...9.5 | ADU |
| N_data plotted: | 99 |
| [click plot for closeup] |
| Plot 7 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron23 | • |
| median: | 6.4 | ADU |
| rel. thresholds: | 4.4046275...8.4046275 | ADU |
| N_data plotted: | 97 |
| [click plot for closeup] |
| Plot 8 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron23 | • |
| median: | 5.75 | ADU |
| rel. thresholds: | 3.745177...7.745177 | ADU |
| N_data plotted: | 97 |
| [click plot for closeup] |
| Plot 4 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron23 | • |
| median: | 6.01 | ADU |
| rel. thresholds: | 4.011072...8.011072 | ADU |
| N_data plotted: | 97 |
| [click plot for closeup] |
| Plot 3 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron23 | • |
| median: | 5.09 | ADU |
| rel. thresholds: | 3.0891195...7.0891195 | ADU |
| N_data plotted: | 97 |
| [click plot for closeup] |
Trending report for ReadOut Noise [RON] of the master dark.
QC parameter is derived for each detector of the raw dark frames.
On 2016-11-19 new CASU pipeline was adopted (blue vertical line).
Name:
Fits header: QC.RON.MEAN,
QC1 DB: qc_ron_mean
Description:
The mean of the raw dark ReadOut Noise estimates.
Setup:
DET.DIT=2.0
DET.DIT=300.0

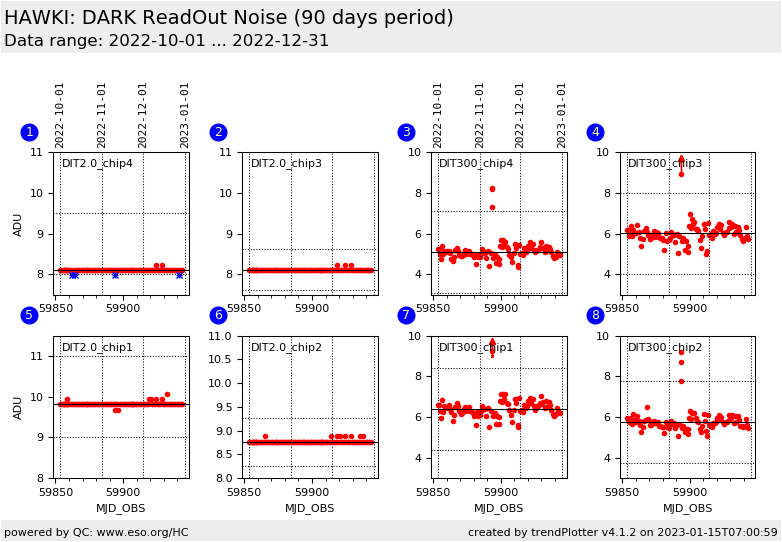

These plots describe:
Fig. 1. chip4: The QC parameter for DIT=2.0 for chip #4.
Fig. 2. chip3: The QC parameter for DIT=2.0 for chip #3.
Fig. 3. chip4: The QC parameter for DIT=300.0 for chip #4.
Fig. 4. chip3: The QC parameter for DIT=300.0 for chip #3.
Fig. 5. chip1: The QC parameter for DIT=2.0 for chip #1.
Fig. 6. chip2: The QC parameter for DIT=2.0 for chip #2.
Fig. 7. chip1: The QC parameter for DIT=300.0 for chip #1.
Fig. 8. chip2: The QC parameter for DIT=300.0 for chip #2.
Find more information on the HAWKI DARK calibration tutorial page.
General information
Click on any of the plots to see a close-up version.
The latest date is indicated on top of the plot.
If configured,
- data points belonging to the latest date are specially marked
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
