*Data sources: QC1DB: QC1 database; LOCAL: local text file
|
| Plot 5 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 10.4 | ADU |
| rel. thresholds: | 9.852783...10.852783 | ADU |
| N_data plotted: | 85 |
| [click on plot for closeup] |
| Plot 6 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 9.14 | ADU |
| rel. thresholds: | 8.640257...9.640257 | ADU |
| N_data plotted: | 85 |
| [click on plot for closeup] |
| Plot 2 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 8.47 | ADU |
| rel. thresholds: | 7.974297...8.974297 | ADU |
| N_data plotted: | 85 |
| [click on plot for closeup] |
| Plot 1 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 9.13 | ADU |
| rel. thresholds: | 8.629836...9.629836 | ADU |
| N_data plotted: | 85 |
| [click on plot for closeup] |
| Plot 7 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 6.21 | ADU |
| rel. thresholds: | 4.210096...8.210096 | ADU |
| N_data plotted: | 83 |
| [click on plot for closeup] |
| Plot 8 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 5.33 | ADU |
| rel. thresholds: | 3.32997...7.32997 | ADU |
| N_data plotted: | 83 |
| [click on plot for closeup] |
| Plot 4 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 5.59 | ADU |
| rel. thresholds: | 3.588716...7.588716 | ADU |
| N_data plotted: | 83 |
| [click on plot for closeup] |
| Plot 3 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 4.8 | ADU |
| rel. thresholds: | 2.803774...6.803774 | ADU |
| N_data plotted: | 83 |
| [click on plot for closeup] |
Trending report for ReadOut Noise [RON] of the master dark.
QC parameter is derived for each detector of the raw dark frames.
On 2016-11-19 new CASU pipeline was adopted (blue vertical line).
Name:
Fits header: QC.RON.MEAN,
QC1 DB: qc_ron_mean
Description:
The mean of the raw dark ReadOut Noise estimates.
Setup:
DET.DIT=2.0
DET.DIT=300.0

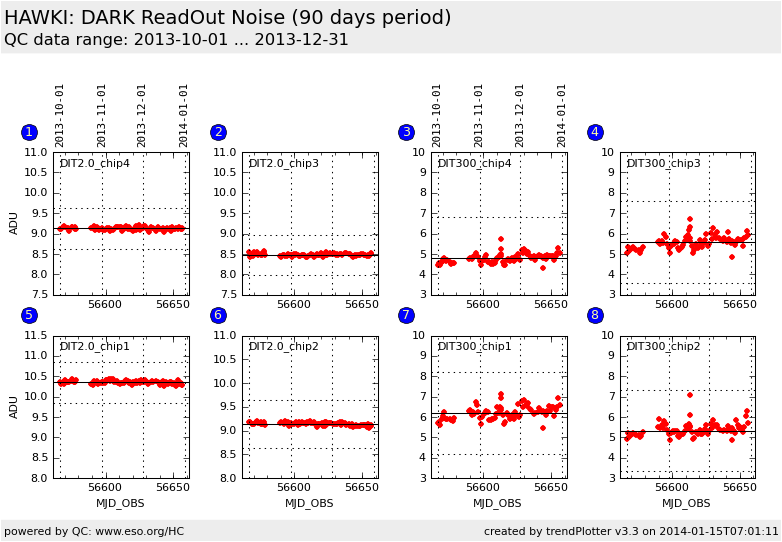

These plots describe:
Fig. 1. chip4: The QC parameter for DIT=2.0 for chip #4.
Fig. 2. chip3: The QC parameter for DIT=2.0 for chip #3.
Fig. 3. chip4: The QC parameter for DIT=300.0 for chip #4.
Fig. 4. chip3: The QC parameter for DIT=300.0 for chip #3.
Fig. 5. chip1: The QC parameter for DIT=2.0 for chip #1.
Fig. 6. chip2: The QC parameter for DIT=2.0 for chip #2.
Fig. 7. chip1: The QC parameter for DIT=300.0 for chip #1.
Fig. 8. chip2: The QC parameter for DIT=300.0 for chip #2.
Find more information on the HAWKI DARK calibration tutorial page.
General information
Click on any of the plots to see a close-up version.
The latest date is indicated on top of the plot, data points belonging to that date are specially marked.
If configured,
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
