Plot
? |
Symb
? |
Source
* |
Average ? |
Thresholds ? |
N_
data |
QC1
parameter |
Data
downloads |
Remarks |
| method |
value |
unit |
method |
value |
| 1 |
• | QC1DB |
MEDIAN |
9.15 |
ADU |
OFF | ± 0.5 |
101 |
qc_ron_mean |
this |
last_yr |
all
|
Mean DARK ReadOut Noise, chip 4, DIT=2.0 |
| 2 |
• | QC1DB |
MEDIAN |
8.48 |
ADU |
OFF | ± 0.5 |
101 |
qc_ron_mean |
this |
last_yr |
all
|
Mean DARK ReadOut Noise, chip 3, DIT=2.0 |
| 3 |
• | QC1DB |
MEDIAN |
4.56 |
ADU |
OFF | ± 2.0 |
97 |
qc_ron_mean |
this |
last_yr |
all
|
Mean DARK ReadOut Noise, chip 4, DIT=300 |
| 4 |
• | QC1DB |
MEDIAN |
5.24 |
ADU |
OFF | ± 2.0 |
97 |
qc_ron_mean |
this |
last_yr |
all
|
Mean DARK ReadOut Noise, chip 3, DIT=300 |
| 5 |
• | QC1DB |
MEDIAN |
10.4 |
ADU |
OFF | ± 0.5 |
101 |
qc_ron_mean |
this |
last_yr |
all
|
Mean DARK ReadOut Noise, chip 1, DIT=2.0 |
| 6 |
• | QC1DB |
MEDIAN |
9.14 |
ADU |
OFF | ± 0.5 |
101 |
qc_ron_mean |
this |
last_yr |
all
|
Mean DARK ReadOut Noise, chip 2, DIT=2.0 |
| 7 |
• | QC1DB |
MEDIAN |
5.82 |
ADU |
OFF | ± 2.0 |
97 |
qc_ron_mean |
this |
last_yr |
all
|
Mean DARK ReadOut Noise, chip 1, DIT=300 |
| 8 |
• | QC1DB |
MEDIAN |
5.1 |
ADU |
OFF | ± 2.0 |
97 |
qc_ron_mean |
this |
last_yr |
all
|
Mean DARK ReadOut Noise, chip 2, DIT=300 |
| |
|
*Data sources: QC1DB: QC1 database; LOCAL: local text file
|
| Plot 5 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 10.4 | ADU |
| rel. thresholds: | 9.868986...10.868986 | ADU |
| N_data plotted: | 101 |
| [click on plot for closeup] |
| Plot 6 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 9.14 | ADU |
| rel. thresholds: | 8.641229...9.641229 | ADU |
| N_data plotted: | 101 |
| [click on plot for closeup] |
| Plot 2 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 8.48 | ADU |
| rel. thresholds: | 7.980051...8.980051 | ADU |
| N_data plotted: | 101 |
| [click on plot for closeup] |
| Plot 1 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 9.15 | ADU |
| rel. thresholds: | 8.648162...9.648162 | ADU |
| N_data plotted: | 101 |
| [click on plot for closeup] |
| Plot 7 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 5.82 | ADU |
| rel. thresholds: | 3.820277...7.820277 | ADU |
| N_data plotted: | 97 |
| [click on plot for closeup] |
| Plot 8 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 5.1 | ADU |
| rel. thresholds: | 3.1000315...7.1000315 | ADU |
| N_data plotted: | 97 |
| [click on plot for closeup] |
| Plot 4 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 5.24 | ADU |
| rel. thresholds: | 3.238899...7.238899 | ADU |
| N_data plotted: | 97 |
| [click on plot for closeup] |
| Plot 3 | | data source: | hawki_dark
(QC1 database) |
| dataset: | qc_ron_mean | • |
| median: | 4.56 | ADU |
| rel. thresholds: | 2.5625575...6.5625575 | ADU |
| N_data plotted: | 97 |
| [click on plot for closeup] |
Trending report for ReadOut Noise [RON] of the master dark.
QC parameter is derived for each detector of the raw dark frames.
On 2016-11-19 new CASU pipeline was adopted (blue vertical line).
Name:
Fits header: QC.RON.MEAN,
QC1 DB: qc_ron_mean
Description:
The mean of the raw dark ReadOut Noise estimates.
Setup:
DET.DIT=2.0
DET.DIT=300.0

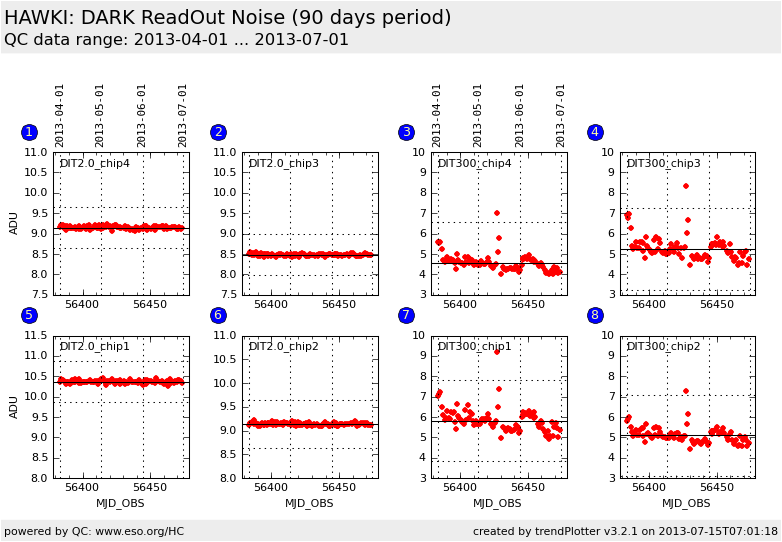

These plots describe:
Fig. 1. chip4: The QC parameter for DIT=2.0 for chip #4.
Fig. 2. chip3: The QC parameter for DIT=2.0 for chip #3.
Fig. 3. chip4: The QC parameter for DIT=300.0 for chip #4.
Fig. 4. chip3: The QC parameter for DIT=300.0 for chip #3.
Fig. 5. chip1: The QC parameter for DIT=2.0 for chip #1.
Fig. 6. chip2: The QC parameter for DIT=2.0 for chip #2.
Fig. 7. chip1: The QC parameter for DIT=300.0 for chip #1.
Fig. 8. chip2: The QC parameter for DIT=300.0 for chip #2.
Find more information on the HAWKI DARK calibration tutorial page.
