Trending report for ReadOut Noise [RON] of the master dark.
QC parameter is derived for each detector of the raw dark frames.
On 2016-11-19 new CASU pipeline was adopted (blue vertical line).
Name:
Fits header: QC.RON.MEAN,
QC1 DB: qc_ron_mean
Description:
The mean of the raw dark ReadOut Noise estimates.
Setup:
DET.DIT=2.0
DET.DIT=300.0

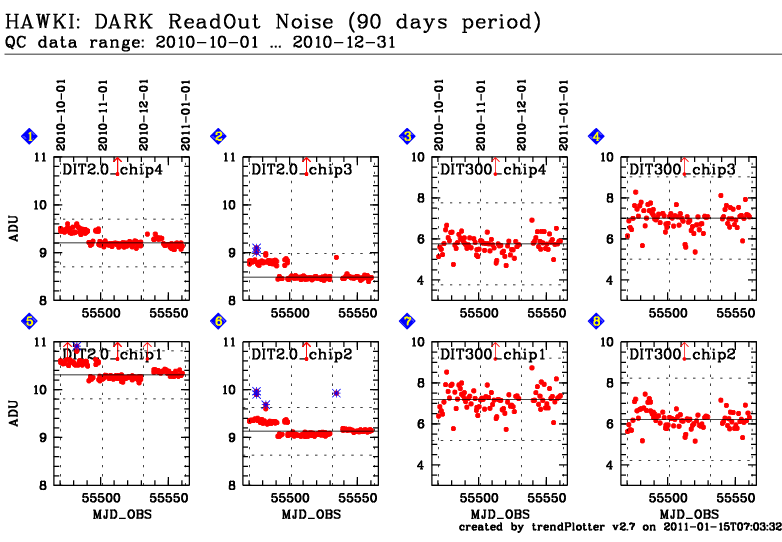

These plots describe:

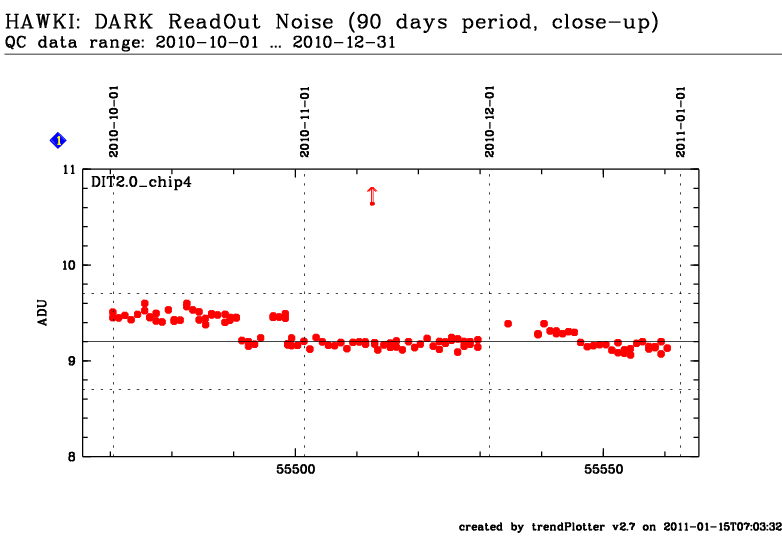

Fig. 1. chip4: The QC parameter for DIT=2.0 for chip #4.

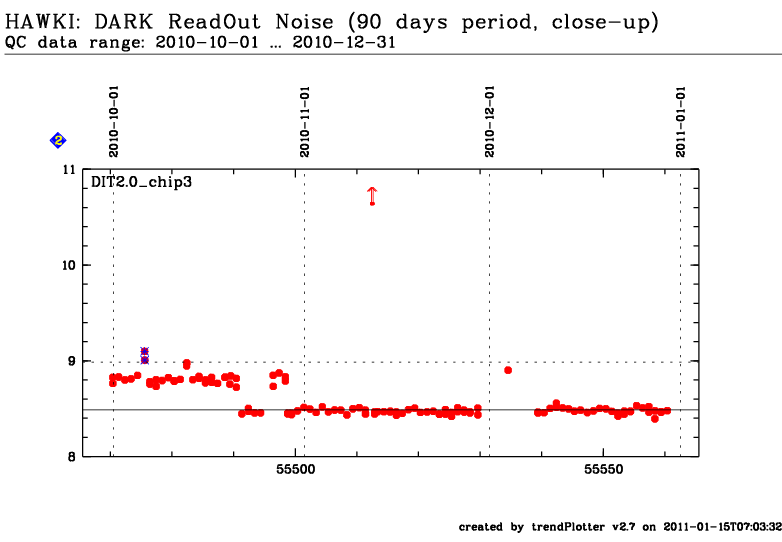

Fig. 2. chip3: The QC parameter for DIT=2.0 for chip #3.

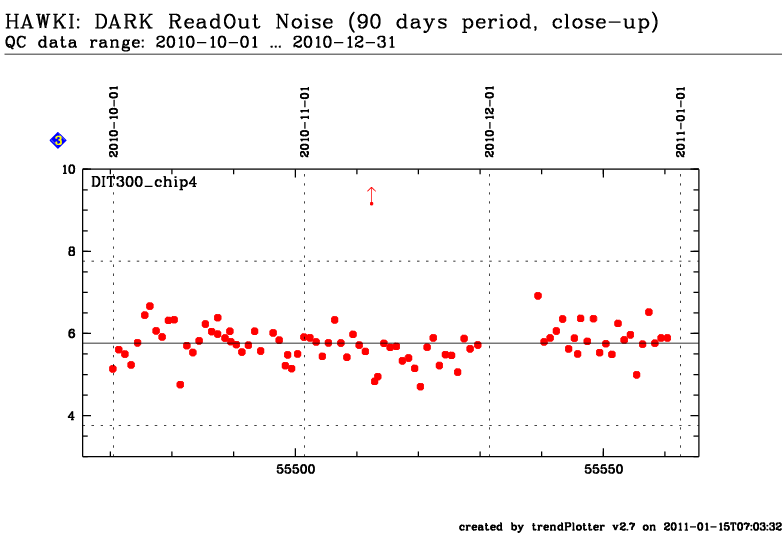

Fig. 3. chip4: The QC parameter for DIT=300.0 for chip #4.

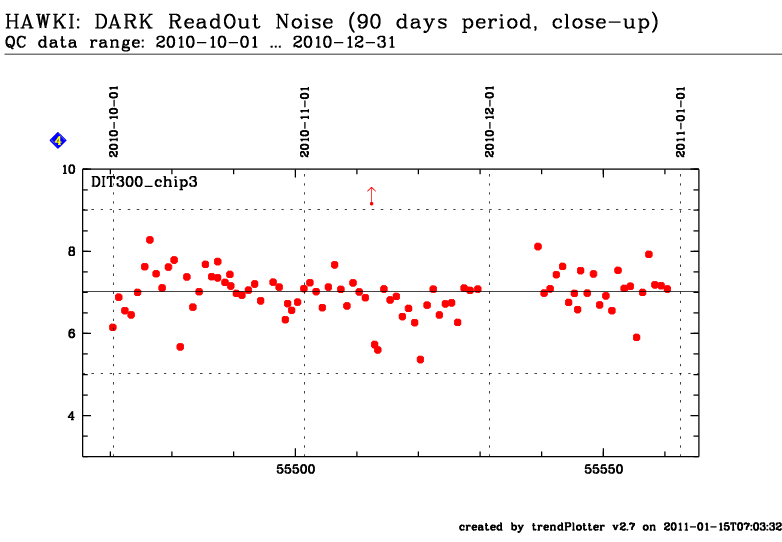

Fig. 4. chip3: The QC parameter for DIT=300.0 for chip #3.
Fig. 5. chip1: The QC parameter for DIT=2.0 for chip #1.

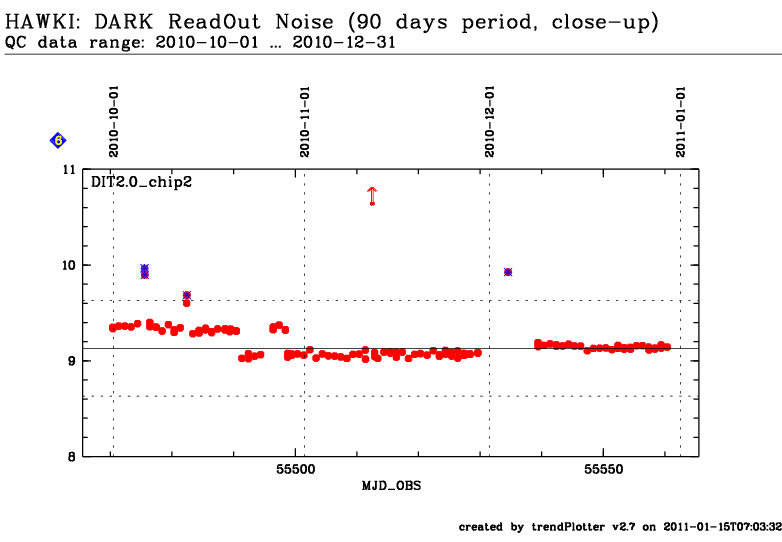

Fig. 6. chip2: The QC parameter for DIT=2.0 for chip #2.

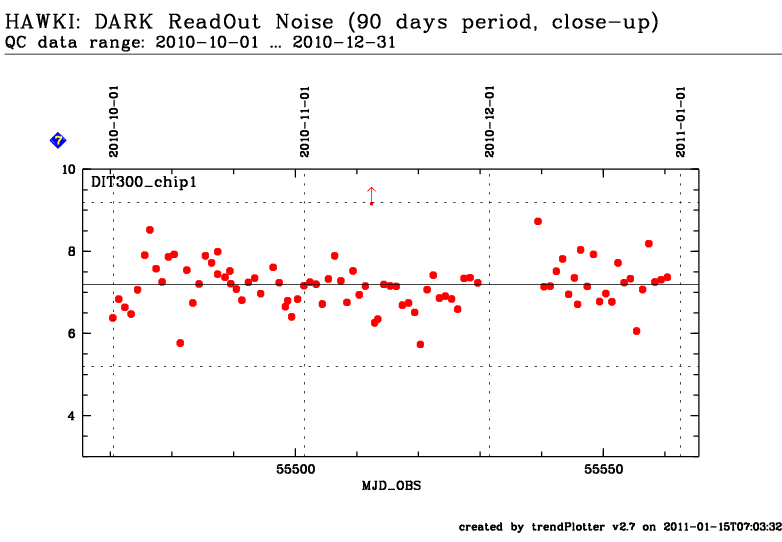

Fig. 7. chip1: The QC parameter for DIT=300.0 for chip #1.

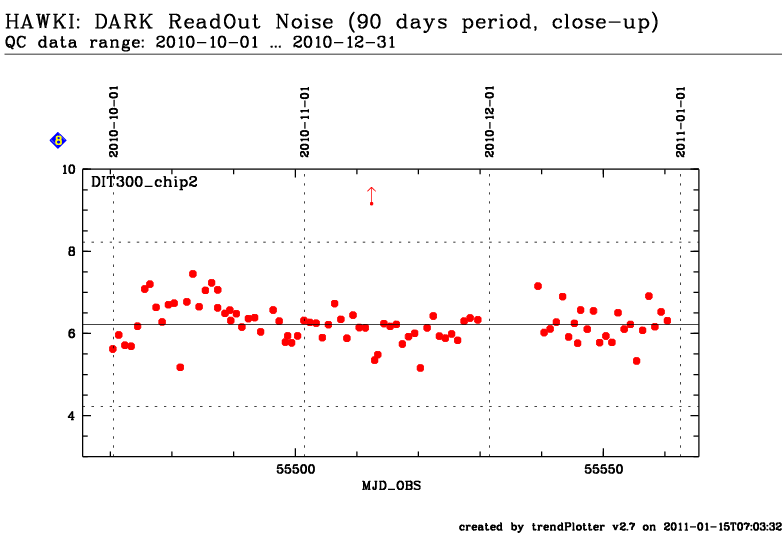

Fig. 8. chip2: The QC parameter for DIT=300.0 for chip #2.
Find more information on the HAWKI DARK calibration tutorial page.
General information
Click on any of the plots to see a close-up version.
The latest date is indicated on top of the plot, data points belonging to that date are specially marked.
If configured,
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
