acstime.midl File Reference

import "baci.idl";
#include "ACSTimeError.idl"

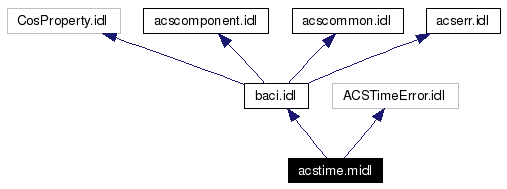

Include dependency graph for acstime.midl:

Go to the source code of this file.

Namespaces
namespace	acstime
Classes
struct	acstime::Epoch
struct	acstime::Duration
interface	acstime::TimeoutHandler
interface	acstime::Timer
interface	acstime::Clock
Enumerations
enum	TimeComparison { TCEqualTo, TCLessThan, TCGreaterThan, TCIndeterminate }
enum	TimeSystem { TSArray, TSTAI, TSUTC }
Variables
const ACS::Time	ACE_BEGIN = 122192928000000000
const unsigned long	STARTDATE = 577735
const double	EpochOriginInMJD = -100840.0
const double	EpochOriginInYears = 1582.793292

---

Enumeration Type Documentation

enum TimeComparison

The possible values that can be returned by comparing Durations/Epochs. This definition is taken from the CORBA Time Service. "TCIndeterminate" is not used here and could be removed. DWF-how are these being used or are they being used at all??? Enumeration values: TCEqualTo  TCLessThan  TCGreaterThan  TCIndeterminate

enum TimeSystem

The time systems that have some form of ACS support. Enumeration values: TSArray  TSTAI  TSUTC

---

Variable Documentation

const ACS::Time acstime::ACE_BEGIN = 122192928000000000

ACS time at which ACE time begins, 1970-01-01 00:00:00

const double acstime::EpochOriginInMJD = -100840.0

Modified Julian Day (MJD) of Oct 15, 1582 0h UT = Epoch start time.

const double acstime::EpochOriginInYears = 1582.793292

Julian Date in years of Oct 15, 1582 0h UT = Epoch start time.

const unsigned long acstime::STARTDATE = 577735

CORBA Time Service start date (1582-Oct-15)

---
