acscommon.idl File Reference

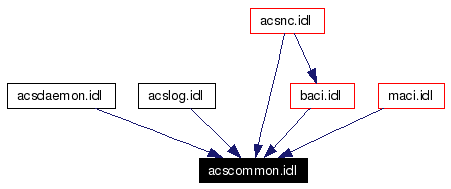

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	ACS
namespace	log_audience
namespace	acscommon
Typedefs
typedef unsigned long long	Time
typedef long long	TimeInterval
typedef unsigned long long	pattern
typedef long long	longLong
typedef unsigned long long	uLongLong
typedef sequence< string >	stringSeq
typedef sequence< Time >	TimeSeq
typedef sequence< TimeInterval >	TimeIntervalSeq
typedef sequence< Condition >	ConditionSeq
typedef sequence< pattern >	patternSeq
typedef sequence< double >	doubleSeq
typedef sequence< float >	floatSeq
typedef sequence< long >	longSeq
typedef sequence< doubleSeq >	doubleSeqSeq
typedef sequence< floatSeq >	floatSeqSeq
typedef sequence< longSeq >	longSeqSeq
typedef sequence< stringSeq >	stringSeqSeq
typedef sequence< longLong >	longLongSeq
typedef sequence< uLongLong >	uLongLongSeq
typedef unsigned long long	TimeStamp
Enumerations
enum	Condition { RED, YELLOW, GREEN, GREY }
Variables
const string	OPERATOR = "Operator"
const string	DEVELOPER = "Developer"
const string	SYSADMIN = "Sysadmin"
const string	DBA = "DBA"
const string	NO_AUDIENCE = ""
const string	LOG_FACTORY_NAME = "LogFactory"
const string	NOTIFICATION_FACTORY_NAME = "NotifyEventChannelFactory"
const string	LOGGING_NOTIFICATION_FACTORY_NAME = "LoggingNotifyEventChannelFactory"
const string	ARCHIVE_NOTIFICATION_FACTORY_NAME = "ArchiveNotifyEventChannelFactory"
const string	ALARM_NOTIFICATION_FACTORY_NAME = "AlarmNotifyEventChannelFactory"
const string	NAMING_SERVICE_NAME = "NameService"
const string	ALMADOMAIN = "ALMA"
const string	ARCHIVING_DOMAIN = "Archiving"
const string	LOGGING_DOMAIN = "Logging"
const string	ARCHIVING_CHANNEL_NAME = "ArchivingChannel"
const string	ARCHIVING_CHANNEL_KIND = ""
const string	LOGGING_CHANNEL_NAME = "LoggingChannelBin"
const string	LOGGING_CHANNEL_XML_NAME = "LoggingChannel"
const string	LOGGING_CHANNEL_KIND = ""
const string	DEFAULTDATANAME = "almaData"
const string	NC_KIND = "channels"
const string	LOGGING_TYPE = ""

---

Typedef Documentation

typedef sequence<Condition> ACS::ConditionSeq

A sequence of Condition. See stringSeq for more on sequences.

typedef sequence<double> ACS::doubleSeq

A sequence of double. See stringSeq for more on sequences.

typedef sequence<doubleSeq> ACS::doubleSeqSeq

Sequences of doubleSeq, following the same naming pattern as simple sequences.

typedef sequence<float> ACS::floatSeq

A sequence of float. See stringSeq for more on sequences.

typedef sequence<floatSeq> ACS::floatSeqSeq

Sequences of floatSeq, following the same naming pattern as simple sequences.

typedef long long ACS::longLong

A 64-bit signed integer

typedef sequence<longLong> ACS::longLongSeq

A sequence of longLong. See stringSeq for more on sequences.

typedef sequence<long> ACS::longSeq

A sequence of long. See stringSeq for more on sequences.

typedef sequence<longSeq> ACS::longSeqSeq

Sequences of longSeq, following the same naming pattern as simple sequences.

typedef unsigned long long ACS::pattern

A 64-bit long used as a pattern of 64 bits.

typedef sequence<pattern> ACS::patternSeq

A sequence of pattern. See stringSeq for more on sequences.

typedef sequence<string> ACS::stringSeq

Sequences are used extensively with components that deal with multiple devices (groups) or properties, which manage a value of sequence type. Sequences defined by BACI are also used to optimize the number of network calls needed to query a remote object. The naming pattern is always <type>Seq.

typedef sequence<stringSeq> ACS::stringSeqSeq

Sequences of stringSeq, following the same naming pattern as simple sequences.

typedef unsigned long long ACS::Time

Time - absolute time in 100 ns since 1582-10-15 00:00:00 see OMG Time Service Specification, ftp://ftp.omg.org/pub/docs/formal/97-12-21.pdf. Currently, Time is handled as longlong.

typedef long long ACS::TimeInterval

TimeInterval - difference between two absolute time points.

typedef sequence<TimeInterval> ACS::TimeIntervalSeq

A sequence of TimeInterval. See stringSeq for more on sequences.

typedef sequence<Time> ACS::TimeSeq

A sequence of Time. See stringSeq for more on sequences.

typedef unsigned long long acscommon::TimeStamp

typedef unsigned long long ACS::uLongLong

A 64-bit unsigned integer

typedef sequence<uLongLong> ACS::uLongLongSeq

A sequence of uLongLong. See stringSeq for more on sequences.

---

Enumeration Type Documentation

enum Condition

Possible state conditions of a physical device. The names correspond to colours of typical LEDs. Enumeration values: RED  RED implies the physical device is in an error state. YELLOW  YELLOW implies the physical device is in a caution state. GREEN  RED implies the physical device is in an OK state. GREY  RED implies the physical device is turned off.

---

Variable Documentation

const string acscommon::ALARM_NOTIFICATION_FACTORY_NAME = "AlarmNotifyEventChannelFactory"

ALARM_NOTIFICATION_FACTORY_NAME is the CORBA service used to create new event channels for Alarms.

const string acscommon::ALMADOMAIN = "ALMA"

Domain for notification channels. This domain is used for ICD-style events shared between ALMA subsystems. Todo: Should this be renamed ALMA_DOMAIN?

const string acscommon::ARCHIVE_NOTIFICATION_FACTORY_NAME = "ArchiveNotifyEventChannelFactory"

ARCHIVE_NOTIFICATION_FACTORY_NAME is the CORBA service used to create new event channels for events sent directly to the ALMA Archive.

const string acscommon::ARCHIVING_CHANNEL_KIND = ""

Kind of the notification channel (as registered with the Naming Service) that contains events from BACI properties to be stored in the ALMA Archive.

const string acscommon::ARCHIVING_CHANNEL_NAME = "ArchivingChannel"

Name of the notification channel (as registered with the Naming Service) that contains events from BACI properties to be stored in the ALMA Archive.

const string acscommon::ARCHIVING_DOMAIN = "Archiving"

Domain for notification channels. This domain is used for events sent to the ALMA Archive.

const string log_audience::DBA = "DBA"

const string acscommon::DEFAULTDATANAME = "almaData"

DEFAULTDATANAME is just something that needs to be packed into Structured Events. This defines the name of the data structure being used where filtering is applicable.

const string log_audience::DEVELOPER = "Developer"

const string acscommon::LOG_FACTORY_NAME = "LogFactory"

The name of the ACS logging service as registered with the CORBA Naming Service.

const string acscommon::LOGGING_CHANNEL_KIND = ""

Kind of the notification channel (as registered with the Naming Service) that contains events from BACI properties to be stored in the ALMA Archive.

const string acscommon::LOGGING_CHANNEL_NAME = "LoggingChannelBin"

Name of the notification channel (as registered with the Naming Service) that contains logs in "binary" idl way.

const string acscommon::LOGGING_CHANNEL_XML_NAME = "LoggingChannel"

Name of the notification channer that contains the logs in xml

const string acscommon::LOGGING_DOMAIN = "Logging"

Domain for notification channels. This domain is used for logging events sent.

const string acscommon::LOGGING_NOTIFICATION_FACTORY_NAME = "LoggingNotifyEventChannelFactory"

LOGGING_NOTIFICATION_FACTORY_NAME is the CORBA service used to create new event channels for log events.

const string acscommon::LOGGING_TYPE = ""

Type field of logging events.

const string acscommon::NAMING_SERVICE_NAME = "NameService"

NAMING_SERVICE_NAME is the name of the CORBA service which binds names to CORBA objects.

const string acscommon::NC_KIND = "channels"

NC_KIND stands for naming context kind. Whenever we attach a channel to the Naming Service, we use the "kind" type to hopefully ensure nothing overwrites the NC_ID orphaned context.

const string log_audience::NO_AUDIENCE = ""

const string acscommon::NOTIFICATION_FACTORY_NAME = "NotifyEventChannelFactory"

NOTIFICATION_FACTORY_NAME is the CORBA service used to create new event channels.

const string log_audience::OPERATOR = "Operator"

const string log_audience::SYSADMIN = "Sysadmin"

---
