XSHOOTER trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-11-12T22:41:44 (UT)
  | now: 2024-11-13T12:24:36 (UT) muc02 QC pipeline: xshoo-3.6.5a (installed 2023-09-18)
same group: flat_HC_IFU slice_rms   flat_IFU flat_SLIT arc_lamp spectrum SLIT stdev
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
XSHOOTER news:
Report news:
DATE*: [?] 2024-11-06
no data | NLT 		2024-11-07
no data | NLT 		2024-11-08
no data | NLT 		2024-11-09
report | NLT 		2024-11-10
report | NLT 		2024-11-11
report | NLT 		2024-11-12
report | NLT
r...
Raw CAL displays:
no CAL raw files no CAL raw files no CAL raw files no CAL raw files no CAL raw files raw no CAL raw files
P...
CAL product quality:
no CAL products no CAL products no CAL products no CAL products no CAL products products no CAL products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?] 		*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB MEDIAN 0.0466 ADU VAL0.04,0.08 156 slice2_rms this | last_yr | all rms over three slice (of a red or a blue echelle order) window counts
2 •QC1DB MEDIAN 0.0729 ADU VAL0.05,0.12 156 slice_rms this | last_yr | all rms over three slice (of a red or a blue echelle order) window counts
3 •QC1DB none   NONE none  406 ambient_humidity this | last_yr | all relative humidity (extracted form flexure compensation frames
4 •QC1DB MEDIAN 0.0277 ADU VAL0,0.17 156 slice2_s_rms this | last_yr | all relative difference between to two outer slices (of a red or a blue echelle order) window counts
5 •QC1DB MEDIAN 0.0188 ADU VAL-0.01,0.18 156 slice_s_rms this | last_yr | all relative difference between to two outer slices (of a red or a blue echelle order) window counts
6 oQC1DB none   ratio none  13 flux_order_ratio this | last_yr | all counts ratio between the blue and the red ecehlle order (IFU flats only; 5 raw frames)
6 •QC1DB MEDIAN 0.554 ratio OFF± 0.1 156 flux_order_ratio this | last_yr | all counts ratio between the blue and the red echelle order (IFU HC flats only)
*Data sources: QC1DB: QC1 database; LOCAL: local data source

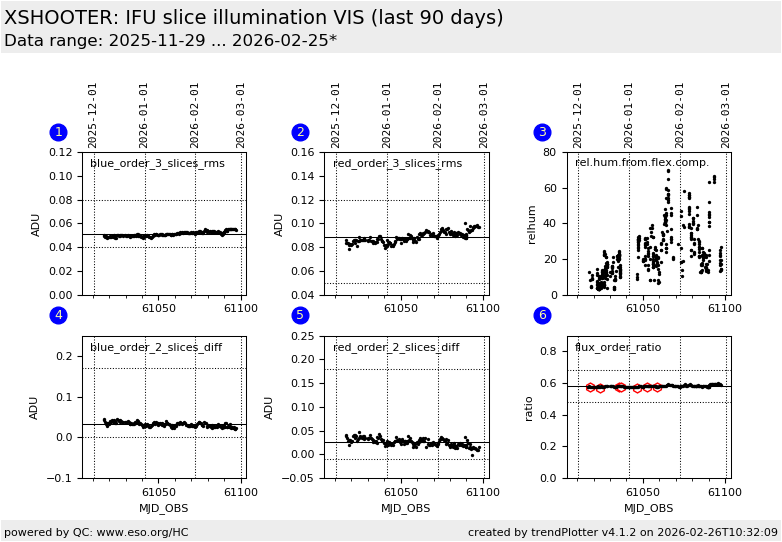

Plot 1
scores: 4|
data source:xshooter_flat
(QC1 database)
dataset:slice2_rms•
median:0.0466ADU
fixed thresholds:0.04...0.08ADU
N_data plotted:156
[click plot for closeup]
Plot 2
scores: 4|
data source:xshooter_flat
(QC1 database)
dataset:slice_rms•
median:0.0729ADU
fixed thresholds:0.05...0.12ADU
N_data plotted:156
[click plot for closeup]
Plot 3
scores: not implemented
data source:xshooter_flexure
(QC1 database)
dataset:ambient_humidity•
average:none
thresholds:none
N_data plotted:406
[click plot for closeup]
Plot 4
scores: 4|
data source:xshooter_flat
(QC1 database)
dataset:slice2_s_rms•
median:0.0277ADU
fixed thresholds:0...0.17ADU
N_data plotted:156
[click plot for closeup]
Plot 5
scores: 4|
data source:xshooter_flat
(QC1 database)
dataset:slice_s_rms•
median:0.0188ADU
fixed thresholds:-0.01...0.18ADU
N_data plotted:156
[click plot for closeup]
Plot 6
scores: 4|
data source:xshooter_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)		flux_order_ratioo
average:none
thresholds:none
N_data plotted:13
[click plot for closeup]
This plot

This plot shows two QC parameters measuring the illumination distribution within IFU FLATs. Both kind of IFU flats contribute:

  • IFU health check flats generated from one (VIS) or two (NIR/UVB) raw flats and
  • IFU master flats generated from five (VIS) or ten (UVB/NIR) raw flats, acquired to calibrate science data.

General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
