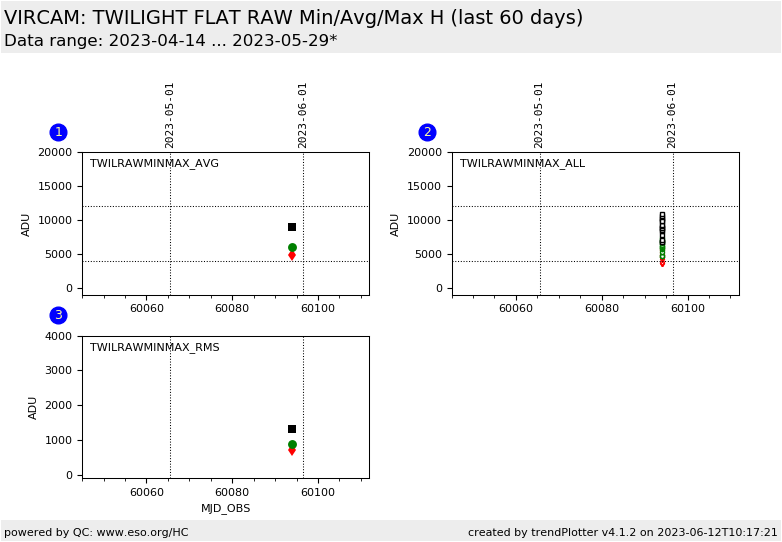

Trending plot for Minimum, Average, and Maximum of raw frame medians.
QC parameters is derived from the twilight flat raw frame input stack.
Name:QC_RAWMED_AVG
Fits header: QC.FLATMIN, QC.FLATAVG, QC.FLATMAX
QC1 DB: qc_twflat_medmin, qc_twflat_medavg, qc_twflat_medmax
Description:
Retrieve from each raw frame the median of the flux level. Take the average, the maximum mand the minimum of the sample of all raw frame medians.
Setup:
INS.FILT1.NAME = H
These plots describe:
Fig. 1. Average view: The QC parameter averaged over all detectors.
This view is sensitive to common changes.
Fig. 2. Resolved View: The QC parameter resolved for all detectors.
Fig. 3. Scatter View: The standard deviation of the QC parameter, obtained from the sample of all detectors.
This view is sensitive changes of individual detectors.
Fig. 4. Extra: PRO.DATANCOM, the number of raw frames which
contributed to the master twilight flat.
The twilight flat recipe accepts only raw frames with counts between 4000 and 12000 ADU.
Brighter and fainter raw flat frames are rejected when generating a master
twilight flat.
Per detector: Master flats composed of less than 5 accepted raw frames are scored red.
Find more information on the VIRCAM TWILIGHT FLAT tutorial page.
