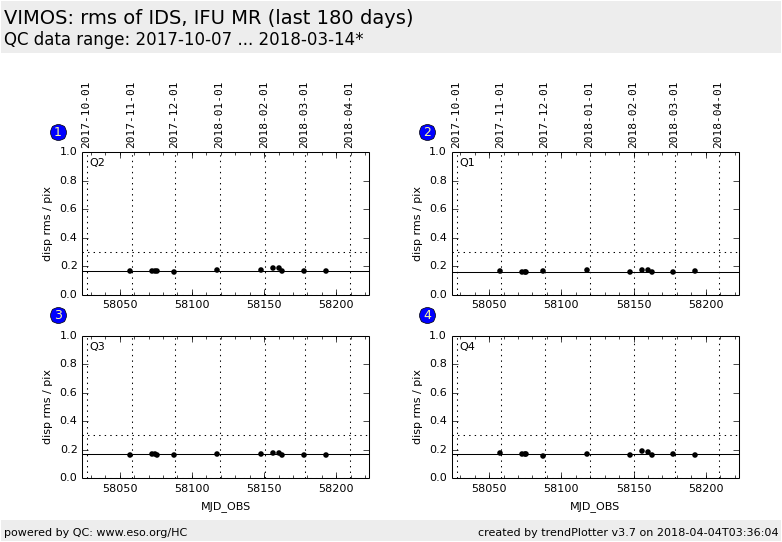

Trending plot for the rms of the dispersion solution for IFU calibrations.
The values should show a stable trend without sudden outliers. Since the
dispersion solution is usually very stable, any values above 0.3 to 0.5 pixels
(depending on the setting) are a concern.
Since October 2010, values for the
dispersion rms vary for Q3 and Q4 because of variable flux from the He and Ne
lamps.
There are occasional pipeline failures in Q2 for daily Health Check
calibrations of IFU LR_red; these give an artificially
high value for the RMS of the dispersion solution.
Settings HR_orange and LR_red are usually measured daily; other settings only when science frames have been observed.
Template ID: ifu_cal_DayCalib (daytime Health Checks), ifu_cal_NightCalib
(attached night-time). Pipeline recipe: vmifucalib.
