g_SDSS stellar ellipticity (1 - b/a) averaged over all 32 detectors |
2 |
| QC1DB |
MEDIAN |
0.0108 |
none |
VAL | 0.0,0.2 |
152 |
qc_std_ellipticity |
this |
last_yr |
all
|
g_SDSS standard deviation of the stellar ellipticity |
3 |
| QC1DB |
MEDIAN |
0.0508 |
none |
none | |
4025 |
qc_std_ellipticity |
this |
last_yr |
all
|
g_SDSS stellar ellipticity (1 - b/a) for each individual detector |
|
*Data sources: QC1DB: QC1 database; LOCAL: local data source
|
Plot 1 scores: 16|
| data source: | omegacam_std (QC1 database) |
dataset: | qc_std_ellipticity | |
median: | 0.0449 | none |
fixed thresholds: | 0.0...0.2 | none |
N_data plotted: | 152 |
[click plot for closeup] |
Plot 2 scores: 16|
| data source: | omegacam_std (QC1 database) |
dataset: | qc_std_ellipticity | |
median: | 0.0108 | none |
fixed thresholds: | 0.0...0.2 | none |
N_data plotted: | 152 |
[click plot for closeup] |
Plot 3 scores: not implemented
| data source: | omegacam_std (QC1 database) |
dataset: | qc_std_ellipticity | |
median: | 0.0508 | none |
thresholds: | none | |
N_data plotted: | 4025 |
[click plot for closeup] |
This plot
Trending plots for standard star image quality (Ellipticity): g_SDSS .
QC parameters are derived from each of 32 detectors of OmegaCAM STD,ZEROPOINT frames.
DB Name: omegacam_std
Fits header: QC.STD.ELLIPTICITY
QC1 DB: qc_std_ellipticity
Description:
The ellipticity (1 - b/a) is measured only for source identified as
stellar (CLASS_STAR >= 0.90 from the SExtractor detection) and is contained in the pipeline product frame ZEROPOINTS
Setup:
BIN.X / BIN.Y / READ.MODE / READ.SPEED = 1/1/normal/normal

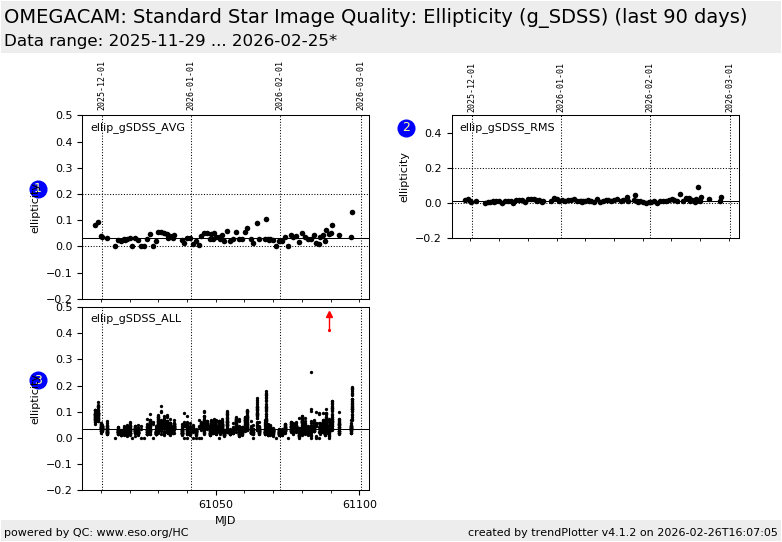

These Health Check plots describe:
Fig. 1 ellip_rSDSS_AVG: The g_SDSS stellar ellipticities (1-b/a) averaged over all 32 detectors.
This plot is sensitive to any changes common to all detectors.
Fig. 2 ellip_rSDSS_ALL: The g_SDSS stellar ellipticities
(1-b/a) for each
individual detector. This plot is sensitive changes in individual detectors.
Fig. 3 ellip_rSDSS_RMS: The rms of the g_SDSS stellar ellipticities
averaged over all 32 detectors.
OmegaCAM detector plane layout (detector_ID locations):
![click to enlarge OmegaCAM detector layout](/qc/OMEGACAM/reports/images/ocam_field_geometry_for_HC.png)
General information
Click on any of the plots to see a close-up version.
The latest date is indicated on top of the plot.
If configured,
- data points belonging to the latest date are specially marked
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
