1 |
| QC1DB |
MEDIAN |
0.0423 |
ADU |
VAL | 0.,0.07 |
11 |
qc_fpn |
this |
last_yr |
all
|
fixed-pattern noise averaged over all 32 detectors (ADU) |
2 |
| QC1DB |
MEDIAN |
0.0483 |
ADU |
none | |
352 |
qc_fpn |
this |
last_yr |
all
|
fixed-pattern noise for each individual detector (ADU) |
3 |
■ | LOCAL |
none |
|
none |
none | |
352 |
det_id |
n/a |
score per detector: GREEN = within the thresholds |
3 |
■ | LOCAL |
none |
|
none |
none | |
0 |
det_id |
n/a |
score per detector: RED = beyond the thresholds |
|
*Data sources: QC1DB: QC1 database; LOCAL: local data source
|
Plot 1 scores: not implemented
| data source: | omegacam_detlin (QC1 database) |
dataset: | qc_fpn | |
median: | 0.0423 | ADU |
fixed thresholds: | 0.0...0.07 | ADU |
N_data plotted: | 11 |
[click plot for closeup] |
Plot 2 scores: not implemented
| data source: | omegacam_detlin (QC1 database) |
dataset: | qc_fpn | |
median: | 0.0483 | ADU |
thresholds: | none | |
N_data plotted: | 352 |
[click plot for closeup] |
Plot 3 scores: not implemented
| data source: | local data source
|
dataset: (numbers below apply to this dataset) | det_id | ■ |
average: | none |
thresholds: | none |
N_data plotted: | 352 |
[click plot for closeup] |
This plot

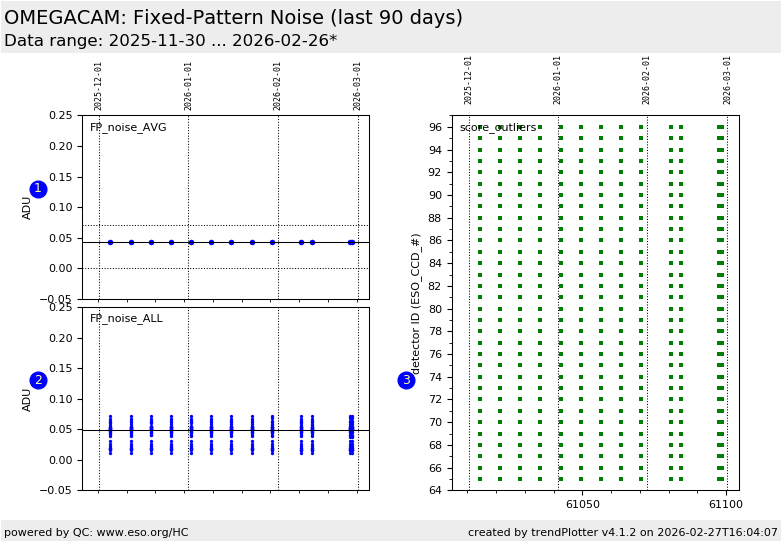

Trending plots for the detector linearity (fixed-pattern noise).
QC parameters are derived from each of 32 detectors of OmegaCAM dome flat frames.
DB Name: omegacam_detlin
Fits header: QC.FPN
QC1 DB: qc_fpn
Description:
The normalized fixed-pattern noise as measured in the pipeline product DET_LIN_INFO
Setup:
BIN.X / BIN.Y / READ.MODE / READ.SPEED = 1/1/normal/normal
These Health Check plots describe:
Fig. 1 non-linearity_AVG: The effective non-linearity
correction averaged over all 32 detectors.
This plot is sensitive to any changes common to all detectors.
Fig. 2 non-linearity_ALL: The effective non-linearity
correction for each individual detector. This plot is sensitive changes in individual
detectors.
Fig. 3 flux_level_AVG: The flux level at which the
effective non-linearity correction is applied averaged over all 32
detectors (ADU).
Fig. 4 score_outliers: Scores of the effective
non-linearity correction as measured for each of the 32 detectors.
Green = within the defined thresholds.
Red = beyond the defined thresholds.
OmegaCAM detector plane layout (detector_ID locations):
![click to enlarge OmegaCAM detector layout](/qc/OMEGACAM/reports/images/ocam_field_geometry_for_HC.png)
General information
Click on any of the plots to see a close-up version.
The latest date is indicated on top of the plot.
If configured,
- data points belonging to the latest date are specially marked
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
