KMOS trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-11-23T19:02:58 (UT)
  | now: 2024-11-24T09:14:44 (UT) muc01 QC pipeline: kmos-4.0.3 (installed 2022-03-28)
same group: IZ_xpos YJ_xpos H_xpos HK_xpos K_xpos   Temp IZ_vs_T YJ_vs_T H_vs_T HK_vs_T K_vs_T
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
KMOS news:
Report news:
DATE*: [?] 2024-11-17
no data | NLT 		2024-11-18
no data | NLT 		2024-11-19
report | NLT 		2024-11-20
report | NLT 		2024-11-21
report | NLT 		2024-11-22
report | NLT 		2024-11-23
report | NLT
r...
Raw CAL displays:
no CAL raw files no CAL raw files no CAL raw files raw raw raw raw
P...
CAL product quality:
no CAL products no CAL products no CAL products products products products products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?] 		*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB MEDIAN 44.4 pix VAL42.5,44.5 26 slit_edge_x_0 this | last_yr | all x position of leftmost slitlet, 0 deg rotator angle, IZ band, detector 1
2 •QC1DB MEDIAN 23.8 pix VAL25.0,29.0 26 slit_edge_x_0 this | last_yr | all x position of leftmost slitlet, 0 deg rotator angle, IZ band, detector 2
3 •QC1DB MEDIAN 19.4 pix VAL18.0,22.0 26 slit_edge_x_0 this | last_yr | all x position of leftmost slitlet, 0 deg rotator angle, IZ band, detector 3
4 •QC1DB none   pix none  26 slit_edge_x_1 this | last_yr | all x position of leftmost slitlet, all rotator angles, IZ band, detector 1
4 •QC1DB none   pix none  26 slit_edge_x_2 this | last_yr | all x position of leftmost slitlet, all rotator angles, IZ band, detector 1
4 •QC1DB none   pix none  26 slit_edge_x_3 this | last_yr | all x position of leftmost slitlet, all rotator angles, IZ band, detector 1
4 •QC1DB none   pix none  26 slit_edge_x_4 this | last_yr | all x position of leftmost slitlet, all rotator angles, IZ band, detector 1
4 •QC1DB none   pix none  26 slit_edge_x_5 this | last_yr | all x position of leftmost slitlet, all rotator angles, IZ band, detector 1
4 •QC1DB none   pix none  26 slit_edge_x_6 this | last_yr | all x position of leftmost slitlet, all rotator angles, IZ band, detector 1
5 •QC1DB none   pix none  24 slit_edge_x_1 this | last_yr | all x position of leftmost slitlet, all rotator angles, IZ band, detector 2
5 •QC1DB none   pix none  24 slit_edge_x_2 this | last_yr | all x position of leftmost slitlet, all rotator angles, IZ band, detector 2
5 •QC1DB none   pix none  24 slit_edge_x_3 this | last_yr | all x position of leftmost slitlet, all rotator angles, IZ band, detector 2
5 •QC1DB none   pix none  24 slit_edge_x_4 this | last_yr | all x position of leftmost slitlet, all rotator angles, IZ band, detector 2
5 •QC1DB none   pix none  24 slit_edge_x_5 this | last_yr | all x position of leftmost slitlet, all rotator angles, IZ band, detector 2
5 •QC1DB none   pix none  24 slit_edge_x_6 this | last_yr | all x position of leftmost slitlet, all rotator angles, IZ band, detector 2
6 •QC1DB none   pix none  26 slit_edge_x_1 this | last_yr | all x position of leftmost slitlet, all rotator angles, IZ band, detector 3
6 •QC1DB none   pix none  26 slit_edge_x_2 this | last_yr | all x position of leftmost slitlet, all rotator angles, IZ band, detector 3
6 •QC1DB none   pix none  26 slit_edge_x_3 this | last_yr | all x position of leftmost slitlet, all rotator angles, IZ band, detector 3
6 •QC1DB none   pix none  26 slit_edge_x_4 this | last_yr | all x position of leftmost slitlet, all rotator angles, IZ band, detector 3
6 •QC1DB none   pix none  8 slit_edge_x_5 this | last_yr | all x position of leftmost slitlet, all rotator angles, IZ band, detector 3
6 •QC1DB none   pix none  26 slit_edge_x_6 this | last_yr | all x position of leftmost slitlet, all rotator angles, IZ band, detector 3
*Data sources: QC1DB: QC1 database; LOCAL: local data source

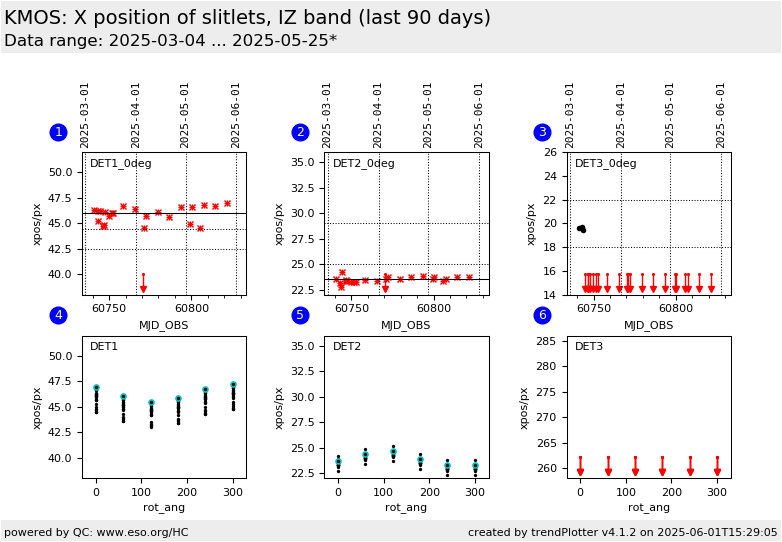

Plot 1
scores: 2|
data source:kmos_flat
(QC1 database)
dataset:slit_edge_x_0•
median:44.4pix
fixed thresholds:42.5...44.5pix
N_data plotted:26
[click plot for closeup]
Plot 2
scores: 2|
data source:kmos_flat
(QC1 database)
dataset:slit_edge_x_0•
median:23.8pix
fixed thresholds:25.0...29.0pix
N_data plotted:26
[click plot for closeup]
Plot 3
scores: 2|
data source:kmos_flat
(QC1 database)
dataset:slit_edge_x_0•
median:19.4pix
fixed thresholds:18.0...22.0pix
N_data plotted:26
[click plot for closeup]
Plot 4
scores: not implemented
data source:kmos_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)		slit_edge_x_1•
average:none
thresholds:none
N_data plotted:26
[click plot for closeup]
Plot 5
scores: not implemented
data source:kmos_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)		slit_edge_x_1•
average:none
thresholds:none
N_data plotted:24
[click plot for closeup]
Plot 6
scores: not implemented
data source:kmos_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)		slit_edge_x_1•
average:none
thresholds:none
N_data plotted:26
[click plot for closeup]
This plot

Average x position of left edge of leftmost slitlet on each detector.

The upper row shows the trending versus time for calibrations with 0 degree rotator angle. These values are scored. The lower row shows the dependency against rotator angle. The latest data points are marked; scoring is not applied.

General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
