ERIS trending system: HEALTH CHECK report

HELP

USERS-GUIDE

Last update: 2024-11-22T18:35:49 (UT)

| now: 2024-11-22T20:46:48 (UT)

muc04 QC pipeline: eris-1.6.3 (installed 2024-08-30)

same group:	linearity_coefficients	non_linearity	number_of_counts	gain/fpn
same group:

General news:	NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
ERIS news:
Report news:

DATE*: [?]

2024-11-15
report | NLT

2024-11-16
report | NLT

2024-11-17
report | NLT

2024-11-18
report | NLT

2024-11-19
report | NLT

2024-11-20
report | NLT

2024-11-21
report | NLT

r...

Raw CAL displays:

raw

P...

CAL product quality:

products

products

transfer

ngas

[?]

scores&comments |

*Date on this monitor changes at 21:00 UT

png:	Information and research:
- png file	- advanced studies: QC1 browser \| QC1 plotter

Plot
?

Symb
?

Source
*

Average ?

Thresholds ?

N_
data

QC1
parameter

Data
downloads

Remarks

method

value

unit

method

value

•

QC1DB

MEDIAN

1.01e+04

ADU

VAL

8460,12120

qc_detlin_count_max

this | last_yr | all

Maximum median value used in linearity slow readout

•

QC1DB

MEDIAN

453

ADU

VAL

210,751

qc_detlin_count_min

this | last_yr | all

Minimum median value used in linearity slow readout

•

QC1DB

MEDIAN

3.63e+04

ADU

VAL

28700,41400

qc_detlin_count_max

this | last_yr | all

Maximum median value used in linearity fast readout

•

QC1DB

MEDIAN

1.09e+03

ADU

VAL

896,1333

qc_detlin_count_min

this | last_yr | all

Minimum median value used in linearity fast readout

*Data sources: QC1DB: QC1 database; LOCAL: local data source

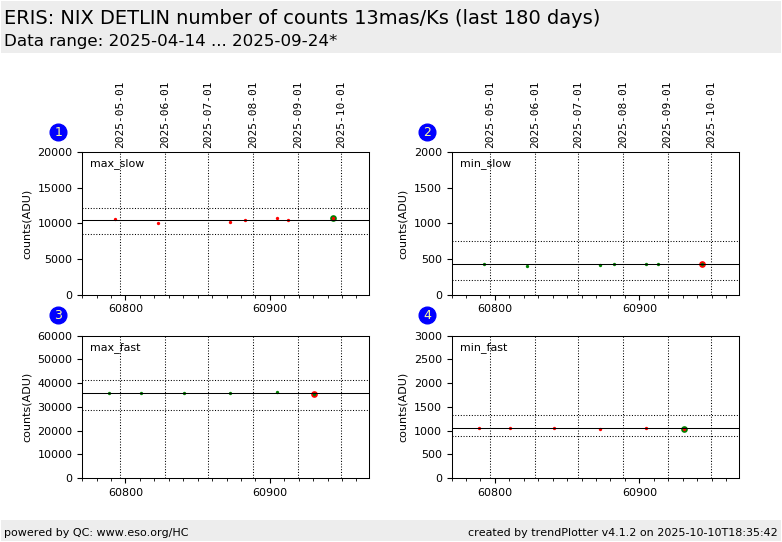

Plot 1 scores: 1\|
data source:	eris_nix_detlin (QC1 database)
dataset:	qc_detlin_count_max	•
median:	1.01e+04	ADU
fixed thresholds:	8460...12120	ADU
N_data plotted:	5
[click plot for closeup]

Plot 2 scores: 1\|
data source:	eris_nix_detlin (QC1 database)
dataset:	qc_detlin_count_min	•
median:	453	ADU
fixed thresholds:	210...751	ADU
N_data plotted:	5
[click plot for closeup]

Plot 3 scores: 1\|
data source:	eris_nix_detlin (QC1 database)
dataset:	qc_detlin_count_max	•
median:	3.63e+04	ADU
fixed thresholds:	28700...41400	ADU
N_data plotted:	5
[click plot for closeup]

Plot 4 scores: 1\|
data source:	eris_nix_detlin (QC1 database)
dataset:	qc_detlin_count_min	•
median:	1.09e+03	ADU
fixed thresholds:	896...1333	ADU
N_data plotted:	5
[click plot for closeup]

This plot

Non linearity coefficients and badpixels

General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

data points belonging to the latest date are specially marked
statistical averages are indicated by a solid line, and thresholds by broken lines
outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
"aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
you can download the data for each parameter set if the 'Data downloads' link shows up

Health Check monitor
