CRIRES trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-10-11T13:06:01 (UT)
  | now: 2024-11-13T22:32:49 (UT) muc03 QC pipeline: cr2re-1.4.10 (installed 2024-09-26)
same group: WAVE_cntwl WAVE_cntwl_YJHK WAVE_resol WAVE_resol_YJHK FPET_UNE_flux
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
CRIRES news:
Report news:
DATE*: [?] 2024-11-06
report | NLT
2024-11-07
report | NLT
2024-11-08
report | NLT
2024-11-09
report | NLT
2024-11-10
report | NLT
2024-11-11
report | NLT
2024-11-12
report | NLT
2024-11-13
no data | NLT
r...
Raw CAL displays:
no CAL raw files no CAL raw files no CAL raw files raw raw raw raw no CAL raw files
P...
CAL product quality:
no CAL products no CAL products no CAL products products products products products no CAL products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 3.01e+06 none none  15 fpi_flux this | last_yr | all FPET_flux, wlen_id=J1228, ins_slit1_width=0.2
2 QC1DB MEDIAN 0.763 none none  15 fpi_contrast this | last_yr | all FPET_contrast, wlen_id=J1228, ins_slit1_width=0.2
3 QC1DB MEDIAN 0.154 none none  15 fpi_separation this | last_yr | all FPET_separation, wlen_id=J1228, ins_slit1_width=0.2
4 QC1DB MEDIAN 2.01e+03 none none  77 une_flux this | last_yr | all UNE_flux, wlen_id=J1228, ins_slit1_width=0.2
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: no current data
data source:criresp_wave
(QC1 database)
dataset:fpi_flux
median:3.01e+06none
thresholds:none
N_data plotted:15
[click plot for closeup]
Plot 2
scores: no current data
data source:criresp_wave
(QC1 database)
dataset:fpi_contrast
median:0.763none
thresholds:none
N_data plotted:15
[click plot for closeup]
Plot 3
scores: no current data
data source:criresp_wave
(QC1 database)
dataset:fpi_separation
median:0.154none
thresholds:none
N_data plotted:15
[click plot for closeup]
Plot 4
scores: no current data
data source:criresp_wave
(QC1 database)
dataset:une_flux
median:2.01e+03none
thresholds:none
N_data plotted:77
[click plot for closeup]
This plot

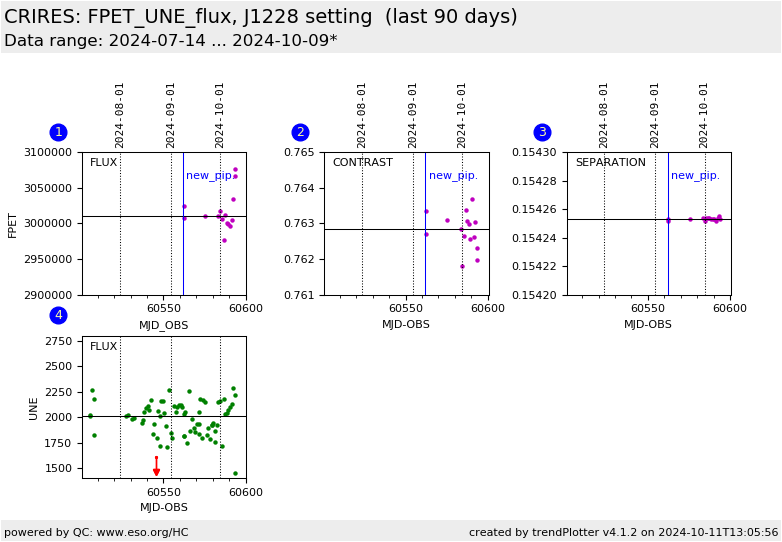

Trending plot for the WAVE UNE/FPET flux, contrast and separation. Only data taken in INS.WLEN.ID=J1228, INS.SLIT1.WIDTH=0.2 arcsec are selected. The upper plots show the FPET flux, contrast and separation determined from the WAVE FPET calibrations and the lower plot shows the UNE flux from the WAVE UNE calibrations.

The FPET_flux is the mean of the peak flux in the extracted 1D spectrum for each fringe of the central order on detector 1.

The FPET_contrast is the mean of the (Imax-Imin)/(Imax+Imin), where the Imax and Imin are peak and through flux in the extracted 1D spectrum for each fringe of the central order on detector 1.

The FPI_separation is calculated as follows: identify the first and last fully visible fringe on the central order of detector 1 and measure their centroid in wavelength space; Count the number, N, of fringes separating them, then calculate the wavelength interval as (wlen_end_fringe - wlen_start_fringe)/N


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
