CRIRES trending system: HISTORY report
HELP USERS-GUIDE MORE
Last update: 2014-04-13T03:45:53 (UT)
same group: xcorr ThAr N2O DISP RESOL   AVG
close window history: 2007 2008 2009 2010 2011 2012 2013   2014   HEALTH FULL
  ... ... ... ... ... ...
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 1083.787 nm OFF± .01 101 lambda_cent this | last_yr | all center wavelength on chip 2, WREF=1090.4
2 QC1DB MEDIAN 1090.468 nm OFF± .01 101 lambda_cent this | last_yr | all center wavelength on chip 3, WREF=1090.4
*Data sources: QC1DB: QC1 database; LOCAL: local text file

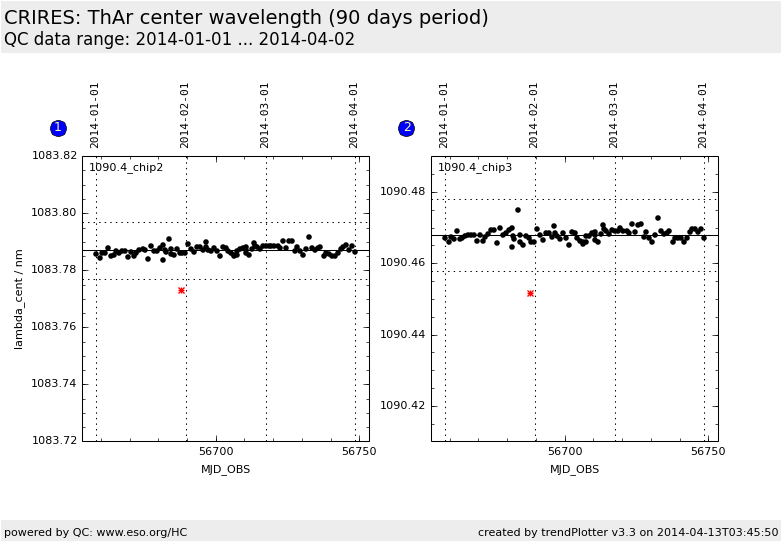

Plot 1
data source:crires_wave
(QC1 database)
dataset:lambda_cent
median:1083.787nm
rel. thresholds: 1083.776987...1083.796987nm
N_data plotted:101
[click on plot for closeup]
Plot 2
data source:crires_wave
(QC1 database)
dataset:lambda_cent
median:1090.468nm
rel. thresholds: 1090.457896...1090.477896nm
N_data plotted:101
[click on plot for closeup]
This plot

Wavelength calibration: trending of central wavelength.

The central wavelength is monitored for the two daily health check settings with reference wavelengths (on chip 3) of 1090.4nm using ThAr lamp and 4092.9nm using N2O absorption cell. This plot shows the results with ThAr.

The center wavelength should be stable on each chip. A shift of 0.01 nm corresponds to a shift of 2 pixels. The variation of the central wavelength should be less than about 5 pixels. Chips 1 and 4 are not fully exposed due to the setting of the intermediate slit. Pipeline results for these chips are not plotted.


General information

Click on any of the plots to see a close-up version. The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
