CRIRES trending system: HISTORY report
HELP USERS-GUIDE MORE
Last update: 2014-01-12T03:46:15 (UT)
same group: xcorr ThAr N2O DISP RESOL   AVG
close window history: 2008 2009 2010 2011 2012   2013   2014   HEALTH
  ... ... ... ...
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB MEDIAN   10E-3nm/pix none  0 dispersion this | last_yr | all dispersion, chip 1, WREF=1090.4
2 •QC1DB MEDIAN 5.243 10E-3nm/pix VAL5.16,5.26 99 dispersion this | last_yr | all dispersion, chip 2, WREF=1090.4
3 •QC1DB MEDIAN 5.051 10E-3nm/pix VAL5.02,5.08 98 dispersion this | last_yr | all dispersion, chip 3, WREF=1090.4
4 •QC1DB MEDIAN   10E-3nm/pix none  0 dispersion this | last_yr | all dispersion, chip 4, WREF=1090.4
5 •QC1DB MEDIAN 19.352 10E-3nm/pix VAL19.30,19.37 86 dispersion this | last_yr | all dispersion, chip 1, WREF=4092.9
6 •QC1DB MEDIAN 18.556 10E-3nm/pix VAL18.52,18.575 86 dispersion this | last_yr | all dispersion, chip 2, WREF=4092.9
7 •QC1DB MEDIAN 17.718 10E-3nm/pix VAL17.69,17.74 86 dispersion this | last_yr | all dispersion, chip 3, WREF=4092.9
8 •QC1DB MEDIAN 16.841 10E-3nm/pix VAL16.81,16.865 86 dispersion this | last_yr | all dispersion, chip 4, WREF=4092.9
*Data sources: QC1DB: QC1 database; LOCAL: local text file
Plot 1
data source:crires_wave
(QC1 database)
dataset:dispersion•
median:no data10E-3nm/pix
thresholds:none
N_data plotted:0
[click on plot for closeup]
Plot 2
data source:crires_wave
(QC1 database)
dataset:dispersion•
median:5.24310E-3nm/pix
fixed thresholds:5.16...5.2610E-3nm/pix
N_data plotted:99
[click on plot for closeup]
Plot 3
data source:crires_wave
(QC1 database)
dataset:dispersion•
median:5.05110E-3nm/pix
fixed thresholds:5.02...5.0810E-3nm/pix
N_data plotted:98
[click on plot for closeup]
Plot 4
data source:crires_wave
(QC1 database)
dataset:dispersion•
median:no data10E-3nm/pix
thresholds:none
N_data plotted:0
[click on plot for closeup]
Plot 5
data source:crires_wave
(QC1 database)
dataset:dispersion•
median:19.35210E-3nm/pix
fixed thresholds:19.3...19.3710E-3nm/pix
N_data plotted:86
[click on plot for closeup]
Plot 6
data source:crires_wave
(QC1 database)
dataset:dispersion•
median:18.55610E-3nm/pix
fixed thresholds:18.52...18.57510E-3nm/pix
N_data plotted:86
[click on plot for closeup]
Plot 7
data source:crires_wave
(QC1 database)
dataset:dispersion•
median:17.71810E-3nm/pix
fixed thresholds:17.69...17.7410E-3nm/pix
N_data plotted:86
[click on plot for closeup]
Plot 8
data source:crires_wave
(QC1 database)
dataset:dispersion•
median:16.84110E-3nm/pix
fixed thresholds:16.81...16.86510E-3nm/pix
N_data plotted:86
[click on plot for closeup]
This plot

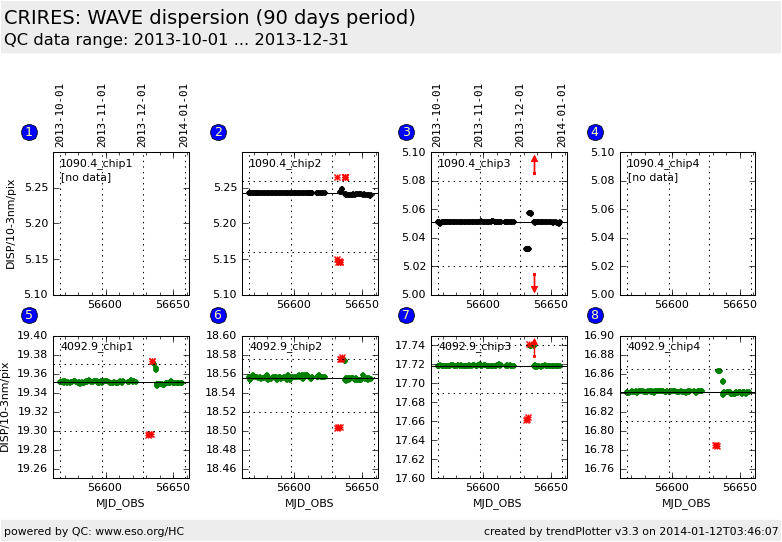

Wavelength calibration: trending of dispersion (in 10E-3 nm/pixel).

Dispersion is monitored for the two daily health check settings with reference wavelength (on chip 3) of 1090.4nm using ThAr lamp and 4092.9nm using N2O absorption cell.

Chips 1 and 4 of the 1090.4 nm setting suffer from vignetting. Pipeline results are arbitrary and are not plotted.

Pipeline processing in Garching applies dark subtraction and flat-fielding. This can result in differences for the dispersion. Paranal results for some detectors are, therefore, omitted.

General information

Click on any of the plots to see a close-up version. The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
