CRIRES trending system: HISTORY plot
Last update: 2008-10-12T03:36:00 (UT)
same group: xcorr ThAr N2O DISP RESOL   AVG
close window history: 2008   2009   2010 2011 2012 2013 2014   HEALTH
  ... ... ... ... ...
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
[info]		 Symbol
[info]		 Source* Average [info] Thresholds [info] N_data Data downloads Remarks
method value unit method value
1 •QC1DB MEDIAN   NONE 3SIG± 0.00000 0 this | last_yr | all dispersion, chip 1, WREF=1090.4
2 •QC1DB MEDIAN 5.24500 NONE 3SIG± 0.00735 104 this | last_yr | all dispersion, chip 2, WREF=1090.4
3 •QC1DB MEDIAN 5.04800 NONE 3SIG± 0.03144 104 this | last_yr | all dispersion, chip 3, WREF=1090.4
4 •QC1DB MEDIAN   NONE 3SIG± 0.00000 0 this | last_yr | all dispersion, chip 4, WREF=1090.4
5 •QC1DB MEDIAN 19.35364 NONE 3SIG± 0.00233 84 this | last_yr | all dispersion, chip 1, WREF=4092.9
6 •QC1DB MEDIAN 18.56200 NONE 3SIG± 0.00169 84 this | last_yr | all dispersion, chip 2, WREF=4092.9
7 •QC1DB MEDIAN 17.73200 NONE 3SIG± 0.00844 84 this | last_yr | all dispersion, chip 3, WREF=4092.9
8 •QC1DB MEDIAN 16.85100 NONE 3SIG± 0.01686 84 this | last_yr | all dispersion, chip 4, WREF=4092.9
*Data sources: QC1DB: QC1 database; LOCAL: local text file
This plot

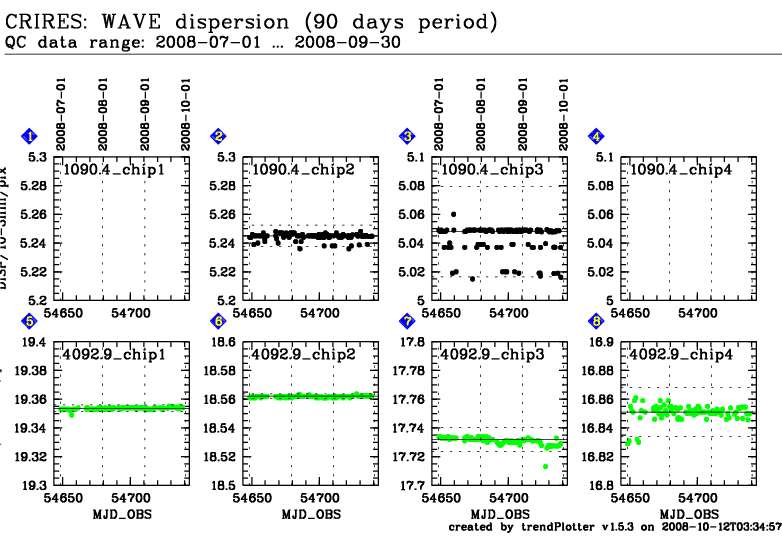

Wavelength calibration: trending of dispersion (in 10E-3 nm/pixel).

Dispersion is monitored for the two daily health check settings with reference wavelength (on chip 3) of 1090.4nm using ThAr lamp and 4092.9nm using N2O absorption cell.

Chips 1 and 4 of the 1090.4 nm setting suffer from vignetting. Pipeline results are arbitrary and are not plotted.

Pipeline processing in Garching applies dark subtraction and flat-fielding. This can result in differences for the dispersion. Paranal results for some detectors are, therefore, omitted.

General information

Click on any of the plots to see a close-up version. The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
