Echelle Spectrum of QSO HE2217-2818

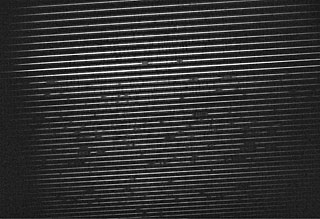

This UVES echelle spectrum QSO HE2217-2818 (U-magnitude = 16.5) is recorded in different orders (the individual horizontal lines) and altogether covers the wavelength interval between 330 - 450 nm (from the bottom to the top). It illustrates the excellent capability of UVES to work in the UV-band on even faint targets. Simultaneously with this observation, UVES also recorded the adjacent spectral region 465 - 660 nm in its other channel. The broad Lyman-alpha emission from ionized hydrogen associated with the powerful energy source of the QSO is seen in the upper half of the spectrum at wavelength 413 nm. At shorter wavelengths, the dark regions in the spectrum are Lyman-alpha absorption lines from intervening, neutral hydrogen gas located along the line-of-sight at different redshifts (the so-called Lyman-alpha forest) in the redshift interval z = 1.7 - 2.4. Note that since this exposure was done with the nearly Full Moon above the horizon, an underlying, faint absorption-line spectrum of reflected sunlight is also visible.

Credit:

ESO

About the Image

Id:eso9944d
Type:Observation
Release date:5 October 1999
Related releases:eso9944
Size:3000 x 2049 px

About the Object

Name:QSO HE2217-2818, Spectrum
Type:• Early Universe : Galaxy : Activity : AGN : Quasar
• X - Cosmology
• X - Quasars & Black Holes
Distance:z=2.4 (redshift)
