QC documentation system: QC procedure midi_frg_sp_disp_display.prg for MIDI

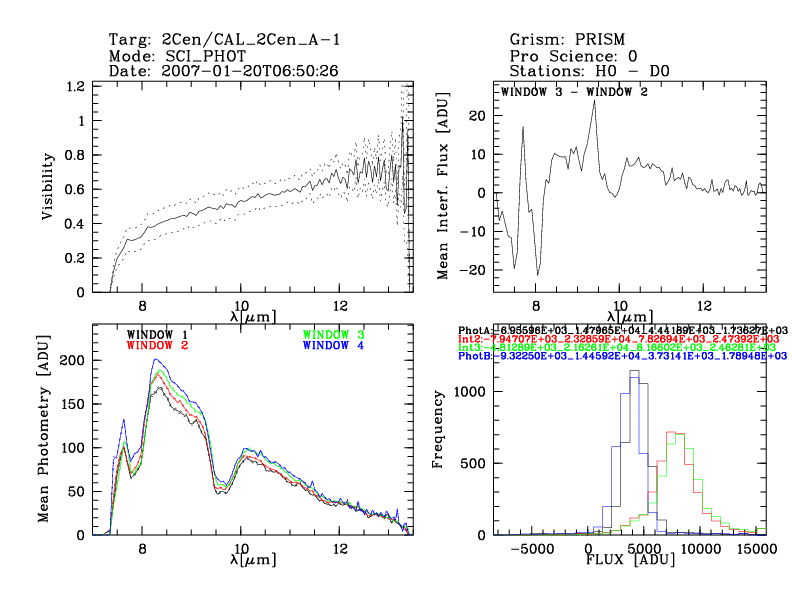

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS2   FORS1 GIRAFFE UVES XSHOOTER   ISAAC VIMOS VISIR   HAWKI NACO SINFONI   AMBER MIDI   OMEGACAM VIRCAM [best viewing with style sheets and javascript enabled] run_data_quality_processQC.sh extractVis_dispersed.csh extractTF_dispersed.csh extractbinned_dispersed.csh plot_data_dispersed.csh midi_frg_hs_disp_display.prg midi_frg_sp_disp_display.prg   bottom  plots   |   contact NAME midi_frg_sp_disp_display.prg VERSION 1.0 SYNTAX MIDAS CALL processQC -a abname or . $DFO_PROC_DIR/run_data_quality_processQC.sh $RAW_TYPE $DATE $PF $AB INSTRUMENT MIDI RAWTYPE CAL_SP_FRT SCI_SP_FRT PURPOSE called within run_data_quality_processQC.sh to create plots PROCINPUT under dfs_products/RAW_TYPE QC1TABLE trending | table in QC1 database: none TRENDPLOT trending | HealthCheck plot associated to this procedure: none QC1PAGE trending | associated documentation: none QC1PLOTS top plot_SCI_PHOT.gif Main QC1 plot for SCI_PHOT mode QC1PARAM ALGORITHM The Visibility and TF are plotted for the full spectrum (170 channels for PRISM and 260 for GRISM) CERTIF (guidelines for acceptance/rejection): The Visibility should be smooth accross the spectrum for a calibrator and larger than .4. If is a science, larger than .075 The histogramm of the flux should not have any values bellow 0 The fluxes should be equivalent for Interferometry and Photometry COMMENTS top [2012-06-20T09:36:43]         created by qcDocu v1.1.2, a tqs tool
