| NAME | extractVis_dispersed.csh | |||||||||||||||||||||||
| VERSION | 1.0 -- 12-06 implement docu | |||||||||||||||||||||||
| SYNTAX | SHELL | |||||||||||||||||||||||
| CALL |
processQC -a abname or . $DFO_PROC_DIR/run_data_quality_processQC.csh $RAW_TYPE $DATE $PF . $DFO_PROC_DIR/extractVis_dispersed.csh $MODE $RT $DATE $PF | |||||||||||||||||||||||
| INSTRUMENT | MIDI | |||||||||||||||||||||||
| RAWTYPE |
CAL_HS_FRT CAL_SP_FRT SCI_HS_FRT SCI_SP_FRT | |||||||||||||||||||||||
| PURPOSE | extracting Visibility values for further plotting with plot_data_dispersed.csh | |||||||||||||||||||||||
| PROCINPUT | products under CAL/SCI_HS/SP_FRT | |||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: midi_calibrators | midi_science_fringe | |||||||||||||||||||||||
| TRENDPLOT | trending | HealthCheck plot associated to this procedure: none | |||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: fullTF_qc1.html | calibrators_obs.html | |||||||||||||||||||||||
| QC1PLOTS top |

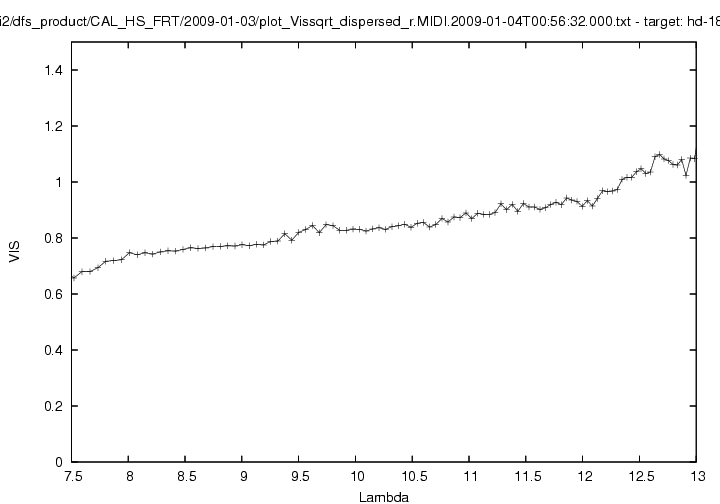

product_Vis.gif dispersed Visibility | |||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written into QC1 table: QC1db names: midi_calibrators FITS key names: QC.UNCALV1 to 260: Uncalibrated visibilities for channels 1 to 171 (PRISM) and 1 to 261 (GRISM) FITS key names: QC.DUNCALV1 to 260: error on the Uncalibrated visibilities for channels 1 to 171 (PRISM) and 1 to 261 (GRISM) FITS key names: QC.CHAN.PROCESSED | QC.CHAN.REJECTED : number of spectral channels processed FITS key names: QC.UNCAL BINNED1-5: Uncalibrated Visibilities in 5 defined bins (8.64, 9, 10.46, 11.79, 12.80 microns, bin: 5 channels) QC1 params created by pipeline: all QC1 params created by this procedure: dispersed visibilities are extracted for further plotting | |||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: The value of the uncalibrated Visibility is given in the fits file for all the channels (171 for PRISM and 261 for GRISM). These values are used for plotting the full dispersed Visibility. The value of the uncalibrated Visibility is given in 5 different bins : 8.64microns, 9 microns, 10.46 microns, 11.79 microns, 12.8 microns and are used as QC parameters to accept or reject the product. | |||||||||||||||||||||||
| CERTIF |
The Visibility should be smooth accross the spectrum for a calibrator and larger than .4. If is a science, larger than .075 | |||||||||||||||||||||||
